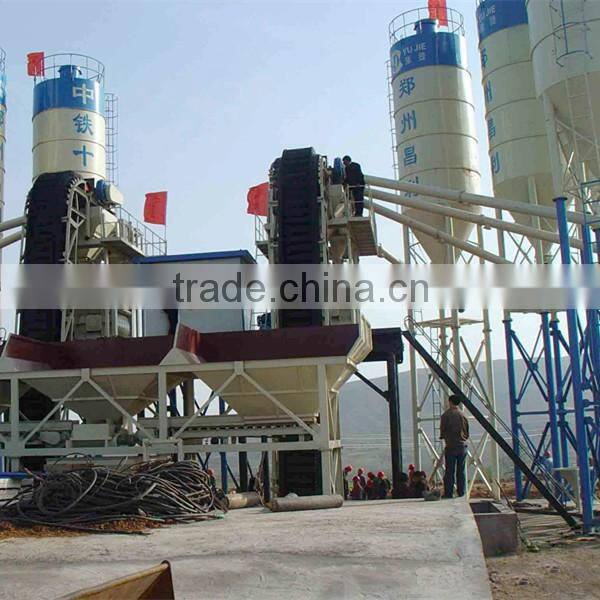

Belt Type Concrete Batching Plant, HZS60 Beton Plant in Turkey

FOB Price

US$ 1 - 50,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Electric
Place of Origin	Henan, China	Brand Name	YUJIE
Model Number	HZS60	Power(W)	37KW
Dimension(LWH)	301019.4m	Weight	Configuration
Certification	CE ISO GHOST	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

belt type concrete batching plant, HZS60 beton plant in turkey

Product Description

Technical Parameter
Item		Unit	Parameter
Max. Productivity		m3/h	60
Nominal Capacity of Mixer		m3	1
Aggregate Storage Capacity		m3	3×12
Rated Delivery Volume of Screw Conveyor		t/h	35
Capacity of Cement Cabin		t	2×100
Mixing Motor Power		kw	37
Lifting Motor Power		kw	15
Power of Machine		kw	100
Weight of Machine		t	50
Discharge Height		m	3.8

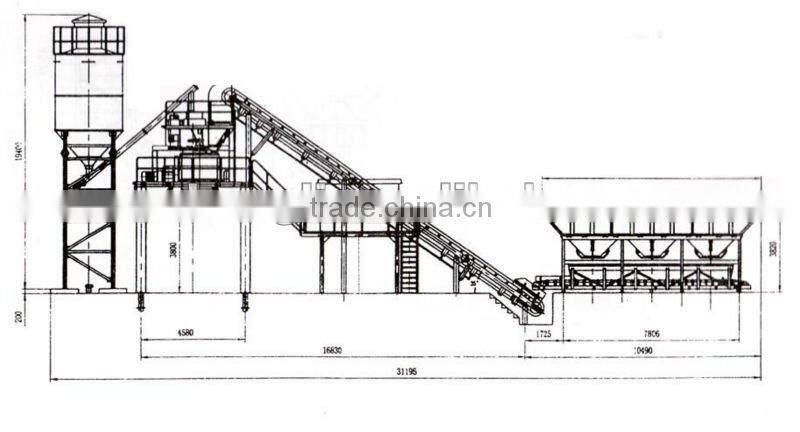

Overall Dimension ( L×W×H)		m	30×10×19.4
Max. Weights	Aggregate	kg	4000
	Cement	kg	600
	Water	kg	250
	Ash		---
	Additive	kg	250
Measuring Accuracy	Aggregate	%	±2
	Powder	%	±1
	Water	%	±1
	Additive	%	±1

More photos

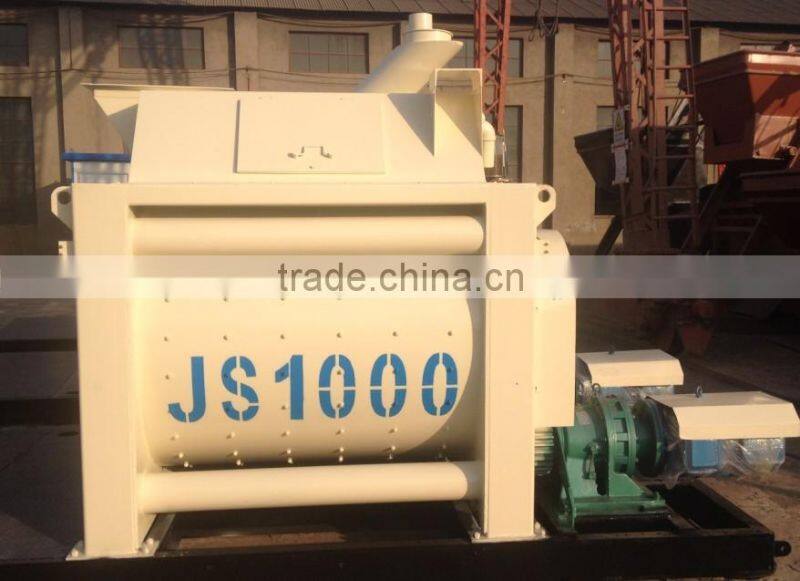

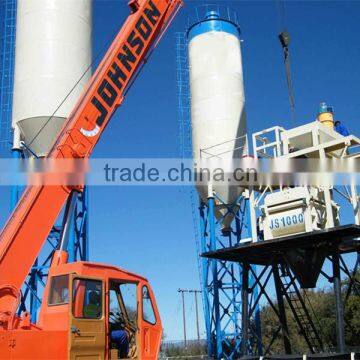

Mixing system

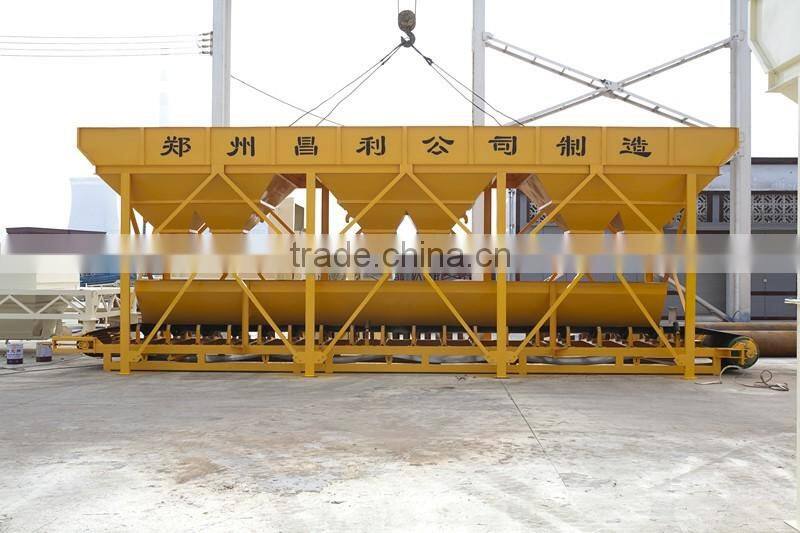

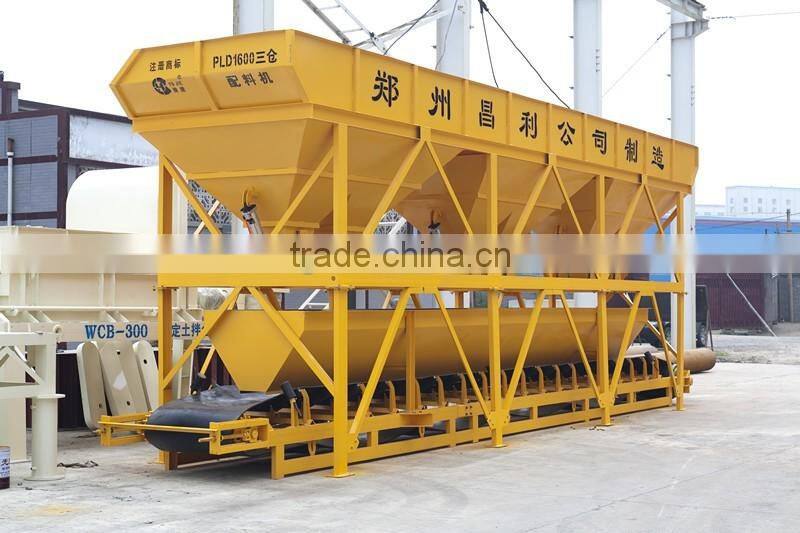

Batching machine

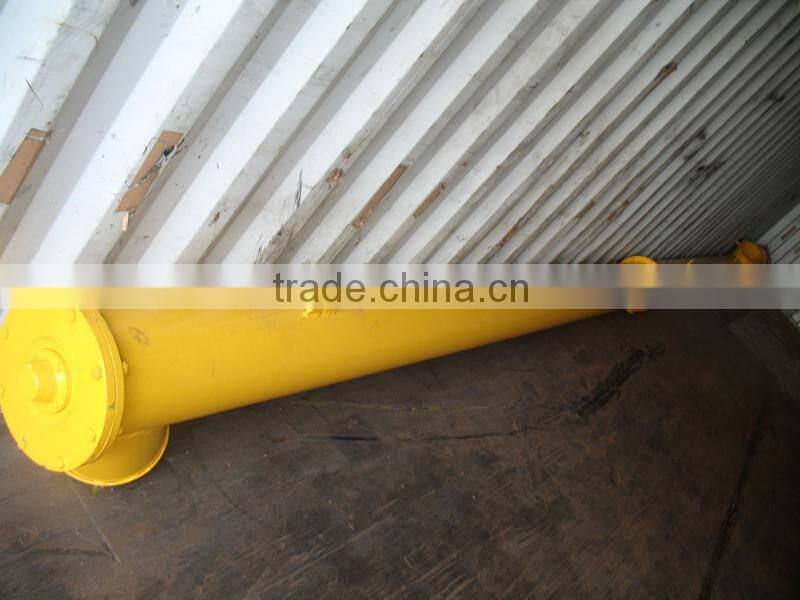

Cement silo and screw conveyor

Packaging & Shipping

Our Services
