Mini Cement Plsnt for Sale,35m3/h Concrete Plant in Pakistan With High Quality
- qingdao
- T/T Credit Card
You May Like
-
Ready Mix Concrete Plant for Sale,HZS50 Hopper Lift Concrete Batch Plant
-
CE Certificated HZS25 -HZS240stationary Concrete Batching Plant Cememt Mixing Machine With Capacity From 25 M3/h to 420m3/h
-
Fixed Concrete Batching Plant 90m3/h for Sale
-
Plant Cement Concrete Batching Plant HZS50, Skip Hoist Concrete Batch Plant in Malaysia
-
Small Concrete Batching Plant, Cheaper Cement Mixing Plant in India
-
CE,BV HZS25 -HZS240 Mobile/stationary Concrete Batching Plant Cememt Mixing Machine With Capacity From 25 M3/h to 420m3/h
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Hainan, China | Brand Name | YUJIE | |
| Model Number | HZS35 | Power(W) | 60.4KW | |
| Dimension(L*W*H) | 19.8m*8.2m*8.5m | Weight | Configuration | |
| Certification | ISO9001:2008 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
mini cement plsnt for sale,35m3/h concrete plant in Pakistan with high quality
I.Brief itroduction of concrete mixing plant manufacturer The concrete mixing plant is consisted of a mixing console, material weighing system, material handling systems, material storage system and control system and other ancillary facilities. Floor aggregate metering station aggregate measurement, reducing the four intermediate links, and is the measurement of the vertical blanking, saving the measurement time, thus greatly improving the production efficiency, the same types of circumstances, the mixing efficiency is higher than batching plant production efficiency by one third.
II. Application of concrete mixing plant manufacturer
Available for many applications, this stationary concrete batching plant is widely used for water conservancy, electric power, railroad, road, tunnel, the arch of bridge, harbor-wharf and the national defense-project etc.
2. The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts.
3. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability.
4. The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity;
5. Decelerating system uses high-speed, synchronized, and closed planetary decelerators. 6. The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.
IV.Main parameters of HZS35 concrete mixing plant manufacturer
Model | HZS35 |
Rated Productivity | 35m3/h |
Main Mixer | JS750 |
Power of Main Mixer | 30KW |
Max. Aggregate Diameter | 80mm |
Delivery Capacity | 0.75m3 |
Feeding Mode | Lift Hopper |
Batching Unit | PLD1200 |
Measuring Scope & Accuracy of Aggregate | 2200Kg ±2% |
Measuring Scope & Accuracy of Cement | 450Kg ±1% |
Measuring Scope & Accuracy of Water (by flow meter) | 200Kg ±1% |
Additive Weighing Precision | 30Kg ±1% |
Discharging Height | 3.8 m |
Outline Dimension(at work) (L X W X H) | 19.8m×8.2m×8.5m |
General Power | 60.0KW |
Total Weight | 15000Kg |
Control Mode | Semi-automatic batching, manual operation |
Cement Silos(for customers’ choice) | According to customers’ demands, 50T or 100T cement silos can be used. |
Screw Conveyor(for customer’s choice) | Each cement silo needs one φ219 screw conveyor. |
V. concrete mixing plant manufacturer
After -sale service: Installation and commissoining supply; spareparts supply;
VI.Quality certificate:1.IS09001-2000: Quality control system: The design, the production, the management process are certified 2.SGS 3.IAF
HZS35 concrete mixing plant manufacturer concrete batching plant price,dry concrete batching plants , dry mix concrete batch plant , italian concrete batching plant ,precast concrete batching plant
HZS35 concrete batching plant
HZS35 beton mixing plant
HZS240beton batching plant
HZS50 skip type concrete mixing plant
HZS60 simple concrete mixing plant
HZS75 stationary concrete mixing plant
HZS90concrete mixer
HZS120 wet concrete mixing plant
HZS180wet concrete mixer

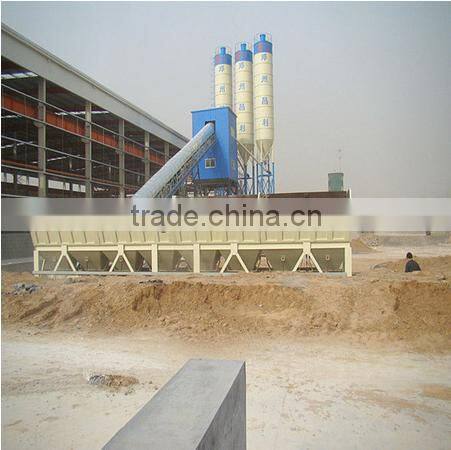

Pictuires of HZS35(35m3/h) concrete mixing plant manufacturer
Concrete mixer JS750 of HZS35 concrete mixing plant manufacturer
JS750 concrete mixer for the concrete mixing plant manufacturer
PLD1200 Concrete Batching Machine of HZS35 concrete mixing plant manufacturer
Screw conveyor of HZS35 concrete mixing plant manufacturer
50T cement silo for HZS35 concrete mixing plant manufacturer for your choice
100T ,150T,200T,300T cement silo for concrete mixing plant manufacturer
Factroy view for concrete mixing plant manufacturer
