Home > Products > Concrete Mixing Plant > CE Certified HZS35 Concrete Batching Plant on Sale Mini Portable Concrete Batch Plants

CE Certified HZS35 Concrete Batching Plant on Sale Mini Portable Concrete Batch Plants

FOB Price

US$ 1 - 35,000 / Set

1 Set(Min. Order)

Port China main port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Electric
Place of Origin	Henan, China	Brand Name	YUJIE
Model Number	YHZS35	Power(W)	60kw
Dimension(LWH)	11m4m20 m	Weight	Configuration
Certification	CE ISO TUV SASO	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

CE Certified HZS35 Concrete Batching Plant on sale Mini Portable Concrete Batch Plants

Product Description

How to Contact us

Ms.Crystal Wang

whatsapp:0086-17839909811

Skype:Crystalwang51

or scan our OR code

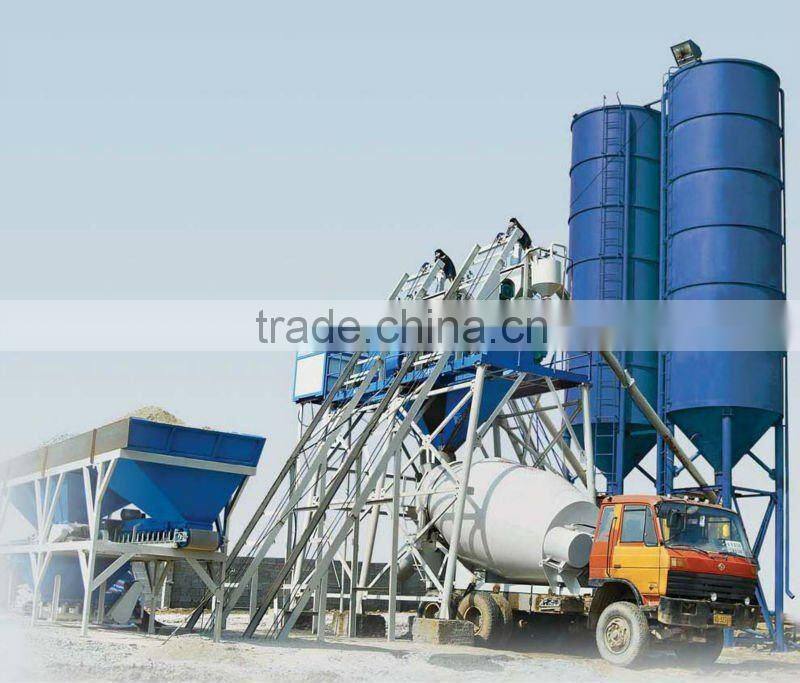

1. Introduction

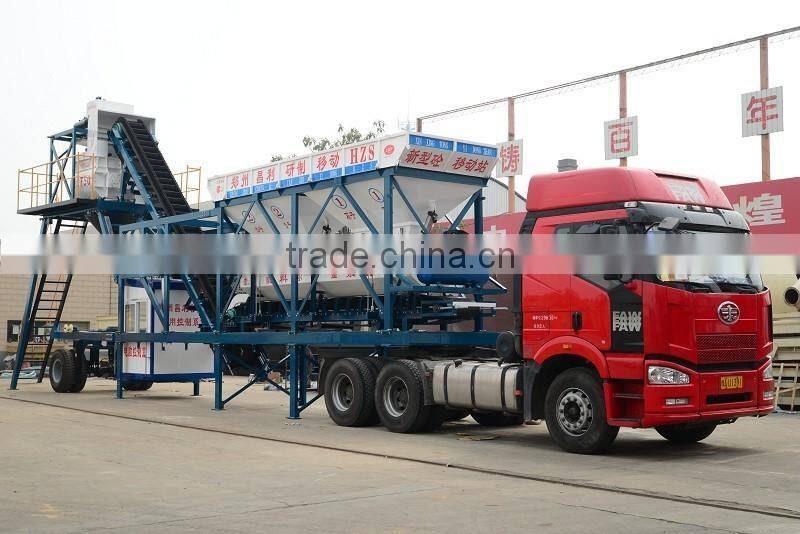

This series of concrete batching plant adopts modular structure, it is specially designed for customers who need to change the construction site frequently. It is simple in installation, compact in structure, place saving and high automation. It is mainly used for bridge, building, water conservancy project, power and other infrastructure projects

2:Characters of 35m3/h Concrete Plant

HZS25 concrete mixing plant

1. Compact designed, able to brought to job site quickly, and easy to operate.

2. With JS500 concrete mixer, mixes 30m³/hr.

3. PLC control system, process of adjust materials will be checked over anytime.

3.Main Technical Parameters of 35m3/h Concrete Plant

Model	HZS35
Rated Productivity	35m3/h
Main Mixer	JS750
Power of Main Mixer	30KW
Max. Aggregate Diameter	80mm
Delivery Capacity	0.75m3
Feeding Mode	Lift Hopper
Batching Unit	PLD1200
Measuring Scope & Accuracy of Aggregate	2200Kg ±2%
Measuring Scope & Accuracy of Cement	450Kg ±1%
Measuring Scope & Accuracy of Water (by flow meter)	200Kg ±1%
Control Mode	Full Automatic,Semi-automatic batching, manual operation

5.Photo of main machines in HZS35 Concrete Plant

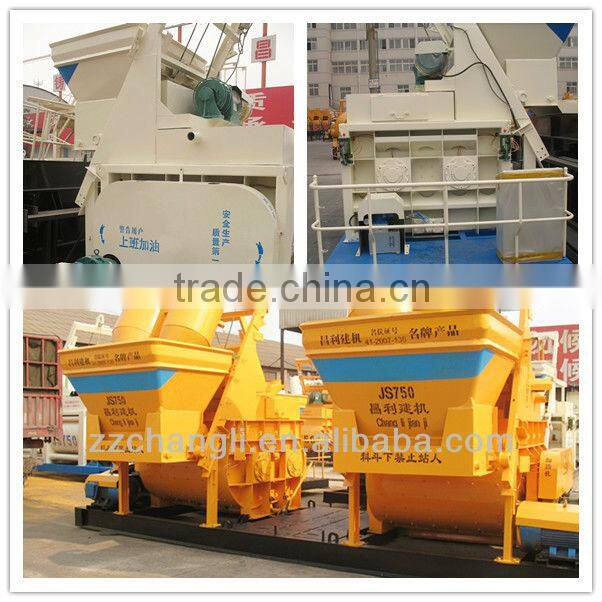

Mixer

Twin shaft cement mixer ,mixing the plastic and half-dry hard concrete, fluid concrete and light aggregate concrete.

1.Working condition: Road, Bridge & Precast product for factory, work independently or be used with correspond batching machine as a mini-type concrete plant.

2. Discharge system: Hydraulic & manual mode, drive reposefully and low noise.

3. Inside Mixer: Liner and mixer blade adopts high rigidity wear resistant steel (long service life).

The electrical system adopts import component, form those world famous exporter which are reliability and have good performance.

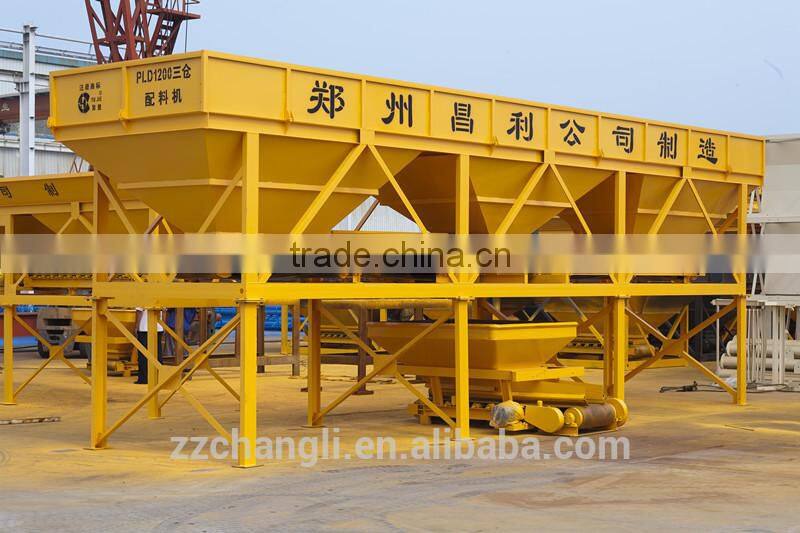

Batching machine

PLD Concrete Batching Machine is a kind of frontdesk

automatic batching equipment equipped with the mixer.

This concrete batching machine can finish automatically

the batching process of sand, stone, cement etc. 3~6 kinds

of material according to the cement proportion designed

by user. This concrete batching machine can batch materials

to one or two mixer, so it effectively improves the working

efficiency

Technical Parameters

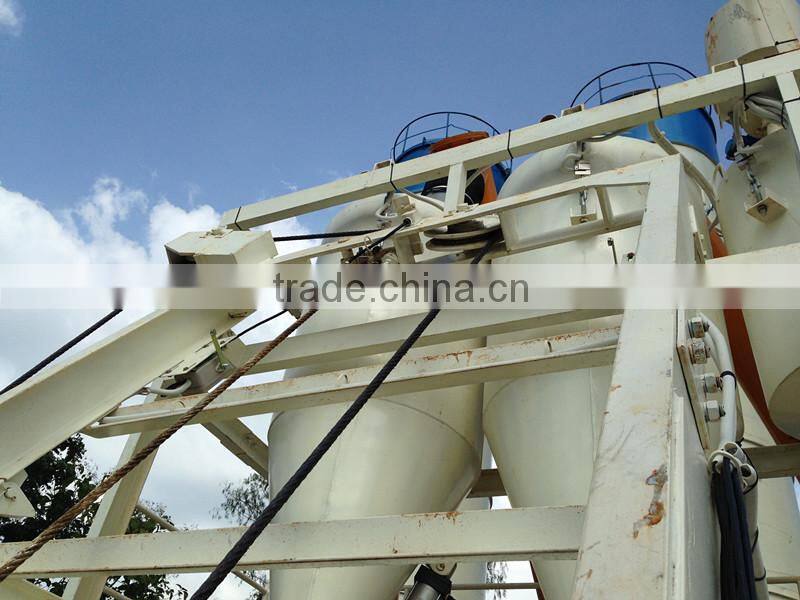

Weighing system	Cement silo

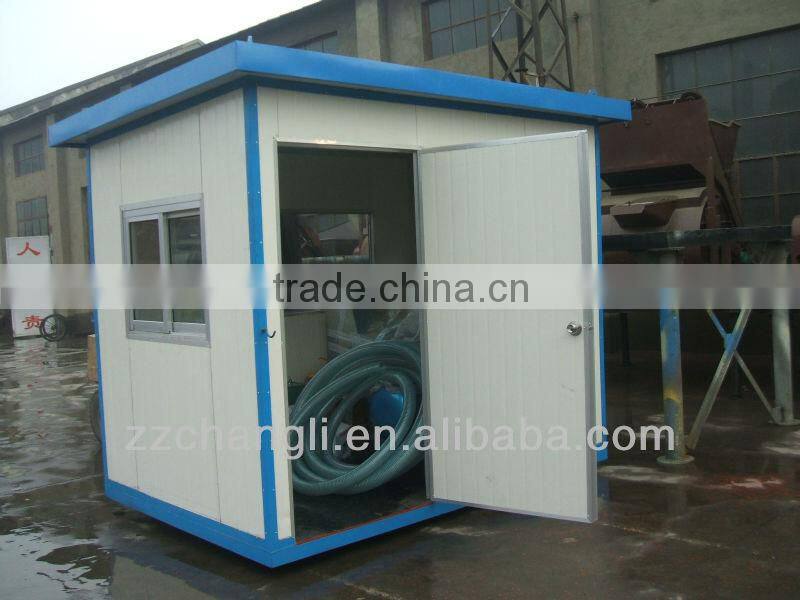

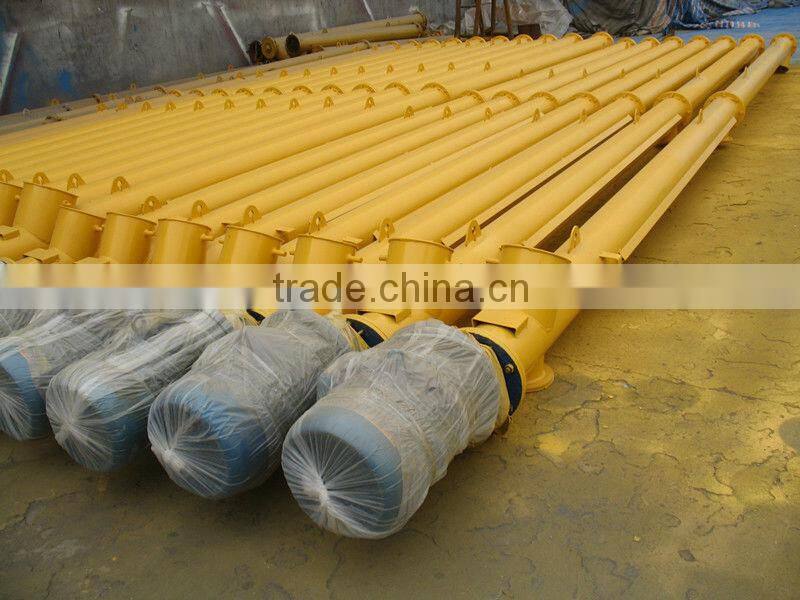

srew conveyor	Control system
