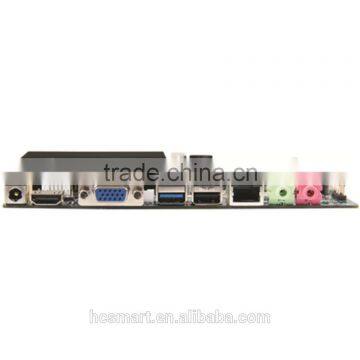

X86 Intel J1900 fanless baytrail lvds mini pc thin mini itx motherboard

FOB Price

USD $65 - $80 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	Embedded Industrial Motherboard
Brand Name	hcsmart	Model Number	HC-MJ1900T2C
Place of Origin	Guangdong, China

J1900 fanless baytrail thin client mini itx motherboard

Product Description

Processor	CPU	Intel celeron J1900
	Frequency	Quad core 2.0G max to 2.41G
	Chipset
	TDP	10W
Memory	Slot	1*SO-DIMM,DDR3 1333MHz Memory
Memory	capacity	MAX to 8GB
Storage	connector	2*SATA2.0
		1*MSATA
		1MINI PCIE (For WIFI) 1SIM
Display	chipset	CPU integrated HD Graphics
Display	output	HDMI,VGA,HDMI header,VGA header,LVDS header
LAN	chipset	1*Realtek 8111E 1000M
LAN	connector	1*RJ45
Audio	chipset	1*Realtek ALC662 HD
Audio	connector	1Line-out,1mic-in,1Audio,1Speaker
I/O	com	2*COM header
	Lpt	1*LPT header
	USB	2USB2.0,3USB2.0 connector(can change to lan)
	GPIO	1*GPIO header
	Header	3F-USB2.0 header(expand to 6USB2.0) 13G-SET 2COM-SET 1JPS1 header 1F_PANEL header 1GPIO header 1INVERT header 1LVDS header 1LDVS-PWR 1ATX header 1J-1 header 1AUTO-ON jumper 1CLR-CMOS jumper 1SYS-FAN 1CPU-FAN 1SATA-SET 2SATA-PWR 1SPDFI 1SPEAKER 1*J485
Power	power supply	1DC IN 12V/5A 14PIN ATX
OS	Version	Win7/Win8/Linux
BIOS		AMI BIOS
working environment	working temp	-10~60℃
	storage temp	-10~70℃
	relative humidity	5%-95% non-condensing
Form factor	size	Thin MINI-ITX 170*170mm

Packaging & Shipping

20pcs/carton ,Carton box , shipped by express (Fedex,DHL, UPS,TNT etc )or air ,the cargo can be arrived in 3-7 days

Our Services

We can give you 1 year warranty and 1% RMA,

To assure the quality, we usually do full test befor shippment to avoid the quality issue

24*7 hotline for inquiry, if you have any questions about our products, you can contact us any time.
