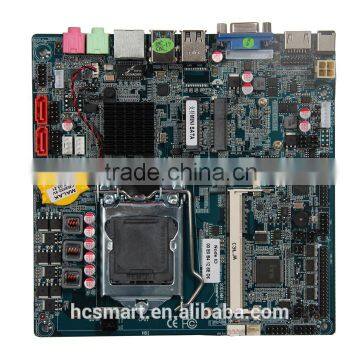

H81 LGA1150 6com lvds thin mini itx motherboard 1 LAN DC 12V with SIM card
- Shenzhen
- Credit Card PayPal
You May Like
-
3.5inch fanless J1900 fanless LVDS industrial embedded motherboard
-
3.5inch fanless J1900 fanless LVDS industrial X86 embedded Linux motherboard 2lan
-
3.5inch fanless J1900 fanless LVDS x86 embedded motherboard with 2 lan
-
3.5inch J1900 fanless 2 LAN LVDS industrial embedded motherboard
-
LGA1150 6com lvds thin mini itx motherboard 1 LAN DC 12V with SIM slot
-
LGA1150 h81 thin mini itx motherboard with 1 LAN DC 12V SIM slot LVDS DC power
Product Details
| Products Status | Stock | Type | Embedded Industrial Motherboard | |
| Brand Name | hcsmart | Model Number | HC-H81T6C1L | |
| Place of Origin | Guangdong, China |
Product Description
Support Intel LGA1150( Haswell )processor with Intel H81chipset intel CPU integrated graphics core 1*SO-DIMM,DDR3 160013331066MHz Memory up to 8GB onboardRealtek ALC269HD onboard Realtek 8111F 1000M Size:170X170MM
Processor | CPU | support Intel LGA1150( Haswell) processor |
Frequency | depend on cpu | |
Chipset | H81 | |
TDP | depend on cpu | |
Memory | Slot | 1*SO-DIMM,DDR3 160013331066MHz Memory |
Capacity | MAX to 8G | |
Storage |
Connectors | 2*SATA 2.0 |
1*MSATA | ||
1*MINI-PCIE (For WIFI3G)1*SIM | ||
Display | Chipset | depend on cpu |
output | VGA,HDMI,VGA header,LVDS header | |
LAN | chipset | onboard Realtek RTL8111F 1000M |
connectors | 1*Rj45 | |
Audio | chipset | onboard Realtek ALC269HD decoding |
connectors | 1*Line-out,1*Mic-in,1*Audio header,1*Speaker header | |
| IO | com | 6*COM header (can support485) |
LPT | NA | |
USB | 2*USB3.0 2*USB2.0 2*USB2.0 header | |
PCIE | 2*mini PCIE (wifi/msata) | |
Header |
1*12PIN VGA header 1*30PIN LVDS header 1*HDMI header 1*SPEAKER header 6*COM 3*COM-SET 2*USB expand to 4usb 2.0 1*6PIN INVERT header 1*8PIN AUDIO 1*F-PANEL 1*SATA-PWR 1*AUTO-ON 1*CLR-COMS 1*LVDS-JP 1*SYS-FAN 1*CPU-FAN 1*J-ME 1*ATX 12V | |
Power | power input | DC 12V |
OS | Version | Win7/Win8 /Linux |
BIOS |
| AMI BIOS |
Working environment | working temp | -10~60℃ |
storage temp | -10~70℃ | |
relative humidity | 5%~95% non-condensing | |
12.Form factor | Size | mini ITX 170*170mm |
20pcs/carton ,Carton box , shipped by express (Fedex,DHL, UPS,TNT etc )or air ,the cargo can be arrived in 3-7 days
We can give you 1 year warranty and 1% RMA,
To assure the quality, we usually do full test befor shippment to avoid the quality issue
24*7 hotline for inquiry, if you have any questions about our products, you can contact us any time.
1.What is your payment terms ?
T/T, Paypal ,westunion ,money gram for sample or small order
2.What is your lead time?
3-5 working days after receipt of payment
3.Do you have warranty about your products?
Yes, 1 year
4. Can you do customlized serive ?
Yes. We can add your logo on our products. or we can design as per your requirements
OEM and ODM serive are available
