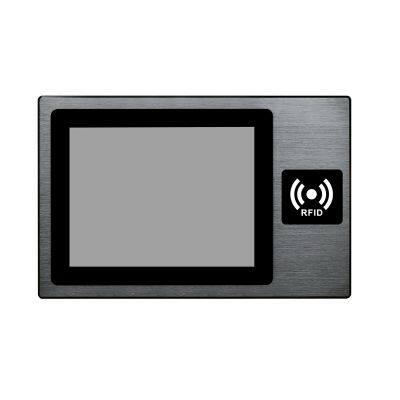

Fanless Dustproof Antishock Embedded Touch Panel Pc With Rfid

PC

CPU

Intel? Celeron J1900, quad core, 2.0GHz, fanless

Chipset

Intel ValleyView SSA-CUnit

Memory

2G DDR3 (4G, 8G optional)

Hard Drive Capacity

32G SSD

Hard Drive Optional

SSD: 64G, 128GB, 256GB

HDD: 500GB, 1TB

Graphics

CPU Integrated graphics HD Graphics and support 1080p HD photo quality

Audio

Realtek ALC662, High Definition Audio (HD), Line in, Line out

Network

1xRealtek RTL 8111E Gigabit Ethernet controller

Wireless Network

WIFI

I/O Interface

2xUSB 2.0 , 1xCOM RS232

1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC

Operation System

Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.

LCD panel

Panel size

10.4"

Resolution

1024*768

Aspect ratio

4:3

Support Color

16.7M colors

Brightness (cd/m2)

300

Response time

5ms

Contrast ratio

800:1

View angle

80°/80°/80°/80° (R/L/U/D)

Touch panel

Touchscreen Type

Project Capacitive Touch (10 points)

Touch Interface

USB (RS232 optional)

Touch response time

2ms

Luminousness

90%

Surface Hardness

7H

Working life

>50 million times

Touch options

(5 wire resistive touch, IR touch optional)

Power Supply

External Power Supply

AC 100-240V

Working voltage

DC 12V

Power consumption

≤21.5W

Enclosure

Material

Aluminum Alloy

Color

Silver, Black, white, color can be customized

VESA mounting

75x75mm/100x100mm

IP grade

Front panel IP65 waterproof

Operating Environment

Temperature Range

Operating: -10 to 60°C, storage: -20 to 70°C

Relative humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

Packing Details

Net weight

4kg

Gross weight

5kg

Product Dimension

36.26x23.5x6.6cm

Packing size

49x45x20cm

Accessories

Power adapter, embedded screws, user manual, warranty card

Other

Mounting (options)

Embedded mounting screws

Wall mounting brackets (optional)

Desk stand holder (optional)

Warranty

1 year warranty

Certificate

CE, FCC, RoHS
