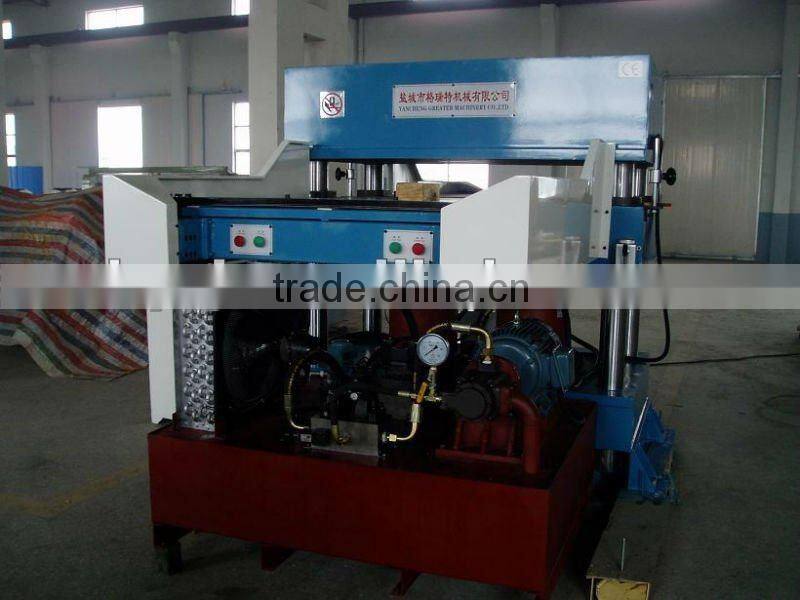

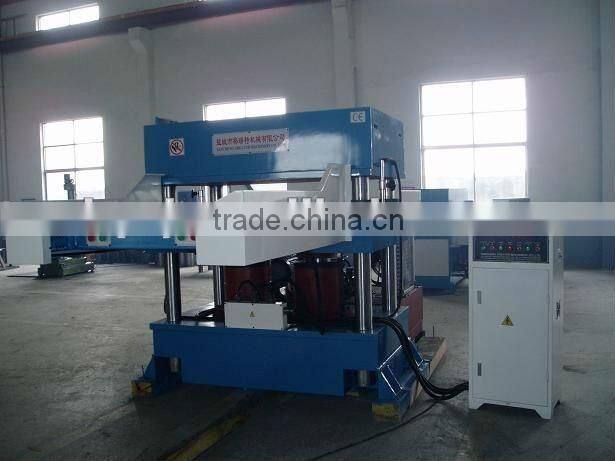

250T Downward Hydraulic Four-column Plane Cutting Machine

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shanghai port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Greater
Model Number	XCLP3-2500

Product Description

Specifications

It employs the four-column and double oil cylinders(drive from TOWN to TOP) driving mechanism to realize high-tonnage.

It is applied to cutting work need a big cutting area and great force. Such as leather processing industry, case and bag industry, package industry, stationery industry, automobile industry, polyurethane processing industry to cut materials leather, rubber, plastics, cardboard, cloth, foam, nylon, leatherette, and EVA, EPE, PVC with mold cutting die. With the change of knife shape, you can cut out various figures.

Features:

1) "Mitsubishi" PLC controlled, with simple, prompt and accurate operation.

2) It employs the four-column and double oil cylinders(drive from TOWN to TOP) driving mechanism to realize high-tonnage cutting force, which is a sustaining power able to keep several seconds till the materials are cut off, especially suitable for cutting work of sponge, foam products and thick material

3) Single-side or double-side auto-feeding devices increase the production efficiency of the complete machine by 2-3 times, which improves the utility efficiency and safety of the machine

4) The lubrication addition system guarantees the precision of the machine and improves its durability

5) It is equipped with water-cooling or air-cooling devices, which guarantee no rise in the oil temperature

MAIN TECHNICAL SPECIFICATION:

Model	XCLP3-2500
Max cutting force	250 Tons
Distance from press board and worktable	50-200mm
Cutting speed	0.06m/s
Cutting area	1600×1000mm
Motor power	11KW
Electric Supply Voltage	3x440/415/400/380/220/200V, 50/60 Hz

REMARK:MY FACTORY CAN MAKE THE MACHINE ACCORDING YOUR ORDER,FOR EXAMPLE,THE CUTTING FORCE,CUTTING AREA,FEEDING DEVICE,SPECIAL STROKE ETC.
