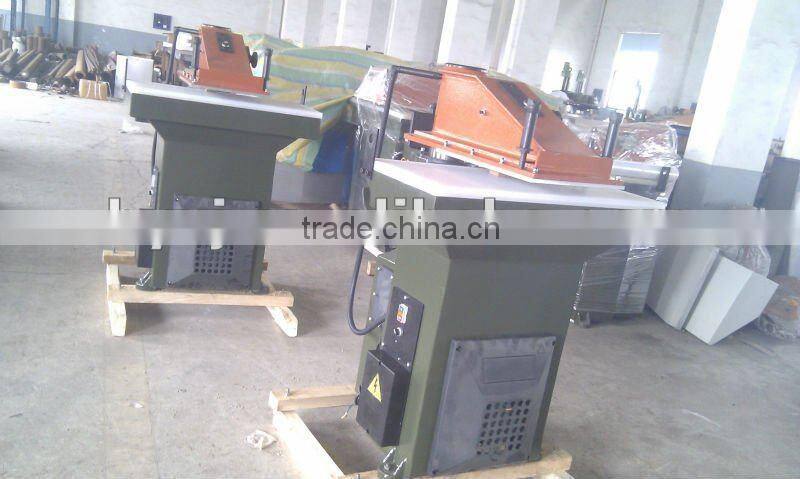

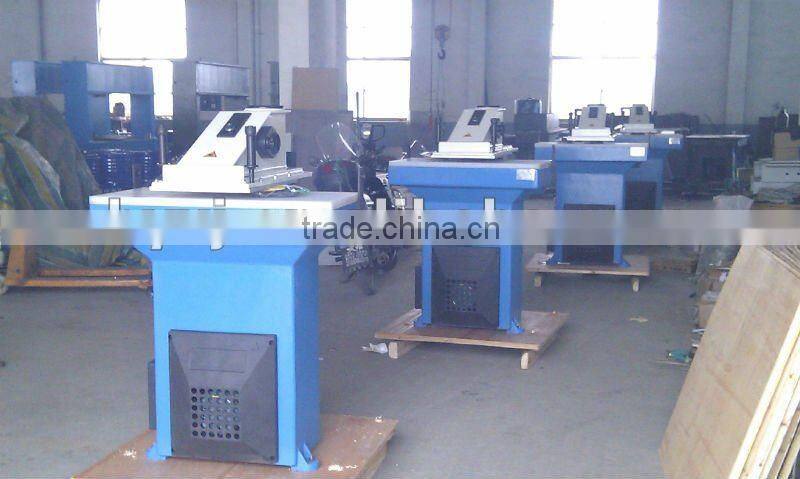

Gloves Cutting Machine/Making Machine
- Shanghai port
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Greater | |
| Model Number | GRT-S22T |
Product Description
Specifications
No adjustment is needed after the height of cutting die is changed.
1. The machine is applicable to cutting of various nonmetal materials by cutting die.
2. The oil way system specially designed can conveniently adjust the rocker height.
No adjustment is needed after the height of cutting die is changed.
3. High speed and low energy consumption.
4. To meet the need of frequent replacement of cutting die of different sizes, another type of machine that can timely output three kinds of cutting force is available for selection.
5. Ductile cast iron body made the machine be used for a very long time and small noise.
Model | GRT-S22T |
Max cutting force | 22T |
Working area | 900X430mm |
Swing arm width | 370mm |
Cutting stroke | 90mm |
Motor power | 1.1KW |
Electric Supply Voltage | 3x440/415/400/380/220/200V, 50/60 Hz |
Single phase 240V/220V, 50/60 Hz | |
Machines dimensions | 900X820X1400mm |
Packing size | 1050X1000X1500mm |
N.W(with oil) | 650kg |
G.W | 740kg |
REMARK:The machine will include the cutting board,hydraulic oil,tools and spare parts.
