Home > Products > Automatic Hydraulic Swing Arm Cutting Machine > 3 key (1+3) Cutting Press/Clicking Machine/Clicker press/Shoe machine

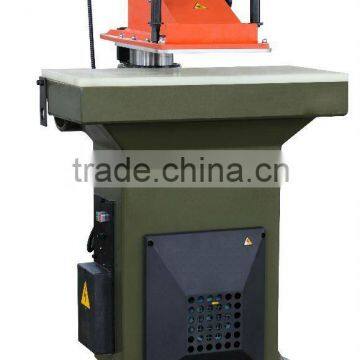

3 key (1+3) Cutting Press/Clicking Machine/Clicker press/Shoe machine
- Shanghai port
- T/T
You May Like
-
27T Swing arm width:610mm Cutting press/Clicking Machine(27T)/clicker press
-
GRT-S Clicking machine/Cutting press
-
22T(1+3) Shoe Machine/Cutting Press/Clicking Machine/Clicker press/atom cutting press
-
Leather Cutting Machine/Cutting Press/Clicking Machine/Clicker press
-
Shoe Cutting Machine/Cutting Press/Clicking Machine
-
Gloves Cutting Machine/Making Machine
Product Details
Place of Origin | Jiangsu, China | Brand Name | GRT | |
Model Number | GRT-S22T(1+3) | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
this type of machine can timely output three kinds of cutting force is available for selection.
1. The machine is applicable to cutting of various nonmetal materials by cutting die.
2. The oil way system specially designed can conveniently adjust the rocker height.
No adjustment is needed after the height of cutting die is changed.
3. High speed and low energy consumption. 4. To meet the need of frequent replacement of cutting die of different sizes, this type of machine can timely output three kinds of cutting force is available for selection.
5. Ductile cast iron body made the machine be used for a very long time and small noise.
Model | GRT-S22T(1+3) |
Max cutting force | 22T |
Working area | 900X430mm |
Swing arm width | 370mm |
Cutting stroke | 90mm |
Motor power | 1.1KW |
Electric Supply Voltage | 3x440/415/400/380/220/200V, 50/60 Hz |
Single phase 240V/220V, 50/60 Hz | |
Machines dimensions | 900X820X1400mm |
Packing size | 1050X1000X1500mm |
N.W(with oil) | 650kg |
G.W | 740kg |
configuration
Machine configuration | |
Pump and Valve | made in TAIWAN |
Sealing ring | made in ITALY |
Press switch | made in ITALY |
Cutting switch | made in GERMANY |
REMARK:The machine will include the cutting board,hydraulic oil,tools and spare parts.
Packaging & Shipping
Contact Us
- Yancheng Greater Machinery Co., Ltd.
- Contact nameZhibin Yang Chat Now
- Phone86-515-88802888
- Address8 Fenhuang Road,Dagang Town,Yancheng City, Yancheng, Jiangsu
