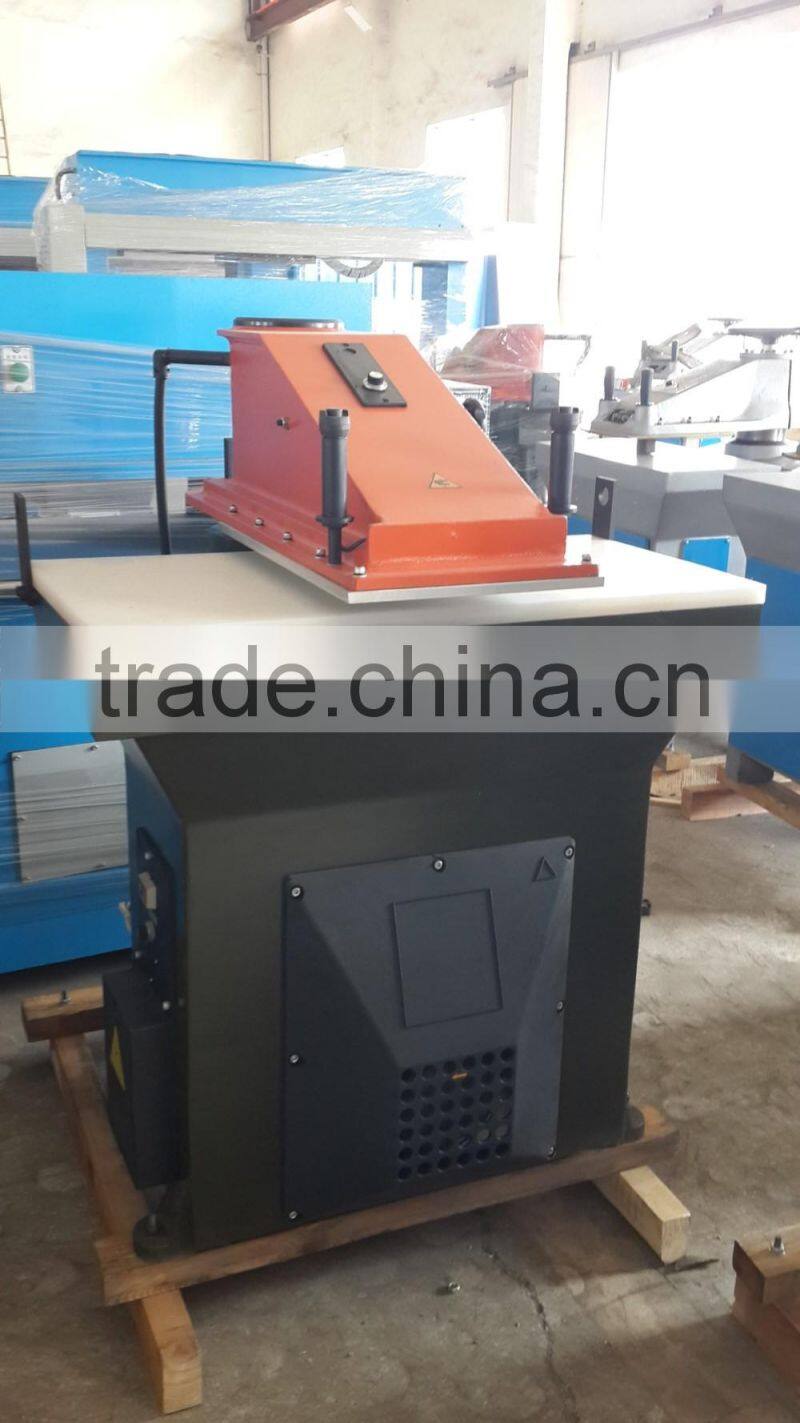

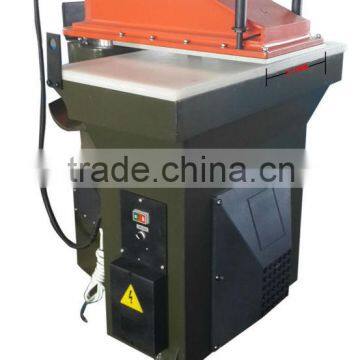

27T Hydraulic Swing Arm Cutting Machine/Cutting Press/Clicking Press(CE Standard,arm Width:370mm)
- Shanghai port
- T/T Credit Card
You May Like
-
3 Key (1+3) Cutting Press/Clicking Machine/Clicker Press/Shoe Machine
-
27T Swing Arm Width:610mm Cutting Press/Clicking Machine(27T)/clicker Press
-
GRT-S Clicking Machine/Cutting Press
-
22T(1+3) Shoe Machine/Cutting Press/Clicking Machine/Clicker Press/atom Cutting Press
-
Leather Cutting Machine/Cutting Press/Clicking Machine/Clicker Press
-
Shoe Cutting Machine/Cutting Press/Clicking Machine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Greater | |
| Model Number | GRT-S27 | After-sales Service Provided | Overseas service center available |
Product Description
USE AND CHARACTERISTICS
Model | GRT-S27 |
Max cutting force | 27T |
Working area | 1000X500mm |
Swing arm width | 370mm |
Cutting stroke | 90mm |
Motor power | 1.5KW |
Electric Supply Voltage | 3x440/415/400/380/220/200V, 50/60 Hz |
Single phase 240V/220V, 50/60 Hz | |
Machines dimensions | 1000X1020X1410mm |
Packing size | 1100X1100X1600mm |
N.W(with oil) | 980kg |
G.W | 1000kg |
REMARK:
1.The machine will include the PP cutting board(1000*500*30mm),hydraulic oil,tools,power line and spare parts.You can use the machine only coonect the power!
2.Our company may provide the Portuguese instructions.
3. I have the machine working video,please contact me if you need.
Machine configuration | |
Pump and Valve | made in TAIWAN |
Sealing ring | made in ITALY |
Press switch | made in ITALY |
Cutting switch | made in GERMANY |

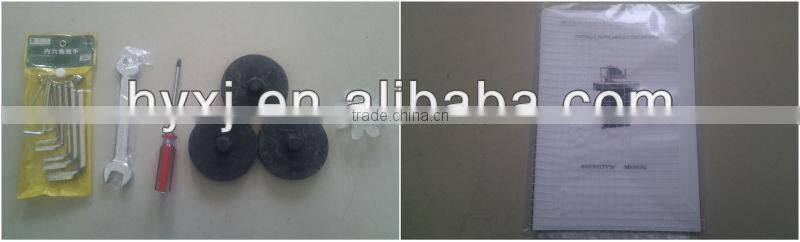

TOOLS AND SPARE PARTS AND MANUAL BOOK IN ENGLISH
