DQJ630 HDPE Fitting Cutting Machine
- SHANGHAI
- T/T
You May Like
Product Details
| Type | Hydraulic Cutting Machine | Application | 0~630mm | |
| Place of Origin | Jiangsu, China | Brand Name | YUDA | |
| Model Number | DQJ630 | Rated Power | 2.25KW | |
| No-Load Rotational Speed | 0~260m/min | Dimensions | 17 CBM | |
| Voltage | 380V | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1>Working Range:less than or equal to 630mm2>cutting angel error: less than or equal to 1 degree
3>certificate: ISO9001,CE

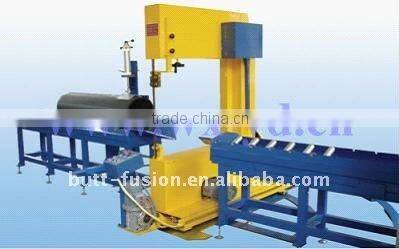

DQJ630 HDPE fitting cutting machine
Multi-angle cutting welding machine, Plastic Pipe Multi-angle Cutting Machine, Band Saw, HDPE pipe cutting machine, Plastic Pipe band saw.
Application:
Suitable for cutting pipes according to dpecified angle and dimension while making an elbow,tee or cross, which lowest the material waete and improve the welding efficiency.
Features:
1>Cutting angle 0-67.5°.
2>Self inspecion and stop of the machine in case of saw blade breaks enables to guarantee operator's safty.
3>Applied to solid pipes or structured wall pipes made of themrmoplastic such as PE and PP,and also other pipes and fittings made of non-metal materials.
4>Reliability,lower noisy,easy to handle.
5>Complies with 98/37 and 73/23 EEC standards.
Technical Specifications:
Maximum range | 630mm |
Cutting angles | 0°~ 45° |
Max. line speed | 250m/min |
Ranges of application | PE,PP and PVDF |
Working voltage | ~380V ±10%,50Hz |
Environment temperature | -10° ~ 45° |
Total power | drive motor: 1.5kW, hydraulic unit motor: 0.75kW |
components | basic frame, support and press bar |
