Home > Products > AC Axial Fans > 380V 145mm AC Ventilation Fan

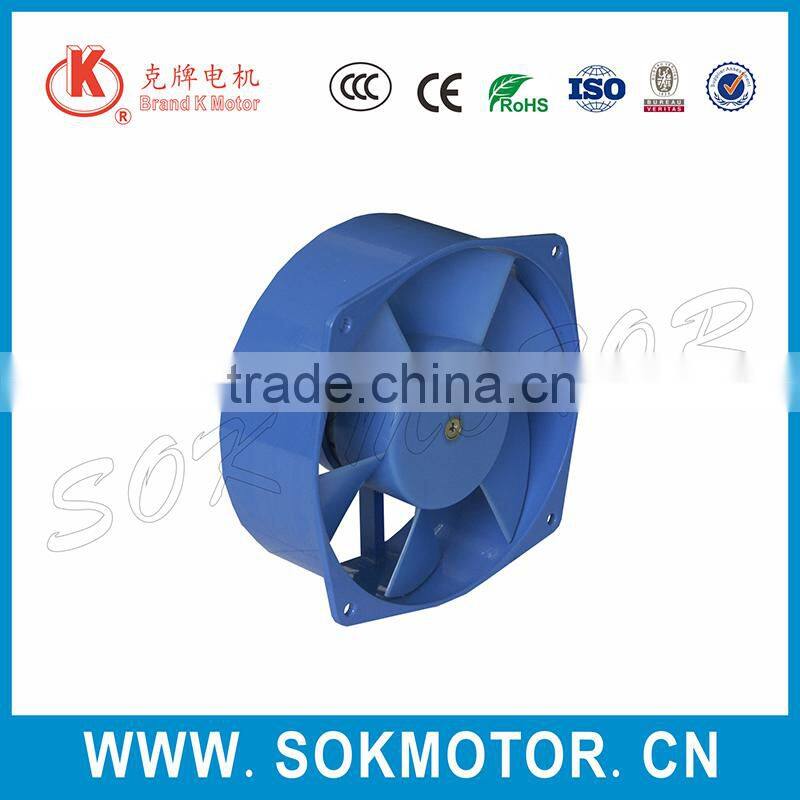

380V 145mm AC Ventilation Fan
- Shanghai
- T/T
You May Like
Product Details
| Electric Current Type | AC | Blade Material | Other, Galvanized sheet steel | |
| Place of Origin | Jiangsu, China | Brand Name | SOK MOTOR-ventilation fan | |
| Model Number | 145FZY2NYS5-3-ventilation fan | Voltage | 380V | |
| Air Volume | 450m³/h | Speed | 2600RPM | |

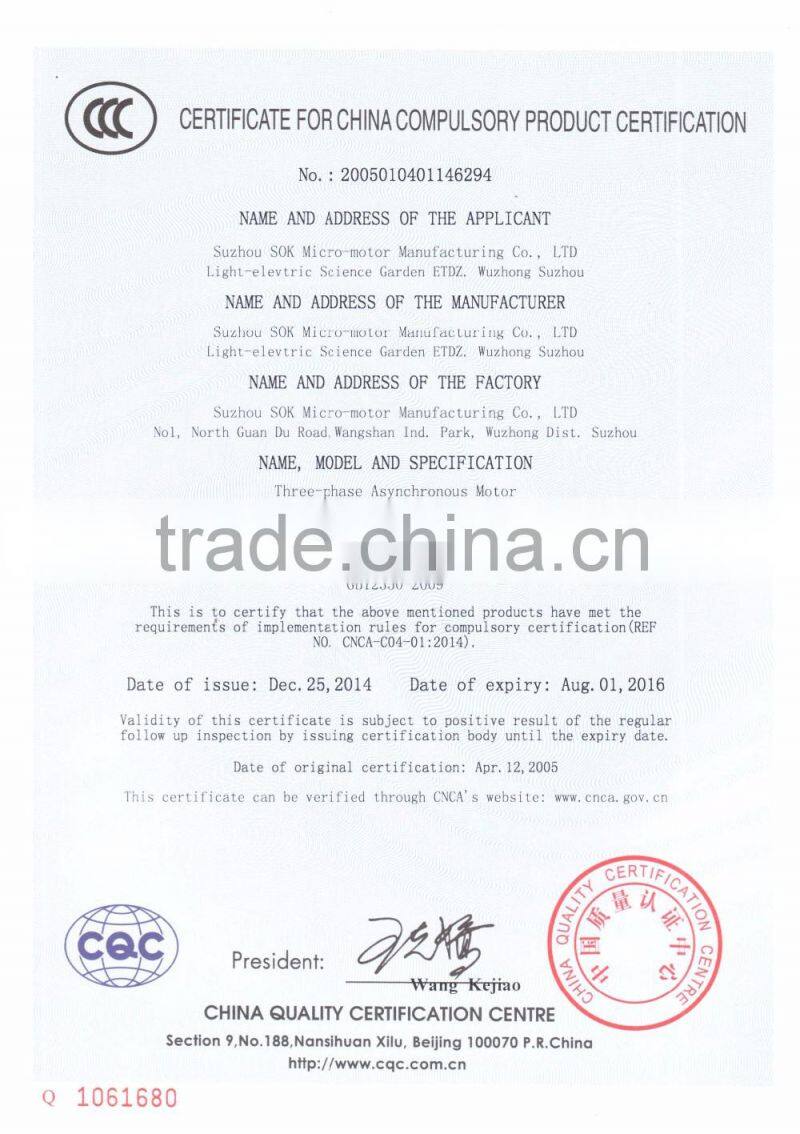

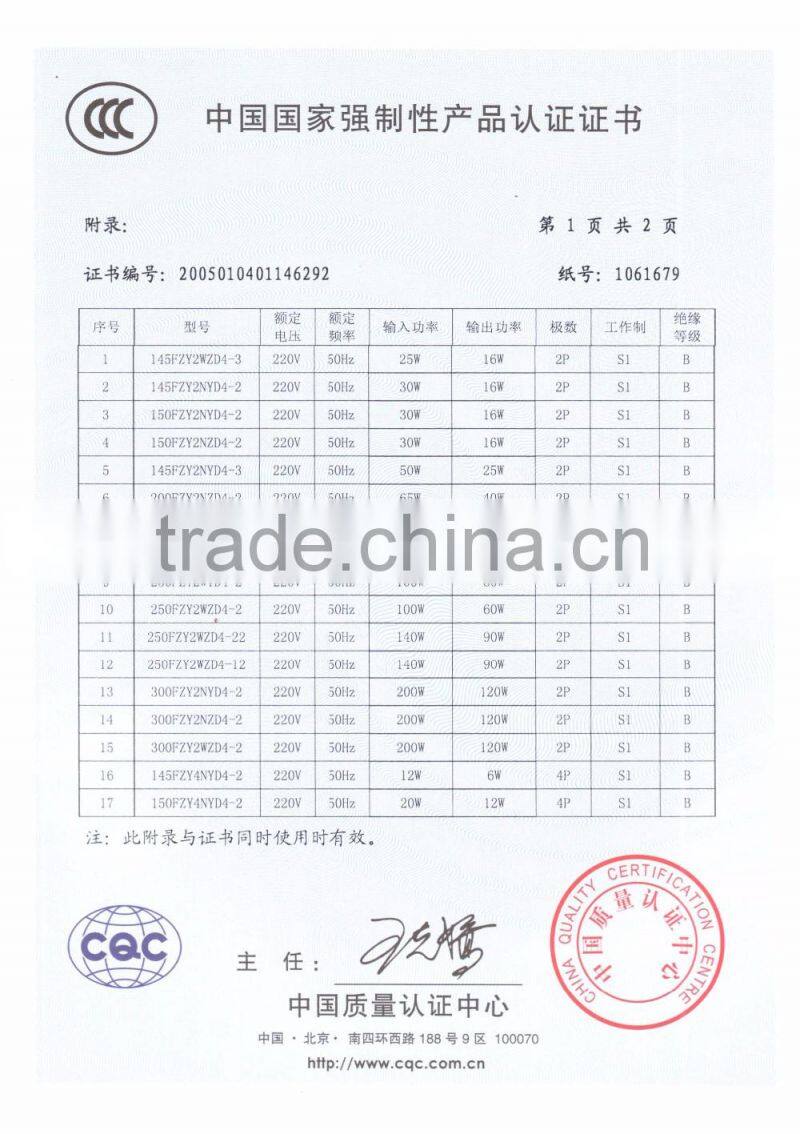

| Certification | CCC, CE, ROHS, Other, CCC, CE, ROHS, BV |
Product Description
Description of ventilation fan
The AC axial fan consists of metal tubular vent ,inner or external rotor AC induction motor and plastic or metal impeller,which has the following feature : large air flow ,low noise and vibration,high reliability ,easy mounting and long life-time etc.
Typical application of ventilation fan
Computer systems
Office automatic equipments
Ground-based auto-controlling system
Medical apparatus
Electric instruments
Welding machines
Ambient condition of ventilation fan
1.Temperature:-25℃～ +40℃；
2.Relative humidity:90%～ 95%；
3.Atmospheric pressure :55KPa（4000m);
4.Vibration:10～55Hz, double amplitude 1.5mm;
5.Impact: 150m/s2

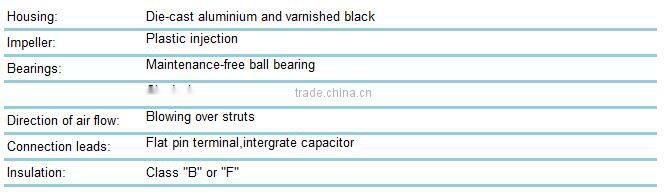

Material of ventilation fan

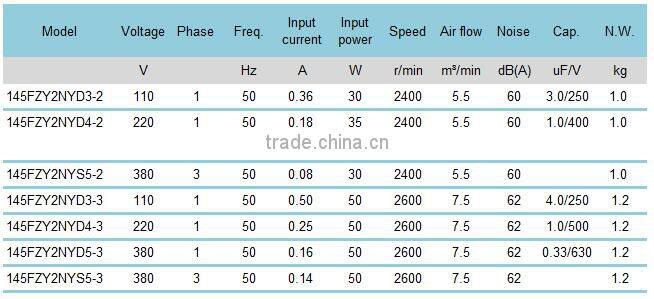

Electric motor parameter of ventilation fan
Note: The typical specifications below are just for your reference. Axial fans' voltage ,frequency, speed ,direction of rotor ,direction of air flow and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.
Dimension of ventilation fan
