110V 50Hz 150mm Unique Exhaust Fan Axial Fan Blades
- Shanghai
- T/T
You May Like
Product Details
| Electric Current Type | AC | Blade Material | Plastic | |
| Place of Origin | Jiangsu, China | Brand Name | SOK MOTOR- unique exhaust fan axial fan blades | |
| Model Number | 150FZY2NY/ZD3-2- unique exhaust fan axial fan blades | Voltage | 110V | |
| Air Volume | 330m³/h | Speed | 2600RPM | |
| Certification | CCC, CE, ROHS, Other, CCC, CE, ROHS, BV |
Product Description
Description of unique exhaust fan axial fan blades
The AC axial fan consists of metal tubular vent ,inner or external rotor AC induction motor and plastic or metal impeller,which has the following feature : large air flow ,low noise and vibration,high reliability ,easy mounting and long life-time etc.
Typical application of unique exhaust fan axial fan blades
Computer systems
Office automatic equipments
Ground-based auto-controlling system
Medical apparatus
Electric instruments
Welding machines
Ambient condition of unique exhaust fan axial fan blades
1.Temperature:-25℃～ +40℃；
2.Relative humidity:90%～ 95%；
3.Atmospheric pressure :55KPa（4000m);
4.Vibration:10～55Hz, double amplitude 1.5mm;
5.Impact: 150m/s2

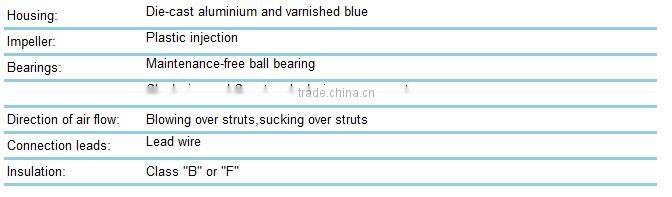

Material of unique exhaust fan axial fan blades

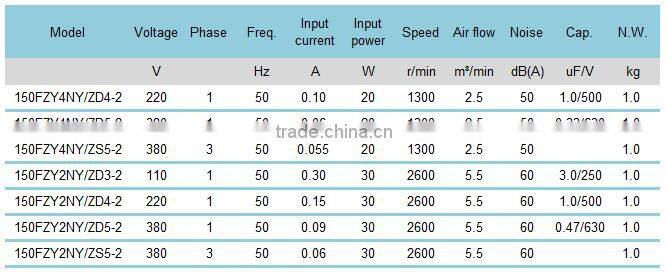

Electric motor parameter of unique exhaust fan axial fan blades
Note: The typical specifications below are just for your reference. Axial fans' voltage ,frequency, speed ,direction of rotor ,direction of air flow and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.
Dimension of unique exhaust fan axial fan blades
