380V 200mm Small Industrial Axial Fan
- Shanghai
- T/T
You May Like
Product Details
| Electric Current Type | AC | Blade Material | Plastic | |
| Place of Origin | Jiangsu, China | Brand Name | SOK MOTOR- small industrial axial fan | |
| Model Number | 200FZY2NY/ZS5-2- small industrial axial fan | Voltage | 380V | |
| Air Volume | 720m³/h | Speed | 2400RPM | |
| Certification | CCC, CE, ROHS, Other, CCC, CE, ROHS, BV |
Product Description
Description of small industrial axial fan
The AC axial fan consists of metal tubular vent ,inner or external rotor AC induction motor and plastic or metal impeller,which has the following feature : large air flow ,low noise and vibration,high reliability ,easy mounting and long life-time etc.
Typical application of small industrial axial fan
Computer systems
Office automatic equipments
Ground-based auto-controlling system
Medical apparatus
Electric instruments
Welding machines
Ambient condition of small industrial axial fan
1.Temperature:-25℃～ +40℃；
2.Relative humidity:90%～ 95%；
3.Atmospheric pressure :55KPa（4000m);
4.Vibration:10～55Hz, double amplitude 1.5mm;
5.Impact: 150m/s2

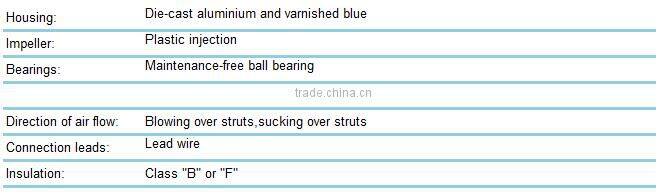

Material of small industrial axial fan

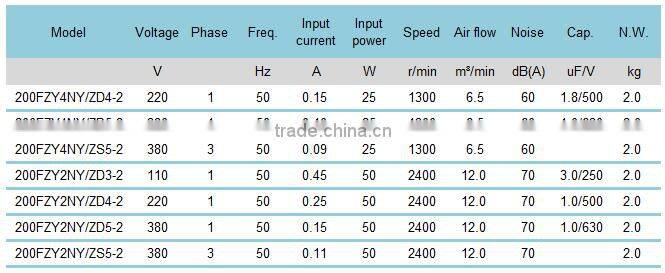

Electric motor parameter of small industrial axial fan
Note: The typical specifications below are just for your reference. Axial fans' voltage ,frequency, speed ,direction of rotor ,direction of air flow and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.
Dimension of small industrial axial fan
