Home > Products > AC Axial Fans > 220V 145mm AC Industrial Ventilation Fan
220V 145mm AC Industrial Ventilation Fan
- Shanghai
- T/T
You May Like
Product Details
| Electric Current Type | AC | Blade Material | Other, Galvanized sheet steel | |
| Place of Origin | Jiangsu, China | Brand Name | SOK MOTOR- AC Industrial ventilation fan | |
| Model Number | 145FZY4NYD4-2 AC Industrial ventilation fan | Voltage | 220V | |
| Air Volume | 2.8m³/min | Speed | 1200RPM | |
| Certification | CCC, CE, ROHS, Other, CCC, CE, ROHS, BV |
Product Description
Description of AC Industrial ventilation fan
The AC axial fan consists of metal tubular vent ,inner or external rotor AC induction motor and plastic or metal impeller,which has the following feature : large air flow ,low noise and vibration,high reliability ,easy mounting and long life-time etc.
Typical application of AC Industrial ventilation fan
Computer systems
Office automatic equipments
Ground-based auto-controlling system
Medical apparatus
Electric instruments
Welding machines
Ambient condition of AC Industrial ventilation fan
1.Temperature:-25℃～ +40℃；
2.Relative humidity:90%～ 95%；
3.Atmospheric pressure :55KPa（4000m);
4.Vibration:10～55Hz, double amplitude 1.5mm;
5.Impact: 150m/s2
Material of AC Industrial ventilation fan

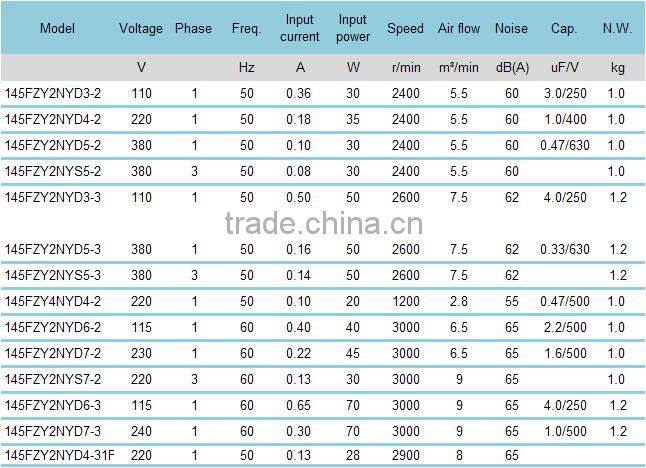

Electric motor parameter of AC Industrial ventilation fan
Note: The typical specifications below are just for your reference. Axial fans' voltage ,frequency, speed ,direction of rotor ,direction of air flow and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.
Dimension of AC Industrial ventilation fan
