Home > Products > AC Axial Fans > 380V 300mm AC Axial Fans Motor Ball Bearing
380V 300mm AC Axial Fans Motor Ball Bearing
- Shanghai
- T/T
You May Like
Product Details
| Electric Current Type | AC | Blade Material | Other, Galvanized sheet steel | |
| Place of Origin | Jiangsu, China | Brand Name | SOK MOTOR-AC axial fans motor Ball Bearing | |
| Model Number | 300FZY2WY/ZS5-2-AC axial fans motor Ball Bearing | Voltage | 380V | |
| Air Volume | 2040m³/h | Speed | 2100RPM | |
| Certification | CCC, CE, ROHS, Other, CCC, CE, ROHS, BV |
Product Description
Description of AC axial fans motor Ball Bearing
The AC axial fan consists of metal tubular vent ,inner or external rotor AC induction motor and plastic or metal impeller,which has the following feature : large air flow ,low noise and vibration,high reliability ,easy mounting and long life-time etc.
Typical application of AC axial fans motor Ball Bearing
Computer systems
Office automatic equipments
Ground-based auto-controlling system
Medical apparatus
Electric instruments
Welding machines
Ambient condition of AC axial fans motor Ball Bearing
1.Temperature:-25℃～ +40℃；
2.Relative humidity:90%～ 95%；
3.Atmospheric pressure :55KPa（4000m);
4.Vibration:10～55Hz, double amplitude 1.5mm;
5.Impact: 150m/s2

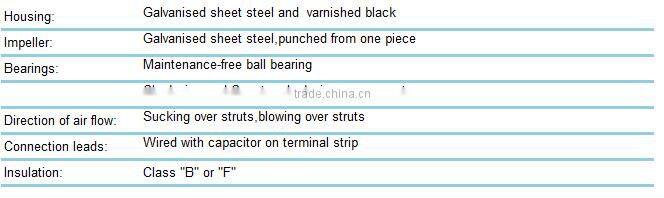

Material of AC axial fans motor Ball Bearing

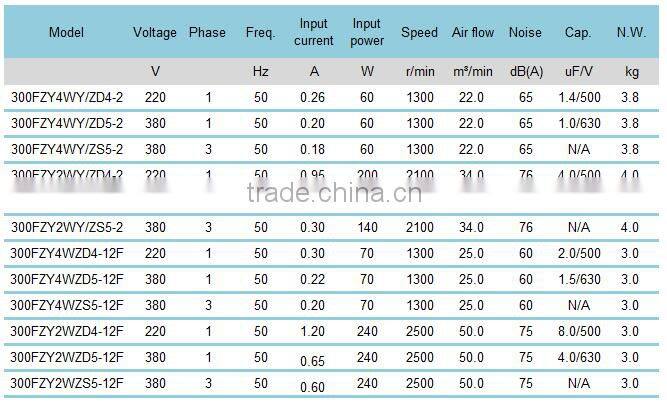

Electric motor parameter of AC axial fans motor Ball Bearing
Note: The typical specifications below are just for your reference. Axial fans' voltage ,frequency, speed ,direction of rotor ,direction of air flow and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.
Dimension of AC axial fans motor Ball Bearing
