Home > Products > AC Backward Curved Centrifugal Fans > 380V 180mm Mini Electric Factory Exhaust Fan Motor 3 Phase

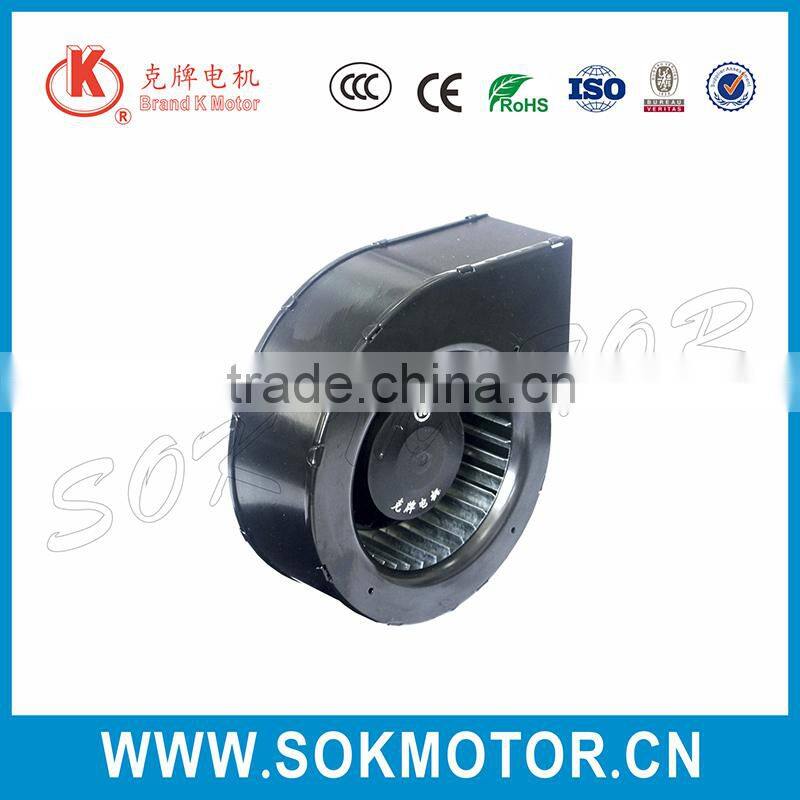

380V 180mm Mini Electric Factory Exhaust Fan Motor 3 Phase
- Shanghai
- T/T
You May Like
-
380V 190mm Toilet Exhaust Noiseless Centrifugal Blower Fan
-
380V 190mm Centrifugal Fans With Backward-curved Blades
-
380V 225mm Plastic Fan Blade Impeller Centrifugal Fan
-
380V 225mm Motor Cooling Plastic Fan Impeller
-
220V 225mm Strong Small Centrifugal Fan Backward Curved
-
380V 225mm High Pressure Centrifugal Exhaust Fan Motor
Product Details
| Electric Current Type | AC | Blade Material | Plastic | |
| Place of Origin | Jiangsu, China | Brand Name | SOK motor- mini electric factory exhaust fan motor 3 phase | |
| Model Number | 180FHJ2WYS5-2- mini electric factory exhaust fan motor 3 phase | Voltage | 380V | |
| Air Volume | 450m3/h | Speed | 2500RPM | |
| Certification | CCC, CE, ROHS, Other, CCC, CE, ROHS, BV |
Product Description
Description of mini electric factory exhaust fan motor 3 phase
The AC backward curved centrifugal fan consists of AC induction motor with external rotor and plastic or metal backward curved impeller ,and has the following features: compact construction, light weight, high air flow, low noise & vibration and easy mounting etc.
Typical application of mini electric factory exhaust fan motor 3 phase
Ground-based electronic equipments
Kitchen equipment
Pollution air protection
Automatic control equipment
Environment controlling
Air purification
Building exhausting
Ambient condition of mini electric factory exhaust fan motor 3 phase
1.Temperature:-25℃～ +40℃；
2.Relative humdity:90%～95%；
3.Atmospheric pressure:55KPa（2500m);
4.Vibration:10～55Hz,double amplitude1.5mm;
5.Impact:150m/s2
Material of mini electric factory exhaust fan motor 3 phase

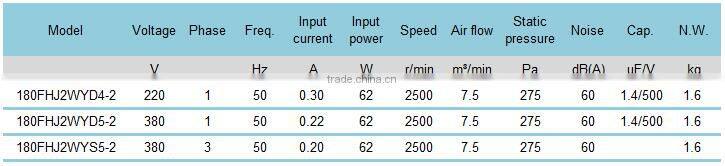

Electric motor parameter of mini electric factory exhaust fan motor 3 phase
Note: The typical specifications below are just for your reference. The AC centrifugal fans' voltage ,frequency, speed ,air flow, static pressure ,outline dimension and insulation class can be customized. Please feel free to contact us if you can’t find the AC centrifugal blowers you required. We are always here being ready to help.
Dimension of mini electric factory exhaust fan motor 3 phase
