Home > Products > AC Axial Fans > 220V 200mm ac Mini Fan 220v

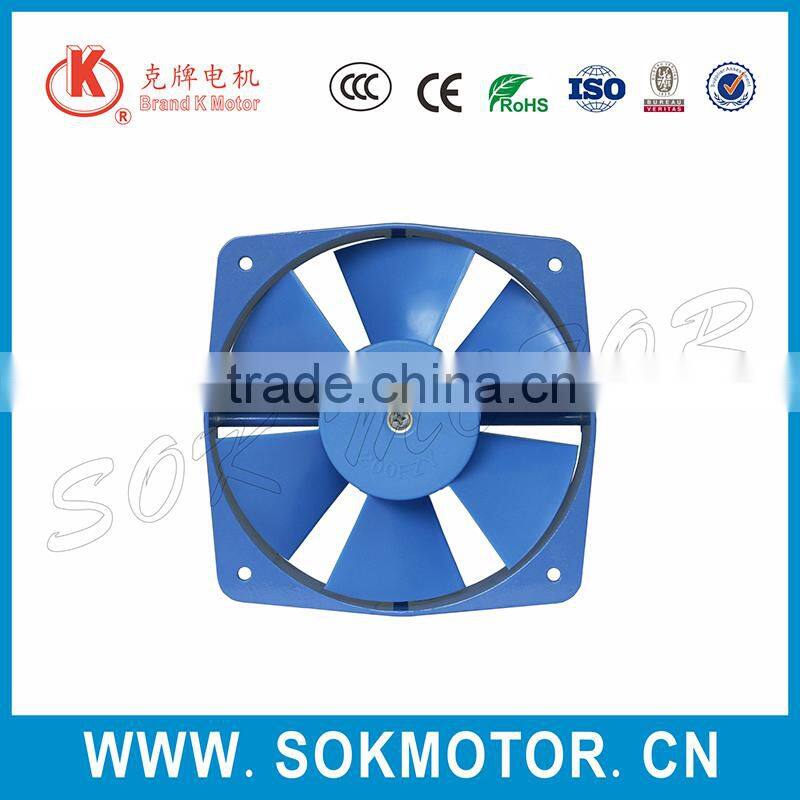

220V 200mm ac Mini Fan 220v
- Shanghai
- T/T
You May Like
Product Details
| Electric Current Type | AC | Blade Material | Other, Sheet steel | |
| Place of Origin | Jiangsu, China | Brand Name | SOK MOTOR-ac mini fan 220v | |
| Model Number | 200FZY2WZD4-2F-ac mini fan 220v | Voltage | 220V | |
| Air Volume | 900m³/h | Speed | 2600RPM | |
| Certification | CCC, CE, ROHS, Other, CCC, CE, ROHS, BV |
Product Description
Description of ac mini fan 220v
The AC axial fan consists of metal tubular vent ,inner or external rotor AC induction motor and plastic or metal impeller,which has the following feature : large air flow ,low noise and vibration,high reliability ,easy mounting and long life-time etc.
Typical application of ac mini fan 220v
Computer systems
Office automatic equipments
Ground-based auto-controlling system
Medical apparatus
Electric instruments
Welding machines
Ambient condition of ac mini fan 220v
1.Temperature:-25℃～ +40℃；
2.Relative humidity:90%～ 95%；
3.Atmospheric pressure :55KPa（4000m);
4.Vibration:10～55Hz, double amplitude 1.5mm;
5.Impact: 150m/s2

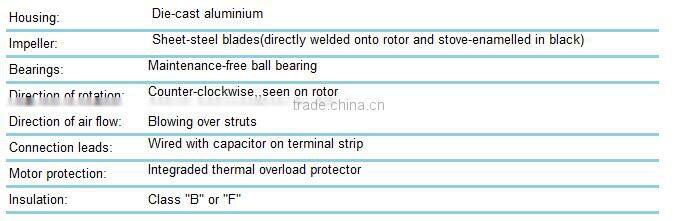

Material of ac mini fan 220v

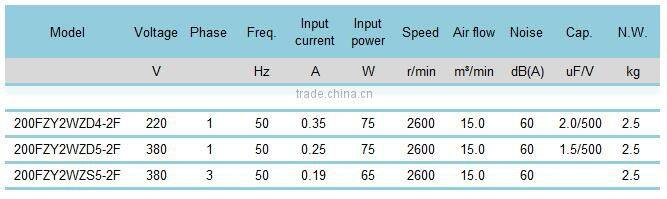

Electric motor parameter of ac mini fan 220v
Note: The typical specifications below are just for your reference. Axial fans' voltage ,frequency, speed ,direction of rotor ,direction of air flow and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.
Dimension of ac mini fan 220v
