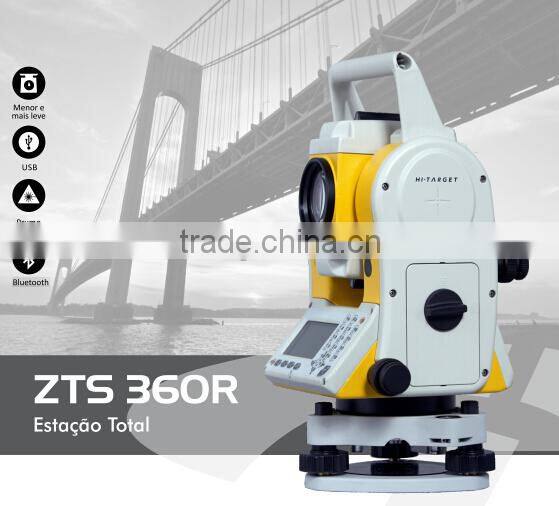

ZTS360R Hi Target Electronic Total Station

 ZTS-360R Total Station

Compact and Lightweight Designed, easy to carry and setup. With powerful measurement module, Stable Dual-axis Compensation system, and Intelligent Calibration Software, ZTS-360R improves the speed and distance of measurement efficiently. Using STM32 architecture and high-grade dustproof and waterproof structure design, Comprehensively enhance the overall performance of ZTS-360R.

Technical parameters

Angle measurement (Hz,V)

Detecting system——Absolute encoder

Minimum display——1″/5″/10″(selectable)

Accuracy——2″

Telescope

Magnification——30X

Field of view——1°30′

Minimum focus distance——1.5m

Image——Erect

Compensation

System——Dual-axis

Range——±3′

Resolving power——1″

Distance measurement (IR)

Single prism (good condition)——3000m

Reflective sheet——800m

Accuracy——2mm±2ppm

Measuring time (Repete/Tracking)——1s/0.5s

Reflectorless (RL)

Range (white board reflectivity 90%)——600m

Single prism——>7500m

Accuracy——3mm±2ppm

Measuring time——1.5s

Communication

Internal memory——20000 points (SD card supported)

Interface——RS232, Mini-USB, USB

Data format——ASCII

Operation

Operation system——Real-time operation system

Display——192×96 high-light LED screen, brightness adjustable in 3 level

Keyboard——2 sides alphanumeric backlit crystal keyboard

Laser plummet

Type——Laser point, 4 brightness levels adjustable (Optical plummet is optional)

Accuracy——1mm at 1.5m instrument height

Environmental

meteorological parameter modification——Manually(T-P senser is optional)

Operation temperature——-20℃_+50℃

Storage temperature——-40℃_+70℃

Dust & Water proof——IP66

Power supply

Battery type——BT30 Li-ion battery

Voltage/Capacity——7.4V 3400mAh

Operating time——18 hours(continuous angle measurement every 30 seconds)

Measuring times——Approx. 12000 times

Weight

Weight——3.8kg with battery

Characters

Zenith point measurement without removing the handle

Shortcut measurement key on the side, convenient for surveying

Small and light

Key define

 1. Payment term : T/T before shipment.

2. Delivery: 5-7 days for sample order, 10-15 days for bulk order.
3. Shipping by sea, by air, by Express (DHL/UPS/FEDEX/EMS/TNT).
4. Shipping freight will be quoted when you have order.
5. Shipping port: Mainly Shenzhen, China Mainland. Depends on clients’ request
6. If you want special discount. Please let us know what quantity you can order.

7.Bigger order will be better discount.

Thank you for your time, We are looking forward to your enquiry
