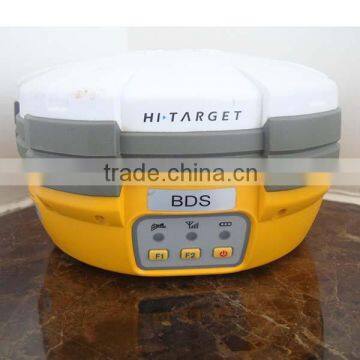

V30 GPS Surveying Instrument, Dual Frequency RTK GPS

Multi-constellation tracking

• 220 tracking channels.
• Supports GPS, GLONASS, GALILEO, BDS, SBAS.
• NGS approved GNSS antenna.
• Intelligent operation
• Equipped with a smart speaker guiding the whole operation.
• Multi one-button functions make fieldwork easier, such as auto base setup by one button, the rover can get fix solution once it is turned on.

Diversify RTK application

• Optional transceiver UHF radio
• The transceiver UHF radio enables the working mode to be switchable between base and rover.
• 2-watt HI-TARGET internal UHF radio and 2-watt Pacific Crest TrimTalk© internal UHF radio are optional. Pacific Crest TrimTalk© internal UHF radio is compatible with other radios.
  Removable internal UHF radio enables users to fix or exchange simply.
• Seamless operation in CORS system

• Built-in GPRS/GSM/3G module ensures that the V30 works perfectly with network RTK positioning.

Long-life battery

• Powered by 5000mAh Li-ion battery.
• Static working time 13 - 15 hours.
• RTK Rover (UHF/GPRS/GSM) working time 10 - 12 hours.
• RTK Base working time 8 - 10 hours.

Rugged and unique design

• IP67 dust/water protection.
• Withstands 3-meter natural fall onto concrete.
• Rapid tracking and perfect avoidance or reduction of obstruction and multipath effect to ensure superior positioning capability.

•  220 Channels

• Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology

• High precision multiple correlator for GNSS pseudo range measurements

• Unfiltered, unsmoothed pseudo range measurements data for low noise, low multipath error, low time domain correlation and high dynamic response

• Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth

• Signal-to-Noise ratios reported in dB-Hz

• Proven Pacific Crest low elevation tracking technology
