Product Details
Products Status | Stock | Ports | Other, 5, 5 | |
Transmission Rate | Other, 10/100Mbps, 10/100Mbps | Function | POE, SNMP, VLAN Support, POE, SNMP | |
Communication Mode | Other, Full-Duplex & Half-Duplex, Full-Duplex & Half-Duplex | Certification | CE,FCC,RoHS, ISO, CE,FCC,RoHS, ISO | |
Switch Capacity | 1.6Gbps., 1.6Gbps | Brand Name | Winkasing | |
Model Number | YJS-POE04B | Place of Origin | Guangdong, China |
Product Description

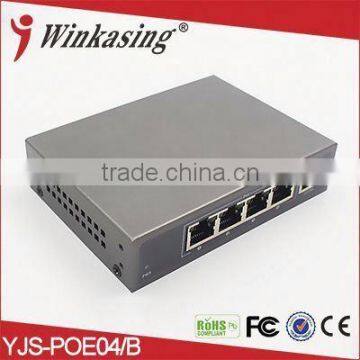

Manufacturer Supply 4 port mini poe switch for ip camera
Product | 5-PORT 10/100 SWITCH WITH 4-PORT POE |
Type | YJS-POE04B |
Network Ports | 5 10/100Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
Power Pin Assignment | Data provided over pairs over 1/2and 3/6 ,Power over |
PoE Distance | 100m |
Transmission Method | Store-And-Forward |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
Performance Specifications | Bandwidth:1.6 Gbps |
Network latency:Less than 20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission | |
Buffer memory:96 KB embedded memory per unit | |
Address database size:1,000 media access control (MAC) addresses per system | |
Addressing:48-bit MAC address | |
Mean Time Between Failure (MTBF):190,000 hours (~ 21 years) | |
Acoustic Noise: 0 dB | |
Network Protocol and Standards | IEEE 802.3i 10BASET |
IEEE 802.3u 100BASETX | |
IEEE 802.3x Flow Control | |
IEEE 802.1af DTE Power via MDI | |
IEEE 802.3af | |
Status LEDs | System: Power, PoE Maximum Power |
Per Port: Link, Activity, Speed, PoE Active, PoE Fault | |
Power Supply | Total Power Consumption: 60 W maximum |
PoE Watt budget: 56W | |
IEEE802.3af Power Consumption: 56W maximum (Ports 1 – 4) | |
48VDC, 1.25A power output; plug is localized to country of sale | |
Physical Specifications | Dimensions (H x W x D):28 x 85.2 x 118.7mm |
Weight:0.34kg | |
Environmental Specifications | Operating temperature: 0 to 55°C |
Storage temperature: -20 to 75°C | |
Operating humidity: 90% maximum relative humidity, non-condensing | |
Storage humidity: 95% maximum relative humidity, non-condensing | |
Operating altitude: 10,000 ft (3,000 m) maximum | |
Storage altitude: 10,000 ft (3,000 m) maximum | |
1.Q: Are you a poe switch factory or poe switch trading company?
A: We are poe switch manufacturer.
2.Q: Where is your poe switch factory located? How can I visit poe switch there?
A: Our poe switch factory is located in Shenzhen City, China. You can fly to Shenzhen Bao’an airport directly, and we
will pick you up. Welcome to visit our poe switch factory.
3.Q: How can I get some poe switch samples?
A: We are honored to offer you poe switch samples, pls contact our staff and leave detailed contact information, we promise to keep your information confidential.
4.Q: How does your poe switch factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality controlling from the start to the end. All our poe switch products have gained CE, FCC, ROHS certification.
5.Q:What can you do?
A:1.All of our poe switch products have proceeded aging test before shipment and we guarantee safety while using our poe switch products.
2.Support imprint your logo on poe switch products and let your logo shine anywhere. 3.OEM/ODM orders are warmly welcomed!
1. poe switch will be shipped within 1-3 business days.
2. Delivery Time:
Via Express: Generally 3-10 working days.
Via Air Mail: Generally 10-30 working days.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
5. We do not guarantee poe switch delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
6.The poe switch shipping cost does not include any import taxes, and buyers are responsible for customs duties.
7. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Customer satisfaction is our final goal!
If you are interested in our product,pls feel free to contact us, we are glad to establish bussiness relations with you.
