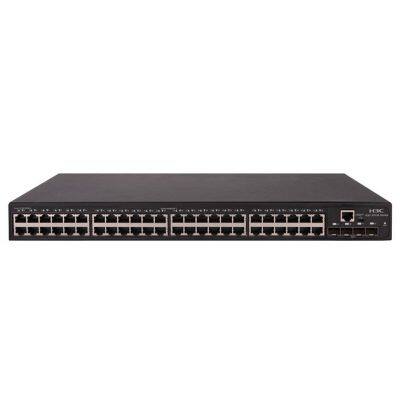

H3C 5130S-52S-EI-R Enterprise Switch - 48 Gigabit Ethernet + 4 SFP+ 10GE Ports, Layer 2/3 Managed Switch

?Detailed Specifications of H3C S5130S-52S-EI-R Switch??Core Specifications?

• ?Product Type?: Enterprise-grade Layer 2 intelligent switch (1U rack-mount)

• ?Port Configuration?:

• 48 × 10/100/1000BASE-T auto-negotiation Ethernet ports

• 4 × 10G SFP+ ports (supports stacking and high-speed uplinks)

• ?Switching Capacity?: 672Gbps/6.72Tbps

• ?Packet Forwarding Rate?: 207Mpps

?Key Features?

• ?IRF Stacking?: Supports stacking up to 9 devices for unified management

• ?VLAN?: Supports multi-layer VLAN (QinQ, Voice VLAN, Protocol VLAN)

• ?QoS?: Based on 802.1p/DSCP prioritization, supports traffic shaping and queue scheduling

• ?Security?: SSH 2.0, 802.1X authentication, MAC address binding, IP Source Guard

?Management & Maintenance?

• ?Management Modes?: CLI/Telnet/Web/iMC system, supports SNMP and RMON monitoring

• ?Power Supply?: AC 100-240V, typical power consumption 44-52W

• ?Operating Environment?: Temperature -5℃ to 45℃, humidity 5%-95% (non-condensing)

?Comparison with Variants?

?Warranty & Support?

• 1-year factory warranty (some channels indicate 3 years)

?Note?: This model is ?non-PoE?. For power supply, choose the ?PWR? variant.
