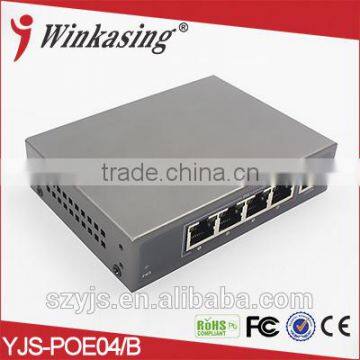

4 Ports Poe Switch for Cctv IP Camera Mini Size 60w YJS-POE-04B
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
4 Port Poe Switch Best Price for Cctv Camera
-
Poe Ethernet Switch 10 or 100mbps Half-duplex Poe Switch YJS-POE-16B
-
Poe 24v Output Switch 10 or 100mbps Half-duplex Poe Switch YJS-POE-16B
-
Hot-selling Aluminum Enclosure for Power Supply/electronic Case/electric Panel Box Metal Switch Box
-
Manufacture Supply High Quality Waterproof Outdoor Power Distribution Box With Best Price
-
Winkasing Power Supply Electrical Distribution Box/ Power Distribution Box
Product Details
| Place of Origin | Guangdong, China | Brand Name | Winkasing | |
| Model Number | POE-04B | Protection Level | IP40 | |
| Max. Current | 0.5~3A | Max. Voltage | 24V |
Product Description
Poe switch top good for cctv camera 5 ports poe switch 4 port for cctv
Product | 5-PORT 10/100 SWITCH WITH 4-PORT POE |
Type | YJS-POE04B |
Network Ports | 5 10/100Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
Power Pin Assignment | Data provided over pairs over 1/2and 3/6 ,Power over |
PoE Distance | 100m |
Transmission Method | Store-And-Forward |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
Performance Specifications | Bandwidth:1.6 Gbps |
Network latency:Less than 20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission | |
Buffer memory:96 KB embedded memory per unit | |
Address database size:1,000 media access control (MAC) addresses per system | |
Addressing:48-bit MAC address | |
Mean Time Between Failure (MTBF):190,000 hours (~ 21 years) | |
Acoustic Noise: 0 dB | |
Network Protocol and Standards | IEEE 802.3i 10BASET |
IEEE 802.3u 100BASETX | |
IEEE 802.3x Flow Control | |
IEEE 802.1af DTE Power via MDI | |
IEEE 802.3af | |
Status LEDs | System: Power, PoE Maximum Power |
Per Port: Link, Activity, Speed, PoE Active, PoE Fault | |
Power Supply | Total Power Consumption: 60 W maximum |
PoE Watt budget: 56W | |
IEEE802.3af Power Consumption: 56W maximum (Ports 1 – 4) | |
48VDC, 1.25A power output; plug is localized to country of sale | |
Physical Specifications | Dimensions (H x W x D):28 x 85.2 x 118.7mm |
Weight:0.34kg | |
Environmental Specifications | Operating temperature: 0 to 55°C |
Storage temperature: -20 to 75°C | |
Operating humidity: 90% maximum relative humidity, non-condensing | |
Storage humidity: 95% maximum relative humidity, non-condensing | |
Operating altitude: 10,000 ft (3,000 m) maximum | |
Storage altitude: 10,000 ft (3,000 m) maximum | |
