Product Details
Place of Origin | Guangdong, China | Brand Name | Winkasing | |
Model Number | ML-1102 |
Product Description

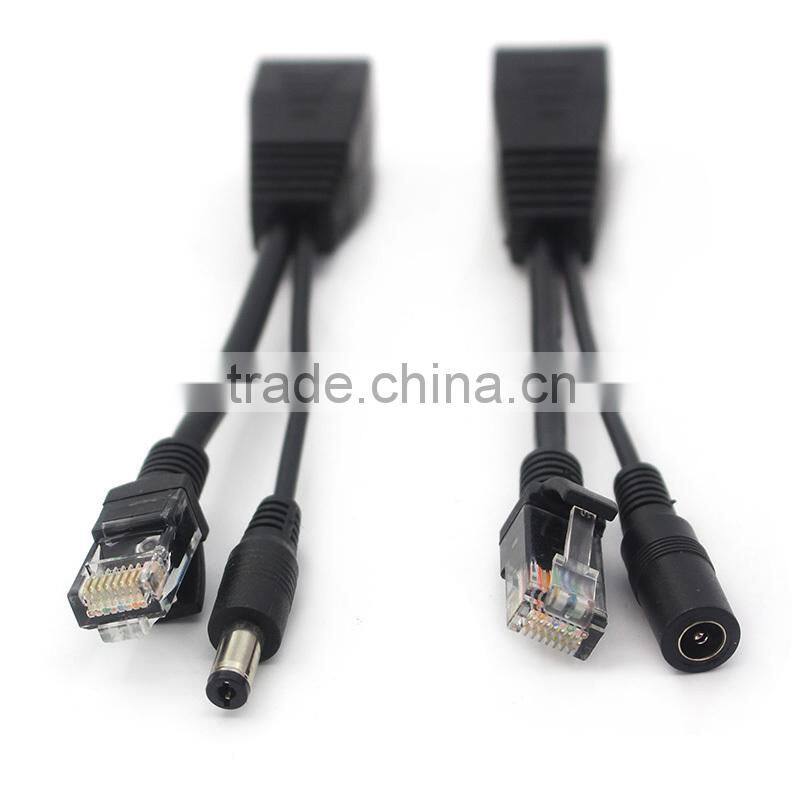

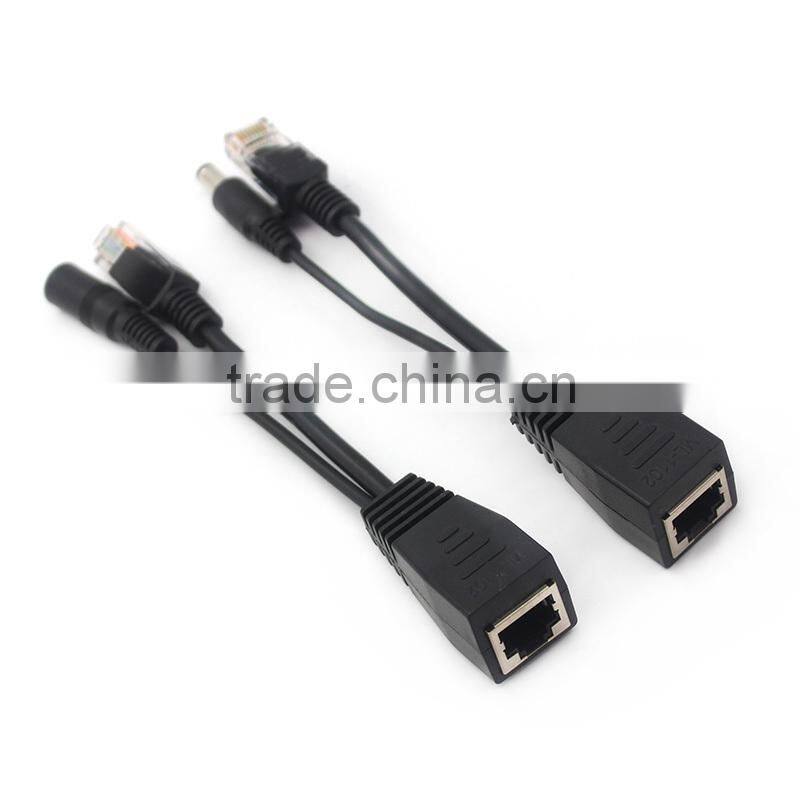

Passive POE Injector Kit 12V POE Splitter
Features
Splitter: RJ45 Female to RJ45 Male + Power Out
Passive PoE - means that input and output voltage are equal.
Works with all DC powered non-PoE devices
Supports 5V, 12V, 24V, 48V
Power supply required for power input - simply use the power supply (wall transformer) that is provided with the device you are trying to power.
Uses industry standard 5.5mm x 2.1mm power plugs
Can work up to 150ft (depending on the quality of the cable and the power draw of the device)
Power Output Specification
1.1 Data : Pins 12 / 36
1.2 Power : Pins 45(+) / 78(-)
1.3 Data in : PC / Hub / Switch
1.4 Connector : RJ-45
1.5 Wires : UL standard
1.6 Data rate : 10/100 Mbps
1.7 Ethernet cable : TIA/EIA 568 Cat.5 or Cat.5e
General Specification
2.1 Operation Temperature : 0°C ~ +40°C
2.2 Storage Temperature : -40°C ~ +70°C
2.3 Operation Humidity : 10% - 80% RH
2.4 Stroage Humidity : 5% - 90% RH
2.5 Case of material : PVC
2.6 DC Plus & Jacks : 2.1x5.5x12mm / 2.5x5.5x12mm
2.7 Cable Length : 150mm +10mm
2.8 Net Weight : 30g / Pair
2.9 One year warranty
With CE FCC RoHS certificates.
