infrared light, sun visor Explosion-proof integrated camera protective cover

Explosion-proof integrated camera protective cover

Material: 304 stainless steel

Features: with infrared light, sun visor

Grade: IP68

316 Explosion-proof integrated network instrument protective cover

Material: 304 stainless steel

Features: with infrared light

Grade: IP68

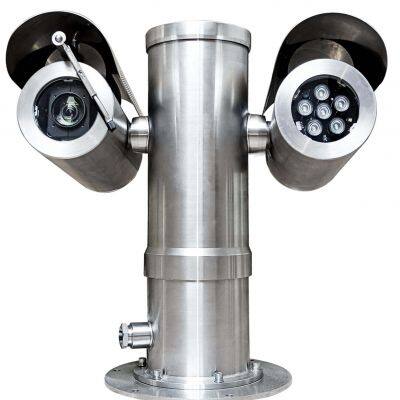

System Function Summary L R H B - 5 0 0 Explosion-proof Electric PTZ Technical Parameters

Mechanical Specifications

Material 304/316L

Protection Level IP66/IP68

Wiper Yes (Stepper Motor Drive)

Electrical Specifications

Power Supply AC100V~AC240V/AC24V/DC24V

Power Consumption ≤100w

Lightning Protection (Optional) TVS 6000V Lightning Protection, Surge Protection and Surge Protection, Comply with GB/T 17626.54 standard

Built-in optical fiber transmission (optional multimode/single mode

Environmental specifications

Working temperature -25℃~+70℃

Atmospheric pressure 80KPa~110KPa

Relative humidity 95% (no condensation)

Infrared function

Infrared distance 100 meters array infrared light

Infrared control support

PTZ function

Horizontal range 360° continuous rotation

Horizontal speed 0.1°~40°/S

Vertical range -90°~90°

Cruise scan support

Watch support

Preset point number 255/300 support technical customization according to contract signing

Power-off memory support

Automatic cruise support

Automatic patrol support

Automatic line scan support
