Home > Products > core drilling rig > XY-200 core drilling rig type gold panning drilling machine water well dring

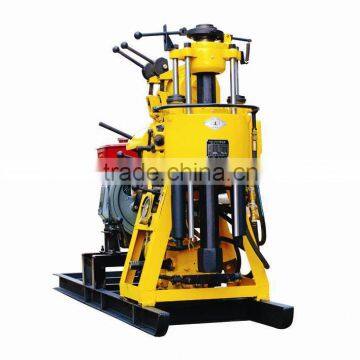

XY-200 core drilling rig type gold panning drilling machine water well dring
- Shanghai Wuhan
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
200m borehole drilling machine/water well drilling mahcine/core drilling machine XY-200
-
XY-130 water well 200m Electric motor or diesel engine drilling rig Quality Choice
-
Factory price for wire-line core rig XY-200
-
Hydraulic drilling rig geological core drilling equipment XY-130
-
Diesel engine tralier mounted type XY-130 diamond mining machines for sale
-
XY-200 core drilling machine for mineral exploration
Product Details
Place of Origin | Hubei, China | Brand Name | Shoukai | |
Model Number | XY-200 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Feature XY-200 water well drilling rig price:
XY-200 adopts oil hyduaulic automatic feeding system, big modulus gear transportation, wide rotary speed range and big torque light core drilling rig. It is suitable for geology survery exploration, road and building survey, jet grouting inspection hole, blast hole, small water well and micropiles hole drilling etc.
The characters of XY-200 core drilling rig are listed below:
1, it has oil hydraulic automatic feeding system, improved the drilling efficiency and reduce the labor intensity.
2, adopts ball clamp device rather than chuck and assembled with clamp positioning device to withdraw rods without turn off
3, It has the pressure gauge to monitor the situation inside the hole.
4, integrated hand shanks make operation easy.
5, compact structure, drilling rig and engine are installed on one chassis. small occupying area.
6, light weight, good disassembling, easy to transport, suitable for working on plain and mountain.
7, assembled with safety shield to protect the operator.
Main specification
rated bore depth 200m (no more than 220m)
rated open hole diameter 75mm~320mm
spindle rotation speed 64, 128, 287, 557 rpm
spindle stroke 450mm
spindle max. lifting force (single wire) 2500kg
drill rod diameter 42- 60mm
hole inclination angle 90~75°
drilling rig dimension 2.7*0.9*1.5
driling rig weight 880kg
diesel power 22KW
Related HQ,NQ,BQ accessories and drill tools:
"Shoukai " Brand Drilling Rig exported to Australia, South Africa, Vietnam, Philippines and other countries in the world.
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park,Huangshi city Hubei province, covering an area of over 40,000 square meters,our company has grown into a set of welding product ,machiningand assembly for the integration of large-scale ,professional drilling equipment manufacturing enterprises .Now we have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use.Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. Our company has CNC cutting machine, CNC boring machine, CNC machine tools and various manufacturing equipment, has strong ability of new product development and manufacturing.
6.We focus on development and earn several Utility Model Patent Certificates.
7. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
