XY-180 borewell drilling in land for drinking water
- shanghai guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Type | Core Drilling Rig | |
Power Type | Diesel | Place of Origin | Hubei, China | |
Brand Name | shoukai | Model Number | XY-180 | |
Usage | Ore | Power(W) | 22kw | |
Dimension(L*W*H) | 2.7*0.9*1.5 | Weight | 880Kg | |
Certification | ISO | Warranty | 6-month | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
XY-180 borewell drilling in land for drinking water
Feature:
1, Hydraulic-control drill mast, can be raised and put down by hydraulic cylinders,which saves time and worker labor.
2,Rubber track,the weight is lighter and does not hurt urban road, suitable for projects in city.
3,Four hydraulic jacks, can lift the machine to max.height 1.3m,so that the machine can be loaded onto and unloaded from truck compartment.Also they can be used for rig leveling and support at work.
4,24V electric-strat diesel engine reduces the operator`s labor intensity.
5, Independent BW-160 mud pump ,has bigger flow displacement and pressure, easy maintenance.
6,Optional installation of hydraulic twist tube machine(75-168mm),improve work efficiency and reduce labor costs.

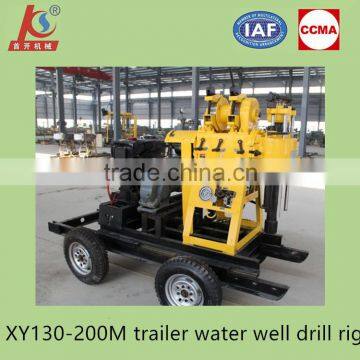

Portable tralier drilling rig main technical parameters
(Tech parameter)
| Model(YYseries is a movable slide type) | XY-130 | XY-180 | XY-200 |
Drilling depth(m) | 130 | 180 | 200 | |
Open hole dia(mm) | 220 | 220 | 325 | |
End hole dia(mm) | 75 | 75 | 75 | |
Drill rod dia(mm) | 42-60 | 42-60 | 42-60 | |
Drill angle(°) | 90-75 | 90-75 | 90-75 | |
Matching power(kw) | 13.2 | 13.2 | 15 | |
Weight without power(kg) | 3350 | 3400 | 3600 | |
Dimension(m) | 3.8*1.95*2.7 | 3.8*1.95*2.7 | 3.8*1.95*2.7 | |
(Spindle) | Speed(r/min) | 142/285/570 | 130/300/480/730/830/1045 | 64/128/287/557 |
Stroke(mm) | 450 | 450 | 450 | |
(Crawler chassis) | Crawler size(mm) | 350*90*48part | 350*90*48part | 350*90*48part |
climbing angle(°) | 20 | 20 | 20 | |
moving speed(km/h) | 10km/h | 10km/h | 10km/h | |
hydraulic landing leg valid height | 1300 | 1300 | 1300 | |
(Drill Mast) | Rated load(ton) | 18 | 18 | 18 |
Height(m) | 6.5 | 6.5 | 6.5 | |
(Mud pump) | Flow(L/min) | 160 | 160 | 160 |
ure(Mpa) | 1.3 | 1.3 | 1.3 | |
times/min | 165 | 165 | 165 | |
| Inlet hose dia(mm) | 51 | 51 | 51 |
Outlet hose dia(mm) | 32 | 32 | 32 |
Related accessories and drill tools:
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park, covering an area of over 40,000 square meters, our company specialized in R&D, manufacturing and marketing drilling rigs. We now have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use, exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2.We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. We focus on development and earn several Utility Model Patent Certificates.
6. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
Shoukai drilling machines have been delivered to North America, South Africa, Middle East and the Southeast Asia for several years.
We've owned good reputation from long-time customers both in domestic and abroad.
So we hope to establish good cooperation with more and more friends all over the world. We treat every customers as friends, so the best thing we wish is hearing you've received our machines well and are using our machines well.
We appreciate all your feedbacks. Thank you!
