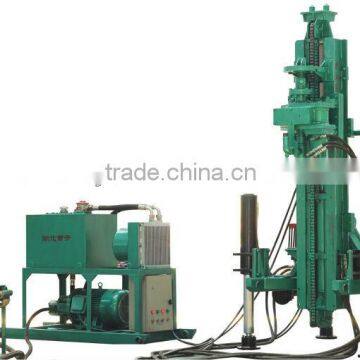

skid-mounted drilling rig SKMG70A
- shanghai guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Electric | Place of Origin | Hubei, China | |
| Brand Name | shoukai | Model Number | SKMG70A | |
| Usage | Ore | Voltage | 380v | |
| Power(W) | 22kw | Dimension(L*W*H) | 3100x1000x1500mm | |
| Weight | 1400kg | Certification | ISO9001-2008 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1,full hydraulic power head2,can be used in water conservancy, railway and road side slope
3,for anchoring hole, anchor wire.
1, strong power head
Cycloid motor and gear reductor forms drilling rig's strong power head, Transmit is stable with big torque.
Wear resisting Nylon plate avoids guide rail from wearing when power head operates.
2, flexible chassis
Choosing different mine wheel components in accordance with different gauge in the tunnel to make the drilling rig move its position. Four support hydro-cylinders can move individually. It can adjust the horizontality and verticality of guide rail fast so that the rig can drill high precise horizontal bore and vertical bore.
The height of horizontal bore can be largely improved when four support hydro-cylinder move at the same time.
3, support hydro-cylinder control valve
This will allow the four supportive hydro-cylinders to move as you wish. operator can adjust drilling rig's position or bore position conveniently.
4, reliable propulsion device
It adopts hydro-cylinder and chain feeding pattern with compact structure, big lifting force and good stability
| model | SKMG70A |
| horizontal bore depth | 35~80m |
| vertical bore depth | 50m |
| bore diameter | 110~230mm |
| drilling rod diameter | Φ76 x 1500mm, Φ89 x 1500mm |
| bore dip angle | 0~90° |
| whole rig horizontal up and down | 350mm |
| power head torque | 3900N·m |
| propulsion stroke | 1800mm |
| mast stroke | 500mm |
| max. lifting force | 30KN |
| max. propulsion force | 25KN |
| electric motor power | 22kw |
| weight | 1400kg |
| overall dimension | 3100x1000x1500mm |
