Home > Products > High Pressure Hose > Wire Braid Hydraulic Hose DIN-EN 857 1SC STANDARD

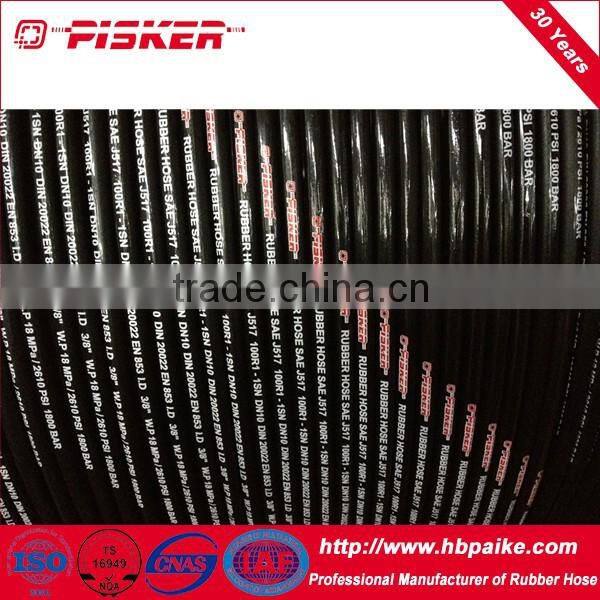

Wire Braid Hydraulic Hose DIN-EN 857 1SC STANDARD
US$ 1 - 2
/ Meter
1 Meter(Min. Order)
- tianjin xingang
You May Like
-
Wire Braid Hydraulic Hose DIN-EN 857 2SC STANDARD
-
Wire Spiral Hydraulic Hose DIN EN856 4SP STANDARD
-
Wire Spiral Hydraulic Hose DIN EN856 4SH STANDARD
-
Fibre Braided Hydraulic Hose SAE J517 TYPE 100 R3 STANDARD
-
Wire Braid Hydraulic Hose SAE J517 TYPE 100 R5 STANDARD
-
Wire Braid Hydraulic Hose SAE J517 TYPE 100 R6 STANDARD
Product Details
| Place of Origin | Hebei, China | Brand Name | pisker, pisker |
Product Description
Product Description
Wire Braid Hydraulic Hose: DIN-EN 857 1SC STANDARD
Tube : Oil resistant synthetic rubber
Reinforcement : one high tensile steel wire braid
Cover : Abrasion and weather resistant synthetic rubber
Temperature range : -40 °C to +100 °C
| DN | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
| inch | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
| 6 | 1/4 | 6.4 | 12.5 | 30 | 4350 | 120 | 17400 | 75 | 0.14 | 50/100 |
| 8 | 5/16 | 7.9 | 14.0 | 27.5 | 3980 | 110 | 15950 | 80 | 0.20 | 50/100 |
| 10 | 3/8 | 9.5 | 16.5 | 22.5 | 3263 | 90 | 13050 | 90 | 0.26 | 50/100 |
| 13 | 1/2 | 12.7 | 19.8 | 20 | 2900 | 80 | 11600 | 127 | 0.35 | 50/100 |
| 16 | 5/8 | 15.9 | 23.0 | 15 | 2175 | 60 | 8700 | 153 | 0.48 | 50/100 |
| 19 | 3/4 | 19.0 | 26.7 | 15 | 2175 | 60 | 8700 | 180 | 0.60 | 50/100 |
| 25 | 1 | 25.4 | 34.9 | 11 | 1595 | 45 | 6525 | 230 | 0.90 | 50 |
Packaging & Shipping
Our Services
Company Information
JIZHOU PARKER RUBBER HOSE CO,.LTD is a leading, professional & experienced supplier of hoses.
The Hose series include Hydraulic Hoses, Teflon Hoses, , Metal Flexible Hoses and Hose Fittings. All hoses are produced strictly under the standards of DIN EN and SAE 100.
Presently, we sell our products all over the world and have high prestige. We hope sincerely to cooperate with you. Contact us without any hesitation for more details.
hbpaike's tenets:
Consecutive Good Quality
The Lowest Prices
Timely Delivery
