High Pressure Fibre Braided Rubber Resin Hose SAE 100 R7/EN856 R7 STANDARD

FOB Price

US$ 1 - 2 / Meter

1 Meter(Min. Order)

Port tianjin xingang

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin

Hebei, China

Brand Name

pisker, pisker

Product Description

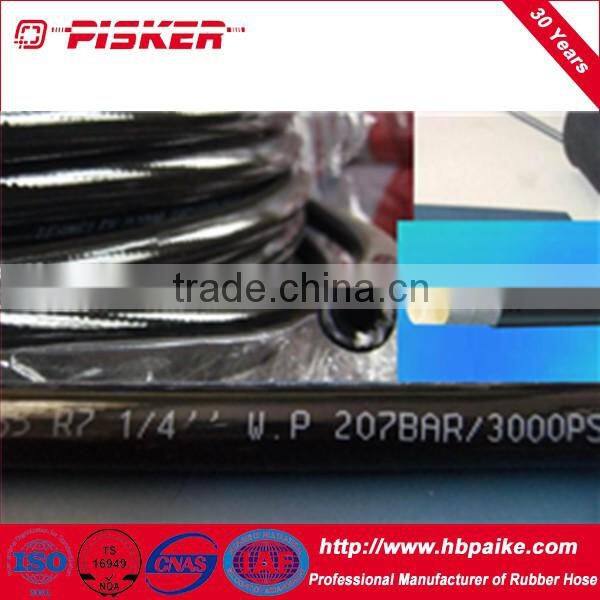

High Pressure Fibre Braided Rubber Resin Hose: SAE 100 R7/EN856 R7 STANDARD

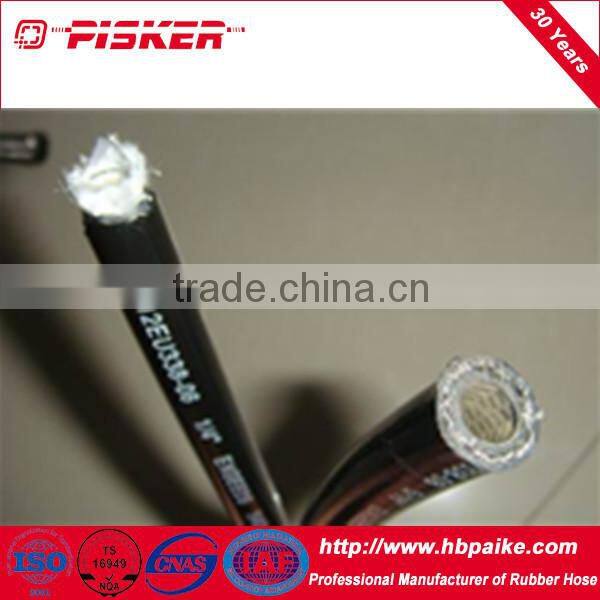

Structure and Capability : This kind of hose is made of Inner Tube (Nylon), reinforcement (High Flexibility Nylon or Thermoplastic). It is Ethereal, Flexible, and the inner tube is vety Smooth. With a few loss of Pressure, the hose resistance of the Medium flowing is small, and it also owns a fine performance of Anti-chemical and Impulse.

Application : Automobile, Engineering Machinery, Lathe,Agriculture Machine, Mining, Spurting the Oil Paint, Navigation&Spaceflight, Cooling and other Hydraulic Control System.

SAE100 R7 /EN 855 R7
DN	Hose I.D		Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
DN	inch	mm	mm	MPa	psi	MPa	psi	mm	kg/m	metres
3	1/8	3.3	8.5	17.2	2500	68.9	10000	13	0.037	20~100
5	3/16	4.8	10.8	20.7	3000	82.7	12000	20	0.068	20~100
6	1/4	6.4	13.0	20.7	3000	82.7	12000	33	0.085	20~100
8	5/16	7.9	15.1	17.2	2500	68.9	10000	46	0.103	20~100
10	3/8	9.5	17.0	15.5	2250	62.1	9000	51	0.141	20~100
13	1/2	12.7	20.7	13.8	2000	55.2	8000	76	0.210	20~100
19	3/4	19.0	27.1	8.6	1250	34.5	5000	127	0.287	20~100
25	1	25.4	34	6.9	1000	27.6	4000	203	0.542	20~100

SAE100 R8 /EN 855 R8
DN	Hose I.D		Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
DN	inch	mm	mm	MPa	psi	MPa	psi	mm	kg/m	metres
5	3/16	4.8	13.1	34.5	5000	137.9	20000	38	0.115	20~100
6	1/4	6.4	15.9	34.5	5000	137.9	20000	51	0.176	20~100
10	3/8	9.5	19.4	27.6	4000	110.3	16000	64	0.220	20~100
13	1/2	12.7	22.7	24.1	3000	96.5	14000	102	0.283	20~100
