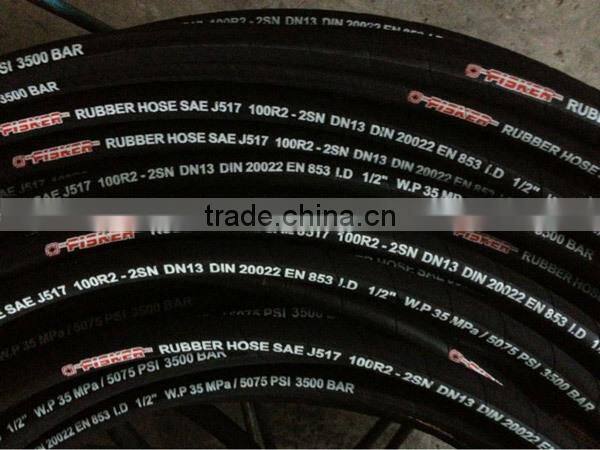

Steel Wire Braided High Pressure Rubber Hose DIN EN853 1SN

1>SAE 100 R1 AT / DIN EN 853 1SN :

SINGLE WIRE BRAID HOSES (SAE 100R1AT, EN 853 1SN)

rubber hose Tube: Oil resistant synthetic rubber

rubber hose Reinforcement: One steel wire braid

rubber hose Cover: Oil, abrasion and weather resistant synthetic rubber. MSHA approved

rubber hose Temperature Range: -40°Cto 100°C (-40° to 212°F), petroleum base fluids intermittent to 125°C (257°F).

rubber hose Application: ideally suited for medium pressure hydraulic oil lines, return lines, grease lines, water lines and power steering hoses.

2>SAE 100 R2 AT / DIN EN 853 2SN :

Tube : Oil resistant synthetic rubber
Reinforceent : two high tensile steel wire layers 2 w
Cover Compound : Abrasion and weather resistant synthetic rubber
Temperature range : -40 °C to +100 °C

3>DIN-EN 856 4SH/4SP Hose :

 1. Tube: Oil resistant synthetic rubber.

2. Reinforcement: Four high tensile steel wire spiral layers (4W/S)
3. Rubber  hose Cover: Abrasion and weather resistant synthetic rubber, MSHA accepted.
4. Temperature range: - 40 Centigrade to + 125 Centigrade

4>Air rubber hose

Be applicable for transfer pressed air and inert gasses in mineral field, civil construction

This kind of rubber hose has excellent air tightness, old-resistance and abrasive-resistance Bursting pressure is not less 4 times than the normal working pressure

SAE/DIN high tensile steel wire hydraulic rubber hose
