Home > Products > High Pressure Hose > Multi Spiral Hydraulic Hose SAE J517 TYPE 100 R12 STANDARD

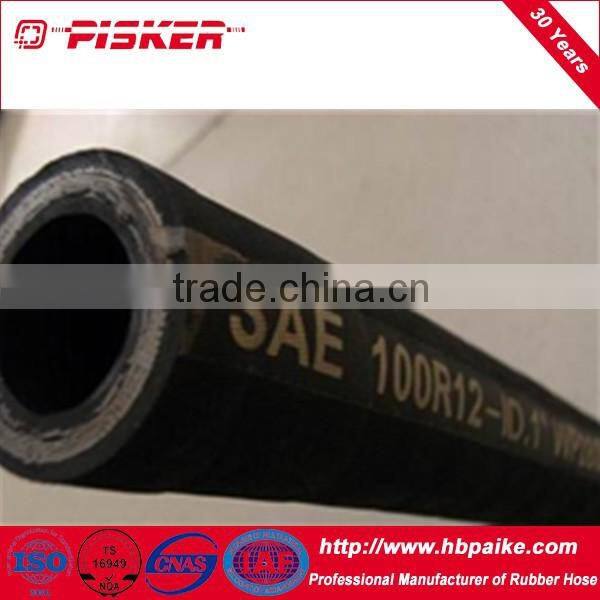

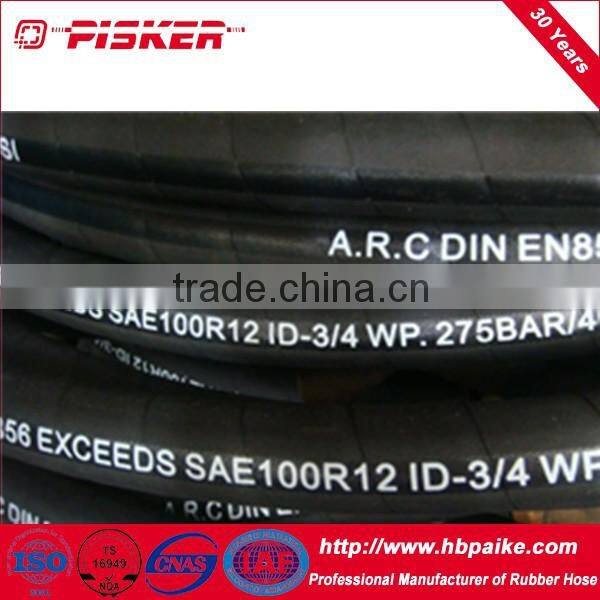

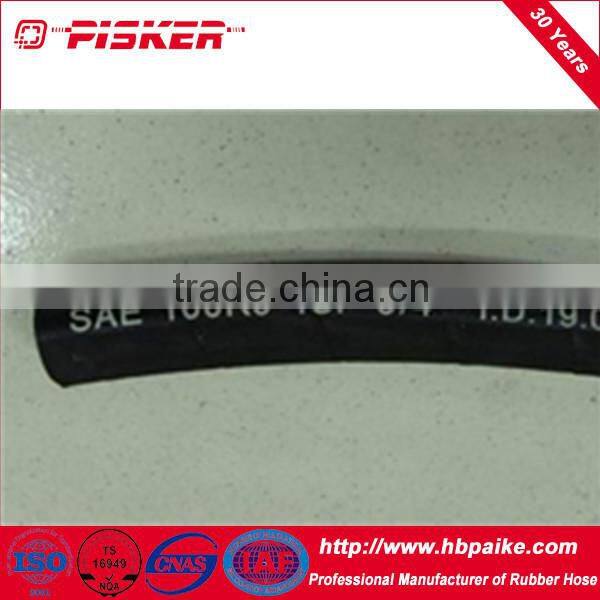

Multi Spiral Hydraulic Hose SAE J517 TYPE 100 R12 STANDARD
US$ 1 - 2
/ Meter
1 Meter(Min. Order)
- tianjin xingang
You May Like
-
Multi Spiral Hydraulic Hose SAE J517 TYPE 100 R13 STANDARD
-
Wire Braid Hydraulic Hose SAE J517 TYPE 100 R16 STANDARD
-
Oil Suction and Discharge Hose Oil Delivery Transfer Hose
-
One Wire Braided Steam Hose / Tube / Pipe
-
One Wire Braided Steam Hose / Tube / Pipe High Working Pressure
-
High Pressure Hydraulic Hose
Product Details
| Place of Origin | Hebei, China | Brand Name | pisker, pisker |
Product Description
Product Description
Multi Spiral Hydraulic Hose: SAE J517 TYPE 100 R12 STANDARD
Tube : Oil resistant synthetic rubber
Reinforcement : four high tensile steel wire spiral layers ( 4 W/S )
Cover : abrasion and weather resistant synthetic rubber
Temperature range : -40°C to +121°C
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
| 10 | 3/8 | 9.5 | 17.2 | 20.3 | 27.5 | 4000 | 110.3 | 16000 | 125 | 0.62 | 20 to 40 |
| 13 | 1/2 | 12.7 | 20.7 | 23.8 | 27.5 | 4000 | 110.3 | 16000 | 180 | 0.85 | 20 to 40 |
| 16 | 5/8 | 15.9 | 24.6 | 27.4 | 27.5 | 4000 | 110.3 | 16000 | 200 | 1.29 | 20 to 40 |
| 19 | 3/4 | 19.0 | 27.7 | 30.7 | 27.5 | 4000 | 110.3 | 16000 | 240 | 1.47 | 20 to 40 |
| 25 | 1 | 25.4 | 34.9 | 38.0 | 27.5 | 4000 | 110.3 | 16000 | 300 | 2.0 | 20 to 40 |
| 32 | 1 1/4 | 31.8 | 43.9 | 47.0 | 20.7 | 3000 | 82.7 | 12000 | 420 | 2.86 | 20 to 40 |
| 38 | 1 1/2 | 38.1 | 50.4 | 53.5 | 17.2 | 2500 | 68.9 | 10000 | 500 | 3.24 | 20 to 40 |
| 51 | 2 | 50.8 | 63.7 | 66.7 | 17.2 | 2500 | 68.9 | 10000 | 630 | 4.8 | 20 to 40 |
