Low fuel consumption 687.5KVA Daewoo diesel generator sets

FOB Price

USD $1 - $99,999 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

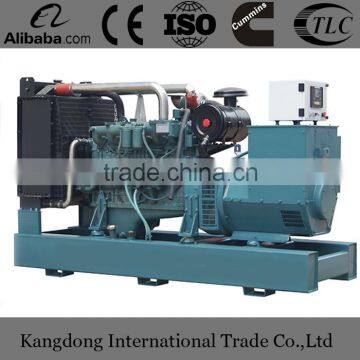

Low fuel consumption 687.5KVA Daewoo diesel generator set

1. Specification of genset
Gensets model				KD-550GF
Prime power(KVA)				688
Rated Voltage(V)				380
Rated frequency(HZ)				50
Rated Speed (rpm)				1500
Power Factor(COS)				0.8(lagging)
Dimensions(mm) (L×W×H)				3600x1420x1700
Net Weight(kg)				4200
2. Specification of diesel engine
Engine brand				DAEWOO
Engine model				P222LE
Number of Cylinders				12
Cylinder arrangement				V-type
Cycle				Four stroke
Aspiration				Turbo charged and Air /Air cooling
Fuel System				Electronic Fuel Injection System
Bore×Stroke (mm×mm)				128x142
Displacement (Liter)				21.927
Compression Ratio				15.0:1
Speed Governor				Electronic
Cooling System				Forced Water Cooling Cycle
Total lubrication system capacity (L)				45
Fuel Consumption at 100% Load (g/kwh)				134
Starting Method				DC24V electrical starting
3. Specification of alternator
Alternator brand				kAIJIELI
Alternator model				TWGII354E
Number of Phase				3
Connecting Type				3 Phase and 4 Wires
Number of Bearing				1
Protection Grade				IP21
Altitude				≤1000m
Exciter Type				Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class				H
Telephone Influence Factor (TIF)				≤50
THF				≤2%
Voltage Regulation, Steady State				≤±1%
Transient State Voltage				≤-15%~+20%
