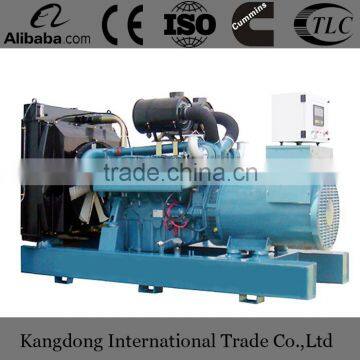

300KW Diesel power Genset by DOOSAN Dawoo
- 200 Set / Sets per Month
- SHANGHAI OR OTHER MAIN PORT OF CHINA
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High quality 200kw doosan daewoo diesel power genset supplier with CE certificate
-
2014 new design doosan daewoo diesel genset with CE certificate
-
500KW Diesel Genset power by DOOSAN water cooling P222LE-S
-
120KW water cooling Diesel Genset powered by DOOSAN diesel generator P086TI-1
-
120kw Diesel power Genset by DOOSAN water cooling generating set
-
original 75kw DOOSAN daewoo generator diesel prices for sale
Product Details
| Place of Origin | Jiangsu, China | Brand Name | KANGDONG | |
| Model Number | KD-500GF | Output Type | AC Three Phase | |
| Speed | 1500RPM | Frequency | 50HZ | |
| Rated Power | 500KW | Rated Voltage | 400/230V | |
| Rated Current | 902A |
Product Description
300KW Diesel power Genset by DOOSAN Dawoo
the advantage of our genset:
1.high quality reliable and complete power unit.
pact design.
3.easy start and maintenance possibility.
4.our generating set is subject to a comprehensive test program which includes full load testing checking and provision of all contral and safety shut down functions testing
| 1.Genset Technical Data: | |||||||||
| Gensets model | KD-300GF | ||||||||
| Prime power | 300KW/540kVA | ||||||||
| Rated speed | 1500RPM | ||||||||
| Output frequency | 50Hz | ||||||||
| Power Factor | 0.8 | ||||||||
| Phase | 3 | ||||||||
| Rated voltage | 400/230V | ||||||||
| Dimensions(mm) (L×W×H) | 3600*1420*1700 | ||||||||
| Genset Weight(kg) | 4200 | ||||||||
| Prime Power: | |||||||||
This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12. | |||||||||
| Standby power: | |||||||||
This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No verload is permitted. | |||||||||
| Rated voltage : | |||||||||
| Available with customer requirements. | |||||||||
| 2. Specification of diesel engine: | |||||||||
| Engine brand | DOOSAN | ||||||||
| Engine model | P158LE-1 | ||||||||
| Number of Cylinders | 12 | ||||||||
| Cylinder arrangement | 12 in "V" | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Turbo,Air/Air Cooling | ||||||||
| Fuel System | BOSCH P type fuel pump | ||||||||
| Bore×Stroke (mm×mm) | 128 x 142 | ||||||||
| Displacement (Liter) | 21.927 | ||||||||
| Compression Ratio | 14.6:1 | ||||||||
| Speed Governor | Electrical | ||||||||
| Cooling System | Forced Water Cooling Cycle | ||||||||
| Speed Stability (%) | ≤1% | ||||||||
| Total lubrication system capacity (L) | 40 | ||||||||
| Fuel Consumption at 100% Load (L/h) | 130 | ||||||||
| Starting Method | DC24V Electrical starting | ||||||||
| 3. Specification of alternator | |||||||||
| Alternator brand | Stamford | ||||||||
| Alternator model | HCI544F-S | ||||||||
| Number of Phase | 3 | ||||||||
| Connecting Type | 3 Phase and 4 Wires | ||||||||
| Number of Bearing | 1 | ||||||||
| Protection Grade | IP23 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type | Brushless ,Self-exciting | ||||||||
| Insulation Class | H | ||||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% | ||||||||
1.Q:What's the power range of your generator sets?
A:The main products are ranging from 5KW to 2500KW.
2.Q:How many types of the generator sets do you have?
A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.
3.Q:Where is your factory located?
A: Our factory is in Taizhou city, Jiangsu Province, China.
It's near Shanghai & Ningbo port.
4.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
5.Q:How about quality control in your factory?
A:"Quality is the life".
We are always paying great attentions to
quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
FAQ:
1.Q:What's the power range of your generator sets?
A:The main products are ranging from 5KW to 2500KW.
2.Q:How many types of the generator sets do you have?
A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.
3.Q:Where is your factory located?
A: Our factory is in Taizhou city, Jiangsu Province, China.
It's near Shanghai & Ningbo port.
4.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
5.Q:How about quality control in your factory?
A:"Quality is the life".
We are always paying great attentions to
quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
