Heavy Duty 80mm Ticket Thermal Kiosk Printer SK1-31ASF4-Q-ST Autocutter

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port EXW Warsaw
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	Other, kiosk
Style	Black And White	Use	Barcode Printer
Interface Type	Other, Serial (RS-232C) + USB (ver.2.0)	Max Paper Size	80mm
Black Print Speed	200mm/s	Color Print Speed	n/a
Max. Resolution	203DPI/8 Dots/mm	Brand Name	Star Micronics
Model Number	SK1-31ASF4-Q-ST	Place of Origin	Japan

Product Description

High speed, high reliability, low cost Thermal Kiosk Printer SK1-31ASF4-Q-ST

Features:

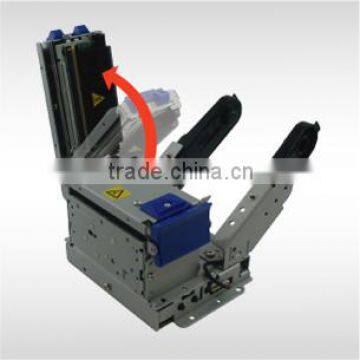

Fully opening paper cover provides easy paper insert
3-inch Paper width (58/60/80/83mm)
200mm/sec. (max.) high speed printing

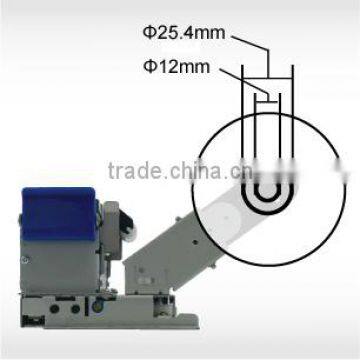

Paper core diameter 12/25.4mm changeable

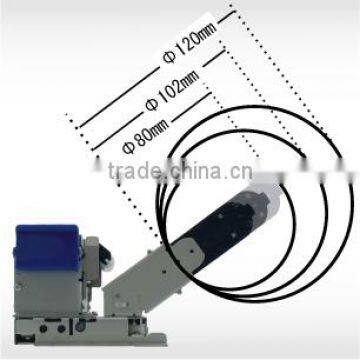

Paper diameter upto 120mm available (by change of paper holder position)
150µm thick paper available (thickness from 59µm to 150µm)
Interface: RS-232C,USB

    - Selectable paper holder positions for 83mm and 102mm paper roll
    - Paper core: Adapts 3 differnt cores(12mm, 17mm & 25.5mm)
    - Paper width: Adapts 4 different width(58mm, 60mm, 80mm & 82.5mm)
    - Prints thick papers up to150µm, labels and fan hold papers
    2 way easy paper loading (Head side open systems and auto loading systems)
    Flexible paper setting
    Wide temperature and humidity range
    Barcode printing
    Long service life and high reliability

Printing method		Direct line thermal
Paper width		58mm / 60mm / 80mm / 83mm
Print width		54mm / 56mm / 72mm / 80mm
Number of dots		432 dots / 448 dots / 576 dots / 640 dots
Resolution		8 dots/mm (203dpi)
Printing speed		200mm/sec. (max.) *1
Interface		Serial(RS-232C/max. 115.2kbps), USB2.0
Character type	ASCⅡ	PC437/850/852/857/858/863/865/866/860/862, WPC1252/1252_2/1254/1250/1251
Character type	Download	Available
Font / Dots / Lines	Printing width	54mm / 56mm / 72mm / 80mm
	ASCⅡ 16 dots	8 x 16 dots (WxH), 54/56/72/80 lines
	ASCⅡ 24 dots	12 x 24 dots (WxH), 36/37/48/53 lines
Paper sensor		Near end sensor/ Reflection sensor / Gap sensor (option)
Memory		Input buffer 8k bytes, User memory, Non-volatile memory
Logo registration		Download bit image
Barcode	1D	UPC-A/E, JAN13/8, CODE39, ITF, CODABAR, CODE128
Barcode	2D (option)	QR, Maxicode, MicroPDF417, PDF417, DataMatrix
Command systems		ESC/POS Conformity *2
Regulation		VCCI, FCC, CE, CLASS A
Printing life		Pulse activition: 200 million pulses or more Abrasion resistance: 150Km or more
Cutter life		Cutting life: 1.5 million cuts or more (Thickness: 75µm or less)
Power supply		DC power supply: DC 24V±5% / TYP 3A (Peak 7.5A)
Current consumption		Standby: 70mA or less Printing: Ave. 2.5A *3
Operating environment	Temperature	-20 to 60 ℃ Printing quality is guaranteed from +5 to 40 ℃
Operating environment	Humidity	20%RH to 85%RH (No condensation)
Storage environment	Temperature	-30 to 70 ℃
Storage environment	Humidity	10%RH to 90%RH (No condensation)
Dimensions		127(W) x 137.3(D) x 79.5(H) mm (without paper roll)
Weight		630g (without paper roll)
