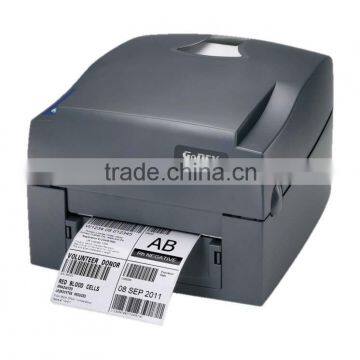

Thermal Transfer Barcode Printer G530-UES (USB, RS232, Ethernet), 300dpi, 4"

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port EXW Warsaw
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	Other, Thermal Transfer
Style	Black And White	Use	Barcode Printer
Interface Type	Other, Available interfaces: USB2.0, Serial and Ethernet	Max Paper Size	118mm(MAX)
Black Print Speed	102mm/s	Color Print Speed	n/a
Max. Resolution	300dpi	Brand Name	Godex
Model Number	G530-UES	Place of Origin	Taiwan, China

Product Description

4" barcode Printer (thermal transfer), easy paper loading, print width 105.7mm, 300 dpi, fast printing speed (max. 102mm/s), USB, RS232, Ethernet; free GoLabel label design software

High-Tech Power with a Customer Friendly Price

- 300 meter ribbon plus the optional label stand provides maximum printing volume
- "Twin-Sensor" technology allows you to use a broad range of labels
- Available interfaces: USB2.0, Serial and Ethernet
- Strong and stable mechanism design for long term reliability
- 300 DPI model

Print Method: Thermal Transfer / Direct Thermal
Resolution: 300 dpi (12 dots/mm)
Print Speed: 4IPS (102 mm/s)
Print Width: 4.16" (105.7 mm)
Print Length: Min. 0.16” (4 mm)**; Max. 30” (762 mm)
Memory: 8MB Flash (4MB for user storage) / 16MB SDRAM
Sensor Type: Adjustable reflective sensor. Fixed transmissive sensor, central aligned

Media
Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max.
Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.25 mm) Max.
Label roll diameter: Max. 5” (127 mm)
Core diameter: 1”, 1.5”, 3" (25.4 mm, 38.1 mm, 76.2 mm)

Ribbon
Types: Wax, wax/resin, resin
Length: 981’ (300 m)
Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max
Ribbon roll diameter.: 2.67“ (68 mm)
Core diameter: 1” (25.4 mm)

Printer Language: EZPL, GEPL, GZPL auto switch

Software: Label design software: QLabel-IV (for EZPL only), GoLabel (for EZPL only)
Driver: Windows 2000, XP, Vista, 7, Windows Server 2003 & 2008
DLL: Windows 2000, XP and Vista

Resident Fonts
Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable

Download Fonts
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable

Barcodes
1-D Bar codes: Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM and GS1 DataBar
2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code

Code Pages: CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737; WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257; Unicode (UTF8, UTF16)
Graphics: Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces: USB, RS232, Ethernet
Control Panel: Two bi-color status-LEDs: Ready, Status, Control key: FEED
Power: Auto Switching 100-240VAC, 50-60Hz
Environment: Operation temperature: 41°F to 104°F (5°C to 40°C) / Storage temperature: -4°F to 122°F (-20°C to 50°C)
Humidity: Operation: 30-85%, non-condensing / Storage: 10-90%, non-condensing.
Agency Approvals: CE(EMC), FCC Class A, CB, cUL, CCC
Dimension: Length: 11.2” (285 mm) / Height: 6.8” (171 mm) / Width: 8.9” (226 mm)
Weight: 6 lbs (2.72Kg) ,excluding consumables
Options: Cutter Module; Label Dispenser; External label roll holder for 10” (250 mm) O.D. label rolls; External label rewinder
