Home > Products > Label printers > Thermal Transfer Barcode Printer (USB, RS232, Ethernet), LCD, 300dpi, 4" RT730i

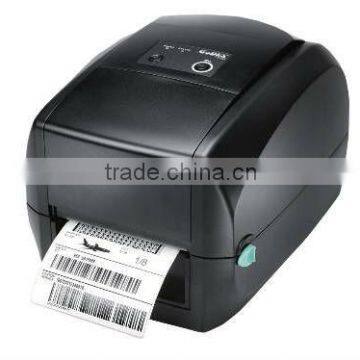

Thermal Transfer Barcode Printer (USB, RS232, Ethernet), LCD, 300dpi, 4" RT730i

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port EXW Warsaw
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	Other, Thermal Transfer Printer
Style	Black And White	Use	Barcode Printer
Interface Type	Other, USB 2.0; Serial port: RS-232 (DB-9); Ethernet 10/100 Mbps	Max Paper Size	118mm(MAX)
Black Print Speed	102mm/s	Color Print Speed	n/a
Max. Resolution	300dpi	Brand Name	GODEX
Model Number	RT730I	Place of Origin	Taiwan, China

Product Description

Powerful 4" Barcode Printer for most demanding jobs, (thermal transfer), easy paper loading, print width 105.7mm, 300 dpi, fast printing speed (max. 127mm/s), USB, RS-232, Ethernet (LAN), USB host; free GoLabel label design software

Full functions, powerful features, user friendly interface and high extensibility make the RT730i perfect for retail and industrial applications.

- Modern clam-shell design makes it simple to load labels
- Color TFT LCD and operation panel for easy and intuitive operation
- Ethernet, USB 2.0, Serial and USB host are standard features adding flexibility and power
- Rod-less label roll holder for easy loading and smooth feeding
- Innovative “C” button makes label Calibration simple and fast
- EZPL, GEPL and GZPL language support
- Free GoLabel label design software
- 300 DPI model

Print Method: Thermal Transfer / Direct Thermal
Resolution: 300 dpi (12 dots/mm)
Print Speed: Up to 5 IPS (127 mm/s)
Print Width: 4.16" (105.7mm)
Print Length: Min. 0.16” (4 mm); Max. 30” (762 mm)
Memory: 8MB Flash (4MB for user storage) / 16MB SDRAM
Sensor Type: Fixed transmissive sensor and reflective sensor, central aligned; Adjustable reflective sensor (full range)

Media
Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max.
Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.2 mm) Max.
Label roll diameter: Max. 5” (127 mm)
Core diameter: 1”, 1.5” (25,4 mm, 38,1 mm)

Ribbon
Types: Wax, wax/resin, resin
Length: 981’ (300 m)
Width: 1.18” (30 mm) Min. - 4.33” (110 mm) Max.
Ribbon roll diameter.: 2.67“ (68 mm)
Core diameter: 1” (25.4 mm)

Printer Language: EZPL, GEPL, GZPL auto switch
Software: Label design software: GoLabel (for EZPL only)
Driver & DLL: Windows 2000, XP, Vista, 7, Windows Server 2003 & 2008

Resident Fonts:
Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable

Download Fonts:
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable

Barcodes
1-D Bar codes: Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar
2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code, Aztec code

Code Pages: CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737; WINDOWS 1250, 1251, 1252, 1253, 1254, 1255,1257; Unicode (UTF8, UTF16)
Graphics: Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces: USB 2.0; Serial port: RS-232 (DB-9); Ethernet 10/100 Mbps
Control Panel: Color TFT LCD with navigation button; Power on/off button; Calibration button
Power: Auto Switching 100-240VAC, 50-60Hz
Environment: Operation temperature: 41°F to 104°F (5°C to 40°C) / Storage temperature: -4°F to 122°F (-20°C to 50°C)
Humidity: Operation: 30-85%, non-condensing / Storage: 10-90%, non-condensing
Agency Approvals: CE(EMC), FCC Class A, CB, CCC, cUL
Dimension: Length: 11.0” (280 mm) / Height: 7.3” (186 mm) / Width: 8.3” (210 mm)
Weight: 6.6 lbs (3.0 Kg) ,excluding consumables

Options
Bluetooth module
Guillotine Cutter
Label Dispenser
External label roll holder for 10” (250 mm) O.D. label rolls
External label rewinder
