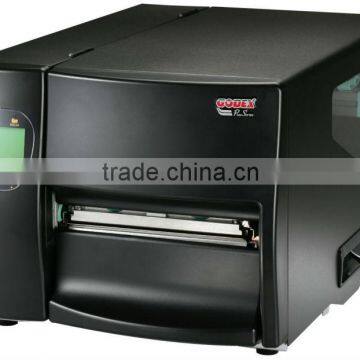

Thermal Transfer Barcode Industrial Printer EZ6200 , 203dpi

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port EXW Warsaw
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	Other, thermal printer
Style	Black And White	Use	Barcode Printer
Interface Type	Other, WLAN, Ethernet, others	Max Paper Size	178mm
Black Print Speed	150mm/s	Color Print Speed	n/a
Max. Resolution	203dpi	Brand Name	GODEX
Model Number	EZ6200	Place of Origin	Taiwan, China

Product Description

Industrial 6" barcode printer, (thermal transfer); 203dpi, with back-lit LCD display, USB, Serial, Ethernet, Print Speed: 150 mm/s

- Print Modes: Thermal transfer and direct thermal
- Tool-less for print head replacement
- Automatically detecting print head resolutions while change print head
- Multifunction Panel with back-lit LCD display for easy user interface and operation
- Modular concept for ease of maintenance
- Ethernet interfaces, USB, Serial and Compact Flash socket as standard to save the investment
- WLAN interface, Parallel, Rotary cutter, Peeler, Unwinder and rewinder are optional
- Bundled barcode QLabel Software for easily designing of labels and database integration
- Automatic self adjustment for coated inside/outside ribbons (CSO/CSI)

Print Method: Thermal Transfer / Direct Thermal
Resoltuion: 203 dpi (8 dots/mm)
Print Speed: 6 IPS (150 mm/s)
Print Width: 6.61" (168 mm)
Print Length: Min. 0.16” (4 mm)**; Max. 118” (3000 mm)
Memory: 4MB Flash (2MB for user storage) / 16MB SDRAM
Sensor Type: Adjustable, left aligned see-through sensor and reflective sensor

Media
Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 2” (50.8 mm) Min. - 7" (178 mm) Max.
Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.25 mm) Max.
Label roll diameter: Max. 8” (203.2 mm) with 3" (76.2 mm) core / Max. 6” (152.4 mm) with 1.5" (38.1 mm) core
Core diameter: 1.5" - 3" (38.1 mm - 76.2 mm)

Ribbon
Types: Wax, wax/resin, resin
Length: 1476’ (450 m)
Width: 2.36” Min - 6.85” (60 mm - 174 mm) Max
Ribbon roll diameter: 2.99“ (76 mm)
Core diameter: 1” (25.4 mm)
Auto ink insede and ink outside

Printer Language: EZPL, GEPL (Godex Eltron® Printer Language), GZPL (Godex Zebra® Printer Language)

Software
Label design software: QLabel-IV (for EZPL only)
Driver: Windows 2000, XP, Vista, 7, Windows Server 2003 & 2008
DLL: Windows 2000, XP and Vista

Resident Fonts
Bitmap fonts 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable

Download Fonts
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable

Barcodes
1-D Bar codes: Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar
2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code and Micro QR code
Code Pages: CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737; WINDOWS 1250, 1251, 1252, 1253, 1254, 1255; Unicode (UTF8, UTF16)
Graphics: Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces: USB port; Serial port: RS-232(DB-9); Ethernet 10/100Mbps print server (default off; disables USB when in use); CF Card socket; Control Panel:
Backlit graphics LCD display: 128 x 64 dots or 4 lines x 16 characters
Three mono-color status-LEDs: Power on, Ribbon out, Media out
Control keys: FEED, PAUSE and CANCEL
Real Time Clock: Standard
Power: Auto Switching 100-240VAC, 50-60Hz
Environment: Operation temperature: 41°F to 104°F (5°C to 40°C) / Storage temperature: -4°F to 122°F (-20°C to 50°C)
Humidity: Operation: 30-85%, non-condensing / Storage: 10-90%, non-condensing.
Agency Approvals: CE(EMC), FCC Class A, CB, cUL, CCC
Dimension: Length: 20.31" (516 mm) x Height: 11.22” (285mm) x Width: 13.58”
