Cctv 2mp ip Camera Board
US$ 16.9 - 17.5
/ Piece
1 Piece(Min. Order)
- Shenzhen/ HK
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | CCDCAM | |
| Model Number | IPB200L | Type | IP Camera | |
| Style | Other, camera main board | Sensor | CMOS | |
| Technology | NetWork | Special Features | Other, 2 Megapixel |
Product Description

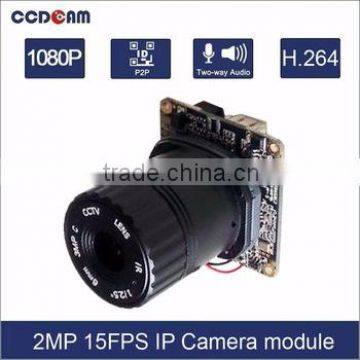

cctv 2mp surveillance camera board
* 38*38 single board
* 10/100m RJ45 interface
* two-way audio interface
* USB WIFI interface(need firmware support)
* HI3516CV200 H.264 processor
* support H.264/MJPEG output
* 2MP(1920*1080) @15fps
* 1.3MP(1280*960)@25fps
Camera module board Specification
| Model | IPB200L | ||
| Module Type | 2MP IP camera Module | ||
| Module | Image Sensor | 1/3 inch 2.0MP CMOS 0803 | |
| Effective Pixels | 1920(H)x1080(V) | ||
| DSP | Hisilicon 3518EV200 | ||
| Day/Night | IR-cut | ||
| Min.Illumination | Color 0.2Lux/F1.2; B/W 0.05Lux/F1.2 | ||
| Electronic Shutter | 1s-1/100,000s | ||
| Lens | 6mm CS Lens | ||
| Lens Mount | CS Mount | ||
| Compression | Compression standard | H.264 / MJPEG | |
| Video frames | Real-time 1-25fps Adjustable | ||
| Video stream output | Support adjustable stream 0.1M ~ 10Mpbs | ||
| Image | Quality | AWB, AGC, BLC,HDR up to 80dB | |
| Resolution | Main Stream: Real-time,1920×1080@15fps; 1280×960@25fps | ||
| Sub Stream:640×360,352×288,320×180(0~25fps) | |||
| Network | Parameter settings | WEB configure and OSD supported, | |
| Transmission ;Motion detection | |||
| Protocol | Onvif/PPPOE/DHCP/DDNS/P2P/HTTP | ||
| Intelligent Alarm | Support Motion Detection, Linkage Alarm, Linkage recording, | ||
| Sensor trigger alarm functions | |||
| Privacy Mask | Support 4 area can be set | ||
| Basic | Anti-flicker, Dual stream, Password protection | ||
| Interface | Video output | RJ45 | |
| Power | DC jack : 12V | ||
| Network interface | RJ45 10M/100 MEthernet port | ||
| Audio | G.711 1ch input + 1ch output | ||
| Other | Work environment | -10℃~60℃90%RH | |
| If you need POE module please consult with us. | |||
