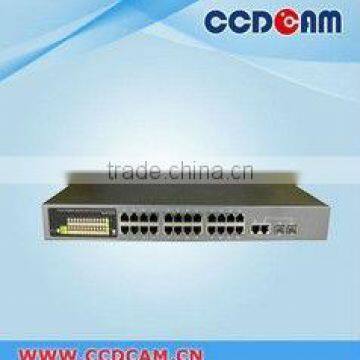

IP Camera power supply switch 24 RJ45 Port 16CH POE Switch
- 30000 Piece / Pieces per Month
- HK/Shenzhen
- Credit Card
You May Like
-
72pcs IR LEDs 60m IR distance Waterproof IR bullet cctv camera
-
H.264 CCTV Onvif P2P 8CH Standalone HVR Recorder for IP/CCTV camera
-
Sony CCD,650tvl,dwdr,DNR,OSD cctv 80M IR IP66 Waterproof outdoor digital camera
-
Sony CCD,650tvl,dwdr,DNR,OSD cctv 80M IR IP66 Waterproof ccd security camera
-
Sony CCD,650tvl,dwdr,DNR,OSD cctv 80M IR IP66 Waterproof outdoor long ir range cctv cameras
-
Sony CCD,650tvl,dwdr,DNR,OSD cctv 80M IR IP66 Waterproof outdoor surveillance cheap cctv camera
Product Details
| Products Status | Stock | Ports | 16 | |
| Transmission Rate | 10/100Mbps | Function | POE | |
| Communication Mode | Full-Duplex | Certification | CE,FCC,ROHS | |
| Brand Name | CCDCAM | Model Number | EC-POE24 | |
| Place of Origin | China |
Product Description
Specifications
* 24 RJ45 Port Switch,16-port PoE support* IEEE 802.3af/at,Internal power supply
* Save up to 83% power with Green Technoloy
Pass Through Data Rates : PSE2416:24-Port 10/100 Mbps
LED : Power, 10/100, PoE
Power over Ethernet Output
Pin Assignment and Polarity: 1/2 (+), 3/6 (–)
Output Power Voltage: 52 Vdc
User Port Power: > 15.4Watts /350ma
Total Power: PSE2416/250W,
Input Power AC Input Voltage: 100 to 240 Vac
Requirements AC Input Current: 2A @ 100-240 Vac
AC Frequency: 50 to 60 Hz
Dimensions (W x D x H): 441 mm x 250 mm x 44mm
Weight : 4Kg
Indicators: System Indicator: AC Power (Green)
User Indicator: Channel Power
Connectors: Shielded RJ-45, EIA 568A and 568B
Environmental Conditions :
Operating Ambient Temperature: -10 to 45oC
Reliability MTBF: 296,000 hrs. @25oC
Thermal Rating 27 BTU/Hr (@240VAC)
Warranty 1-year
Regulatory IEEE 802.3af,
Compliance RoHS Compliant , CE
Safety Approvals EN 60950:2006
