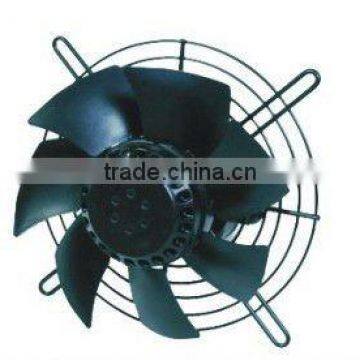

Axial Fan 220V AC 200*200*87mm
USD $15 - $30
/ Piece
100 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- shenzhen
- T/T
You May Like
-
Ac axial cooler fan 110/120v 220*60mm
-
Positive and negative rotation Fan 220/240V AC Fans 172x51mm
-
AC 110/120V 60*60*30mm 2.5 inch Cooling Radiator fan
-
60*420mm AC Tangential Cross Flow Fan / 17 INCH Cooling Fan 220v/240v
-
High Speed 110/120V AC Tangential Ventilation Fan 65*360mm
-
5.5 inch ac fan 140x140x45mm
Product Details
| Electric Current Type | AC | Mounting | Other, cooling fan | |
| Blade Material | Stainless Steel | Place of Origin | Guangdong, China | |
| Brand Name | OEM/ODM | Model Number | M200FZA2H-7F | |
| Voltage | 110V/120V,220V/240V/380/420v | Power | 80W | |
| Air Volume | 618/760CFM | Speed | 2500/2850RPM | |
| Certification | CE, ROHS |
Product Description
Axial Fan 220V AC 200*200*87mm
General Specifications:
Frame | Aluminum Alloy |
Impeller | Iron leaf |
Bearing type | Dual Ball Bearing |
Protection | Impedance Protected |
Expected Life:
Ball Bearing 50,000 hours(40°c)
Allowable Ambient Temperature Range
1.-20°c~+70°c (Operating)
2.-40°c~+70°c (Storage)
Specifications:
| Size(mm) | Model | Beaing system | Rated voltage (v) | Freq(HZ) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Air Flow(CFM) | Air Flow (m3/mim) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
| 200*200*87mm | M200FZA1H-7F | Ball | 110/120 | 50/60 | 0.74 | 80 | 2500/2850 | 618/760 | 17.5/21.5 | 63.0/77.5 | 63/66 | 1600 |
| M200FZA2H-7F | Ball | 220/240 | 50/60 | 0.40 | 80 | 2500/2850 | 618/760 | 17.5/21.5 | 63.0/77.5 | 63/66 | 1600 | |
| M200FZA3H-7F | Ball | 380/420 | 50/60 | 0.32 | 80 | 2500/2850 | 618/760 | 17.5/21.5 | 63.0/77.5 | 63/66 | 1600 | |
| M200FZA3H-7F-3ø | Ball | 380/420 | 50/60 | 0.28 | 80 | 2500/2850 | 618/760 | 17.5/21.5 | 63.0/77.5 | 63/66 | 1600 |
