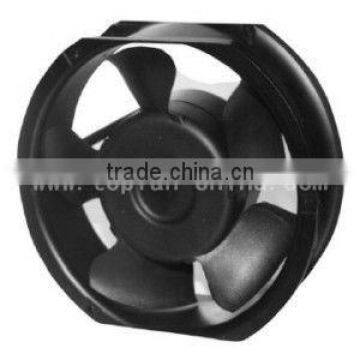

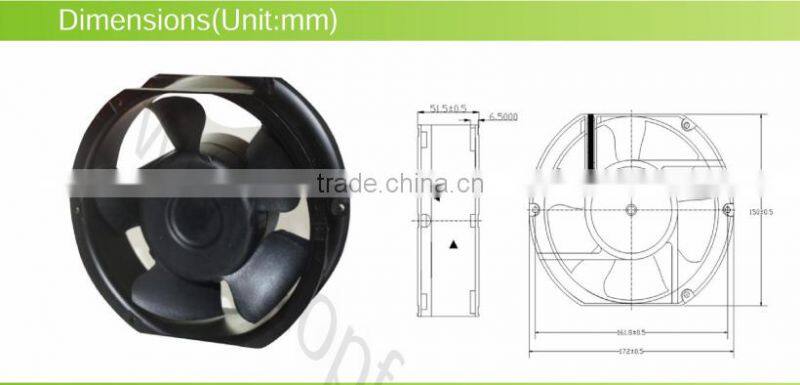

Waterproof Fan Ip66 or Ip55 Cooling Fan 172*150*51mm With CE ROHS
US$ 8 - 15
/ Piece
1000 Pieces(Min. Order)
- SHENZHEN/HONGKONG
- Credit Card
You May Like
-
220v/240v 172mm Waterproof Fan Ip66 or Ip55 / High Temperature
-
High Temperature 6.7 Inch AC Fan For Machinery
-
6inch 220v High Temperature ac Fan 150mm
-
High Temperature AC Axial Flow Fans 150x150x51mm
-
120 x 120 x 25mm 110v ac Motor Fan /High Temperature 135
-
6I Nch or 7 Inch Inch Heavy Duty Industrial Exhaust Fan 172*150*38mm AC Axial Fan
Product Details
| Electric Current Type | AC | Mounting | Other, according to your demands | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | Topfan/OEM/ODM | Model Number | MX17251ABH11 | |
| Voltage | 110/120V | Power | 30/37W | |
| Air Volume | 200/187CFM | Speed | 2500/2100RPM | |
| Certification | CE, ROHS, UL | After-sales Service Provided | No overseas service provided |
Product Description
AC Industrial cooling fan 172*150*51mm with CE ROHS
General Specification:
| Bearing Type: | Ball Bearing | |||||
| Function: | IP55,IP58,IP66,IP68, Waterproof and dustproof | |||||
| Frame and Impeller: | 94V-0 fireproof, metal frame and plastic impeller | |||||
| Voltage: | AC110V 120V 220V 240V | |||||
| Temperature range: | -40℃ to +125℃ | |||||
| Expected Life: | <80000 hours |
Specifications:

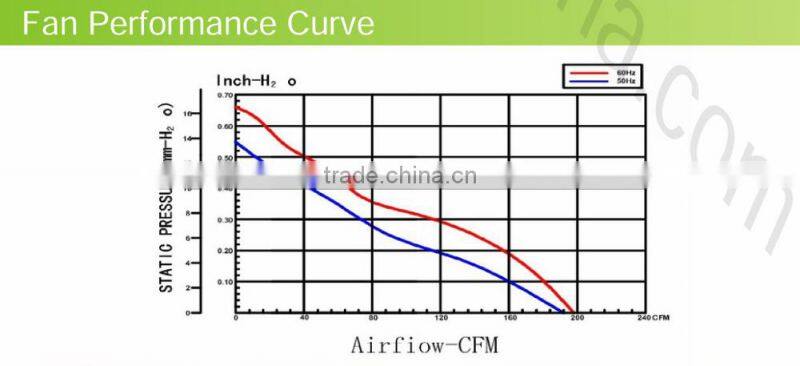

| Model | Bearing Type | Rated Voltage | Freq. | Current Amp | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise Level | Weight | |
| Part No. | S B Y | VDC | Hz | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | dB-A | g |
| MX17251ABH11 | B | 110/120 | 50/60 | 0.44/0.46 | 30/37 | 2500/2100 | 200/187 | 5.4/6.0 | 0.55/0.5 | 53/48 | 900 |
| MX17251ABH22 | B | 220/240 | 50/60 | 0.26/0.28 | 44/35 | 2500/2200 | 200/190 | 5.4/6.0 | 0.55/0.5 | 43/48 | 900 |
| MX17251ABH38 | B | 380/400 | 50/60 | 0.15/0.13 | 38/35 | 2500/2200 | 200/190 | 5.4/6.0 | 0.55/0.5 | 53/48 | 900 |
