350mm 380V AC Industrial Extractor Fan for Equipment
US$ 10 - 20
/ Piece
500 Pieces(Min. Order)
- shenzhen
You May Like
-
350mm AC Industrial Equipment Cooling Fans / 13.8 Inch 220V Radiator Cooler Fan
-
315mm Round 220V - 380V AC Industrial Extractor Fan / 12.4 INCH AC Fan
-
Industrial Cooling Fan 220V 80MMx80MMx25MM
-
150mm AC Axial Flow Fans 150x150x51mm
-
High Speed Iron Industrial AC Motor 170*150*55MM 220v/240v
-
Equipment Cooling Fan 280mm AC Motor / 11 Inch 220V Motor Cooling Fan
Product Details
| Electric Current Type | AC | Mounting | Other, cooling fan | |
| Blade Material | Stainless Steel | Place of Origin | Guangdong, China | |
| Brand Name | MX/OEM/ODM | Model Number | MX3505ABM22 | |
| Voltage | 220/240v,380V, 220V - 380V | Power | 190W | |
| Air Volume | 2860m³/h | Speed | 1500R/Min, 1500R/Min | |
| Certification | UL, CE, Other, UL ,CE, RoHS, TUV |
Product Description
350mm 380V AC Industrial Extractor Fan for Equipment
Applications:
Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.
Description:
- 220V , 380V AC FAN, used for cooling and ventilation.
- Frame: Aluminum ADC-12, Painted Black
- Blade:metal
- Stator& Rotor: Silicon steel
- Magnet Wires: Copper 1 PEW
- Bobbin: PA-66 UL 94 V-0
- Bearing Type: Ball Bearing
Environmental Specification:
Item | Specification/Condition | |
01 | Operating Temp. Range | Temperature:-20℃~75℃ |
02 | Storage Temperature | Temperature:-30℃~140℃ |
03 | Life | 50000H |
Main Materials/Parts Specification:
(Item | Specification | |
01 | Blade | (PBT) PBT+15%GF |
02 | Frame | Aluminum ADC-12,Painted Black |
03 | Stator& Rotor | Silicon stee |
04 | Magnet Wires | Copper 2 UEW |
05 | Bobbin | PA-66 UL 94 V-0 |

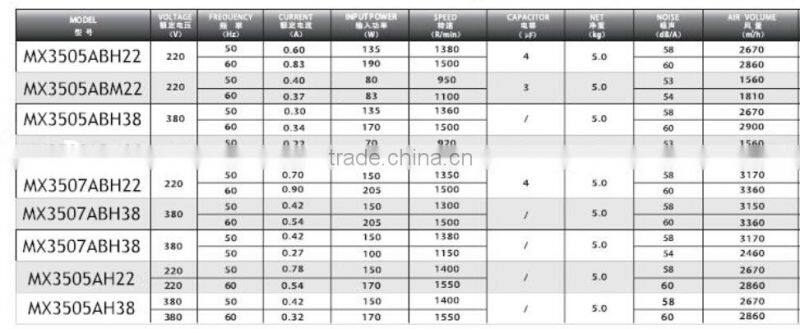

Model:

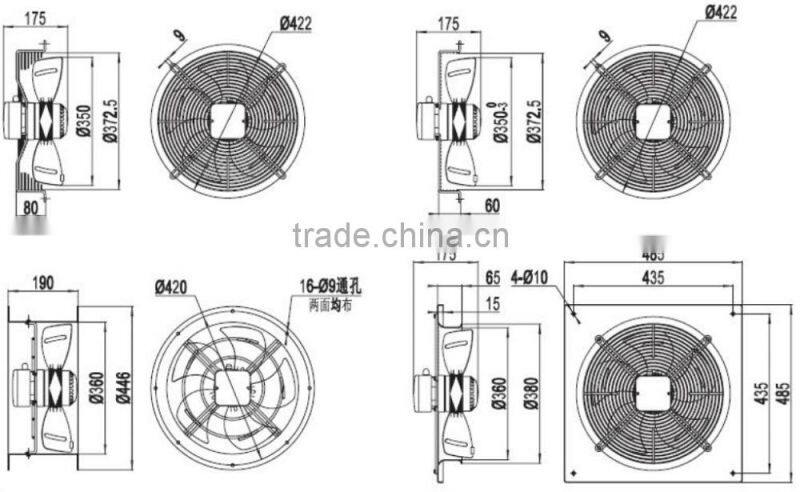

Dimension:
More detail information, please contact with me as soon as possible ! Thanks.
