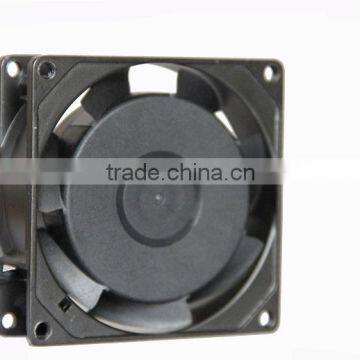

80MM AC AXIAL COOLING FAN 80*80*25MM Industrial Exhaust Fan
- SHENZHEN/HONGKONG
- Credit Card
You May Like
Product Details
| Electric Current Type | AC | Mounting | Other, according to your needs | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | Topfan/OEM/ODM | Model Number | MX8025ABH11 | |
| Voltage | 110V | Power | 11W | |
| Air Volume | 22CFM | Speed | 2400RPM | |
| Certification | CE, ROHS, UL | After-sales Service Provided | No overseas service provided |
Product Description
80MM AC AXIAL COOLING FAN 80*80*25MM with CE ROHS Certificated
Expected Life:
1.Ball Bearing 50,000 hours(40centigrade)
2.Sleeve Bearing 30,000 hours(40centigrade)
Allowable Ambient Temperature Range
1.-10c~+70c (Operating)
2.-40c~+70c (Storage)
3.(non-condensing environment)
| Model | Bearing Type | Rated Voltage | Freq. | Current Amp | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise Level | Weight | |
| Part No. | S B Y | VDC | Hz | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | dB-A | g |
| MX8025ABH11 | B.S | 110/220 | 50/60 | 0.14/0.12 | 11 | 2400/2900 | 22/29 | 0.45/0.53 | 0.08/0.13 | 24/29 | 230 |
| MX8025ABH22 | B.S | 110/220 | 50/60 | 0.09/0.05 | 18 | 2400/2900 | 22/29 | 0.45/0.53 | 0.08/0.13 | 24/29 | 230 |
