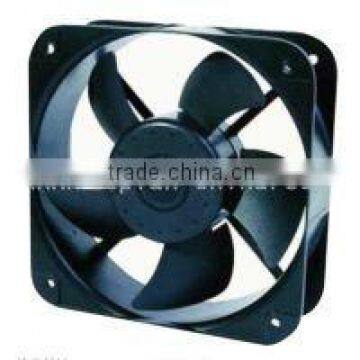

AC220V Fan High-temperture Equipment Cooler Fan 200*200*60mm
- SHENZHEN
- Credit Card
You May Like
-
AC 110V Housing Centrifugal Blower Fan Motor Diameter 150MM
-
230v EC Fan M075AA2H / WaterProof IP55 IP58 IP68 Fan
-
High Efficiency EC Axial Brushless Case Cooler Fans 80*80*38mm
-
220V 3.15inch AC Axial Cooling System Fan
-
8 Inch AC Fan Motor Waterproof Fan Ip66 or Ip55 (200*200*60mm)
-
3'' ac Fan 220v 80*80*25mm Waterproof Fan Ip66 or Ip55
Product Details
| Electric Current Type | AC | Mounting | Other, according to your demands | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | Topfan/OEM/ODM | Model Number | MX20060ABH22 | |
| Voltage | 220V | Power | 60W | |
| Air Volume | 420/490CFM | Speed | 2500/2800RPM | |
| Certification | CE, UL | After-sales Service Provided | No overseas service provided |
Product Description
AC220V Fan high-temperture equipment cooler fan 200*200*60mm
General Specifications
| Bearing Type: | Ball Bearing | |||||
| Function: | IP55,IP58,IP66,IP68, Waterproof and dustproof | |||||
| Frame and Impeller: | 94V-0 fireproof, metal frame and plastic impeller | |||||
| Voltage: | AC110V 120V 220V 240V | |||||
| Temperature range: | -40℃ to +125℃ | |||||
| Expected Life: | <80000 hours | |||||
Specifications
| Model | Bearing Type | Rated Voltage | Freq. | Current Amp | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise Level | Weight | |
| Part No. | S B Y | VDC | Hz | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | dB-A | g |
| MX20060ABH11 | B | 110/120 | 50/60 | 0.4 | 60 | 2500/2800 | 420/490 | 13.0/14.9 | 0.6/0.72 | 60/65 | 1600 |
| MX20060ABH22 | B | 220/240 | 50/60 | 0.3 | 60 | 2500/2800 | 420/490 | 13.0/14.9 | 0.6/0.72 | 60/65 | 1600 |
,,Shipment
1. FOB Shenzhen or HongKong (mass production)
2. DHL,UPS,FEDEX,TNT or any other international express (sample or small quantity)
<<<More details can be discussed.>>>
,,Payment
T/T and Western Union
1. The payment for the high value sample will be charged.
2. The payment for the low value sample is free, but the freight should be paid by you.
,,Delivery Time
Generally, 500~1000pics 10 days after confirming the PI
,,Our Company
Alibaba: http://topfan-china.en.china.cn
Shenzhen Topfan-China Development Technology Co., Ltd, founded in 1996 in Shenzhen China, is professional manufacturer on dc brushless fans and ac fans. Products are ISO9000, UL, CE, RoHS and TUV certificated and good sellers both at home and abroad, including Europe, North America, Asia(Korea and India) etc. The products, including brushless fans, cross flow fans, blower fans, centrifugal fans, dc brushless motor, shades pole and RC ac fans etc, are being widely used in the information technology, network communications as well as industrial production equipment, medical equipment, home appliances and others.
Based on mutual benefit and development, we'll make our biggest efforts to do everything better for our customers.
Contact Us
- Shenzhen Topfan Technology Development Co., Ltd.
- Contact nametopfan- xiangzhi du Chat Now
- Phone86-0755-26070926
- Address23A2, Suhao Building, Nanxin Road, Nanshan District, Shenzhen, China, Shenzhen, Guangdong
