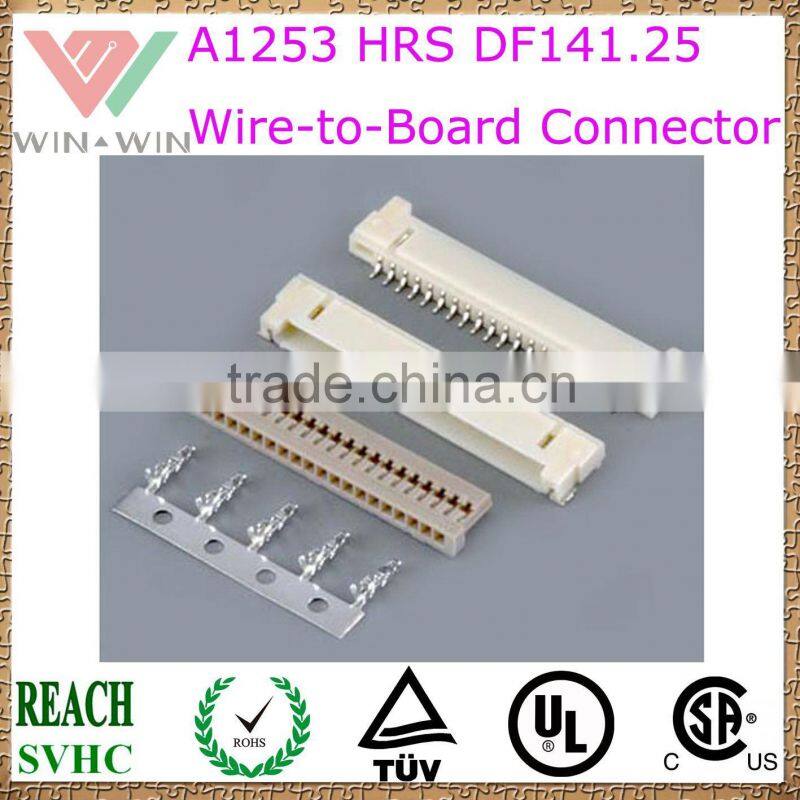

1.25mm Pitch A1253 HRS DF14 1.25 Electronic Wire to Board Connector

Specifications

1.25mm pitch A1253 HRS DF14 1.25 Electronic Wire to Board Connector

1. Great 1.25mm pitch A1253 HRS DF14 1.25 Electronic Wire to Board Connector’s Features:

*Easy contact insertion:

Contacts can be inserted into the housing easily and smoothly.

*Connections:

Connectors can be used for wire-to-board connection very easily.

2. Great A1253 HRS DF14 1.25 Electronic Wire to Board Connector’s specifications:

*Current rating: 1A AC DC

*Voltage rating: 150V AC, DC

*Temperature range: -25°C ~ +85°C

*Contact resistance: ≤30m Ω

*Insulation resistance: ≥500MΩ

*Withstanding Voltage: 500V AC/min

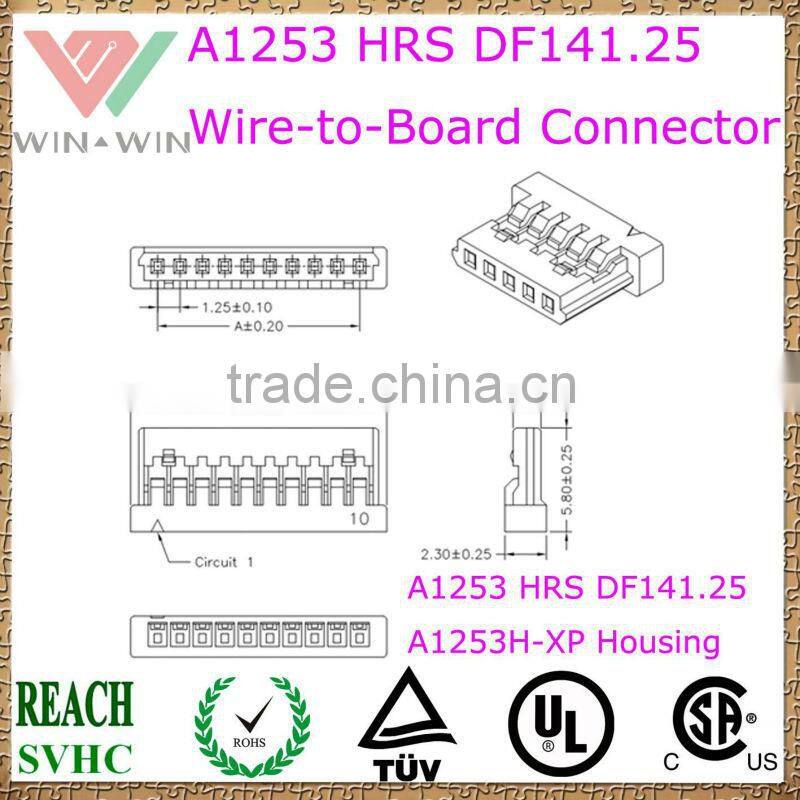

3. 1.25mm pitch Electronic wire to board connector A1253 HRS DF14 1.25 A1253H-XP housing spec drawing for your nice reference:

*Circuits: 2P-15P 20P 25P 30P

*Insulator Material: Nylon66, UL94V-0

*Packaging: 1000PCS/Bag

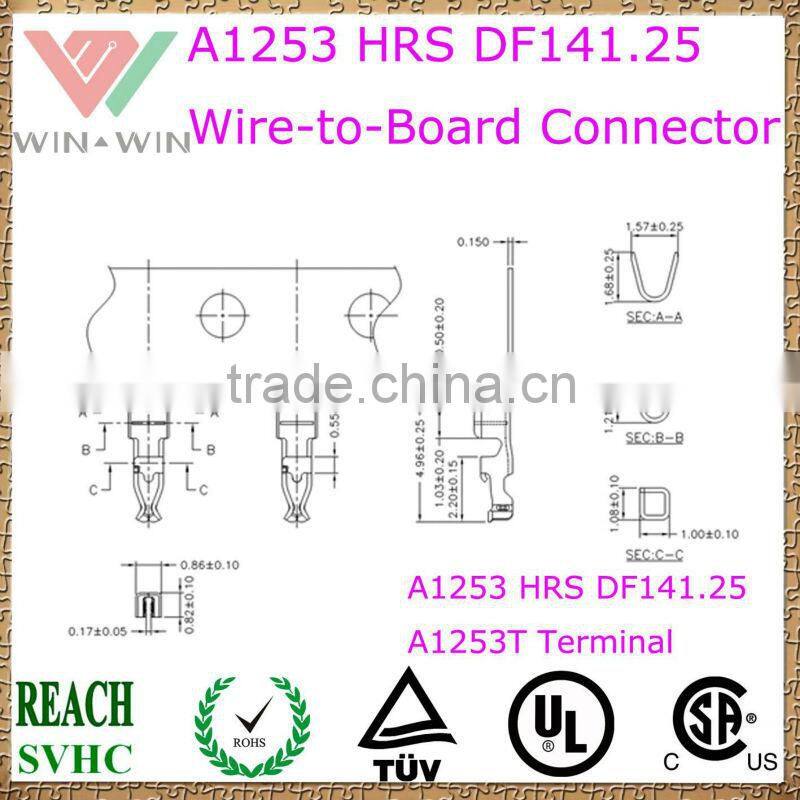

4. A1253 HRS DF14 1.25 A1253T Terminal spec drawing for your nice reference:

*Contact Material and Finish: Phosphor Bronze and Tin/Gold Plated

*Applicable wire: AWG#32 to #26 (OD: 1.0mm)

*Packaging: 15,000PCS/Reel

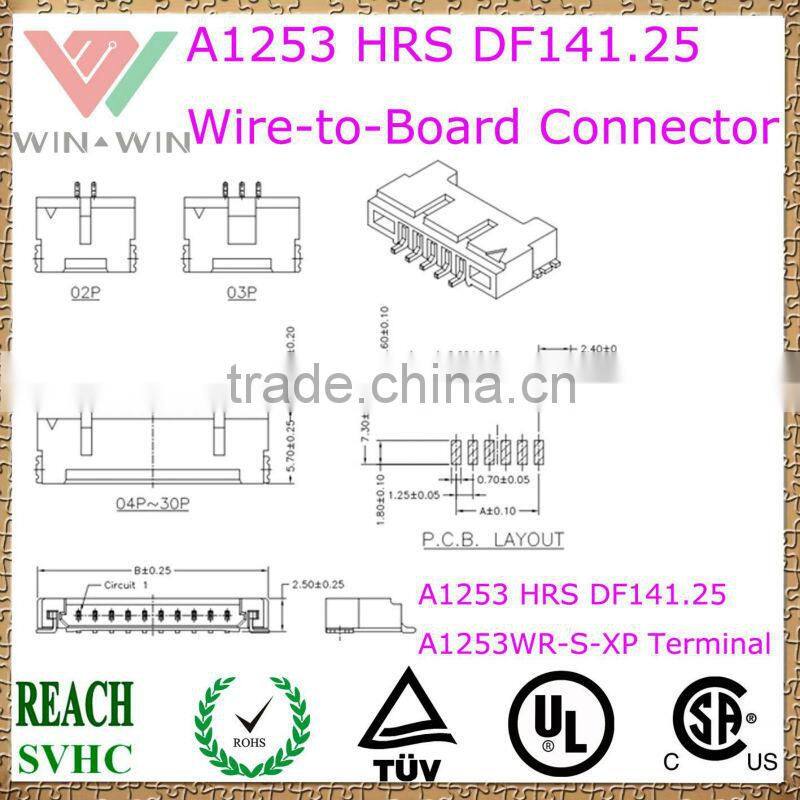

5. A1253 HRS DF14 1.25 A1253WR-S-XP Terminal spec drawing for your nice reference:

*Circuits: 2P-15P,20P,25P,30P

*Insulator Material: LCP, UL94V-0

*Contact Material and Finish: Brass and Tin / Gold plated

*Packaging: 1000PCS/Bag

6. Great A1253 HRS DF14 1.25 Electronic Wire to Board connector’s application:

A1253 HRS DF14 1.25mm pitch electronic Wire to Board connectors are reliable wire-to-board connectors, used for such electrical and electronic equipment as home appliances, vending machines and office machines etc.
