2.54mm Pitch A2542 MX2.54 Electronic Wire to Board Connector

Specifications

2.54mm Pitch A2542 MX2.54 Electronic Wire to Board Connector

1. Great 2.54mm Pitch A2542 MX2.54 Electronic Wire to Board Connector’s Features:

*Easy contact insertion:

Contacts can be inserted into the housing easily and smoothly.

*Connections:

Connectors can be used for wire-to-board connection very easily.

2. Great A2542 MX2.54 Electronic Wire to Board Connector’s specifications:

*Current rating: 4A AC DC

*Voltage rating: 250V AC, DC

*Temperature range: -25°C ~ +85°C

*Contact resistance: ≤20m Ω

*Insulation resistance: ≥1000MΩ

*Withstanding Voltage: 1000V AC/min

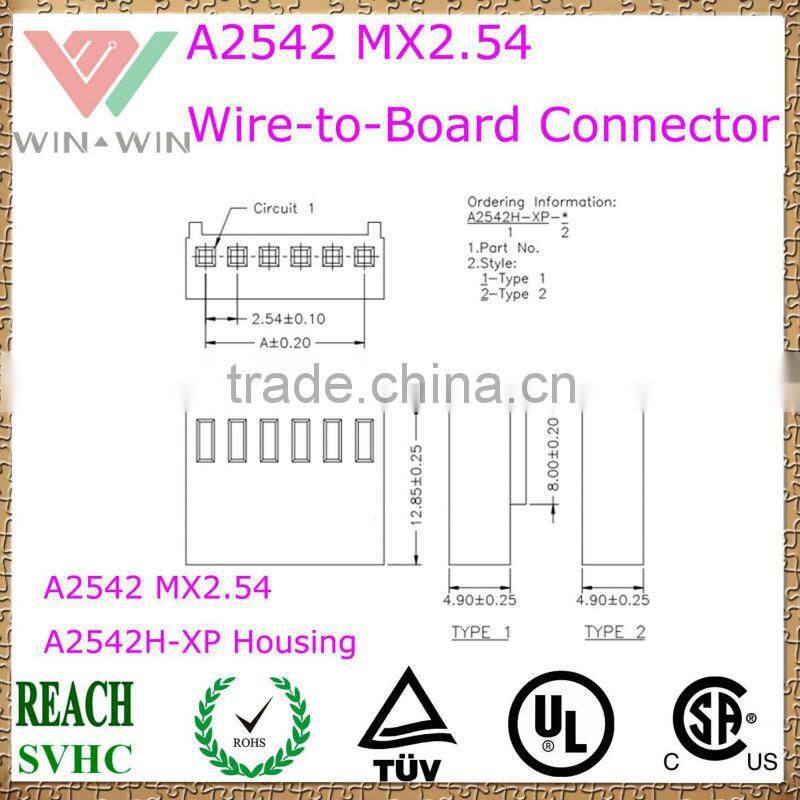

3. 2.54mm pitch Electronic wire to board connector A2542 MX2.54 A2542H-XP housing spec drawing for your nice reference:

*Circuits: 2P-20P

*Insulator Material: Nylon66 UL94V-2

*Packaging: 1000PCS/Bag

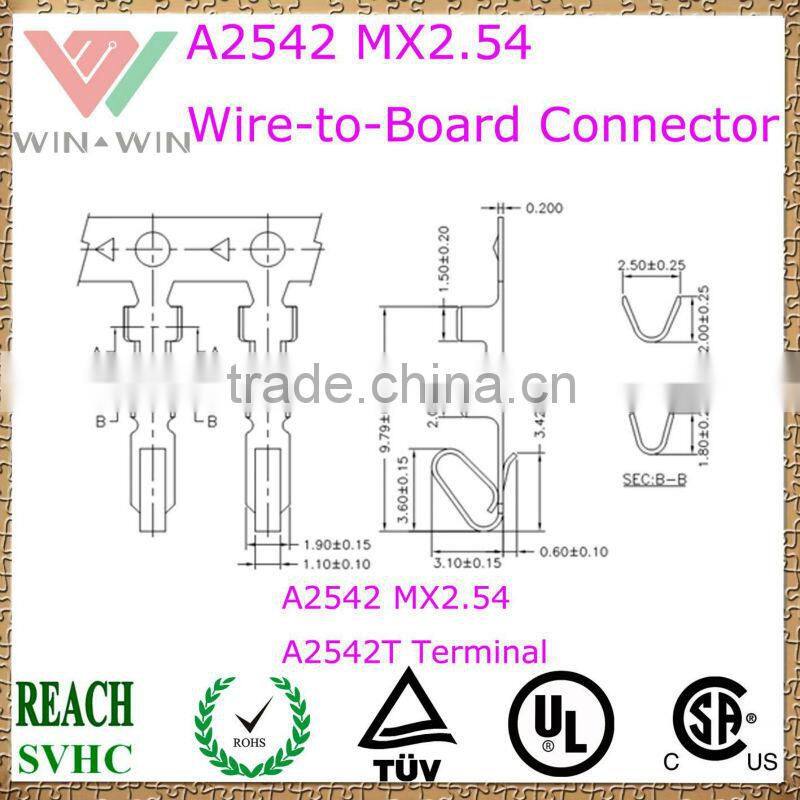

4. A2542 MX2.54 A2542T Terminal spec drawing for your nice reference:

*Contact Material and Finish: Brass and Tin Plated

*Applicable wire: AWG#28 to #24 (OD: 1.55mm)

*Packaging: 10,000PCS/Reel

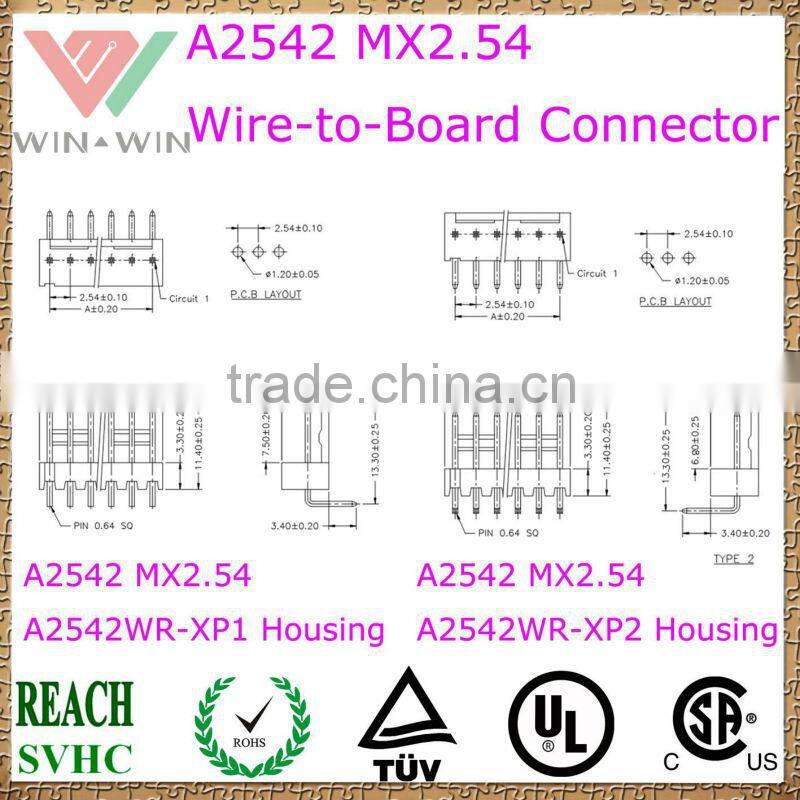

5. 2.54mm pitch Electronic wire to board connector A2542 MX2.54 A2542WV-XP & A2542WR-XP1/2 Housing spec drawing for your nice reference:

*Circuits: 2P-20P

*Insulator Material: Nylon66 UL94V-2

*Contact Material: Brass and Tin Plated

*Packaging: 1000PCS/Bag

6. Great A2542 MX2.54 Electronic Wire to Board connector’s application:

A2542 MX2.54mm pitch electronic Wire to Board connectors are reliable wire-to-board connectors, used for such electrical and electronic equipment as home appliances, vending machines and office machines etc.
