2.0mm Pitch A2100 JAE2.0 Electronic Wire to Board Connector

Specifications

2.0mm Pitch A2100 JAE2.0 Electronic Wire to Board Connector

1. Great 2.0mm Pitch A2100 JAE2.0 Electronic Wire to Board Connector’s Features:

*Easy contact insertion:

Contacts can be inserted into the housing easily and smoothly.

*Connections:

Connectors can be used for wire-to-board connection very easily.

2. Great A2100 JAE2.0 Electronic Wire to Board Connector’s specifications:

*Current rating: 3A AC DC

*Voltage rating: 300V AC, DC

*Temperature range: -25°C ~ +85°C

*Contact resistance: ≤20m Ω

*Insulation resistance: ≥100MΩ

*Withstanding Voltage: 1000V AC/min

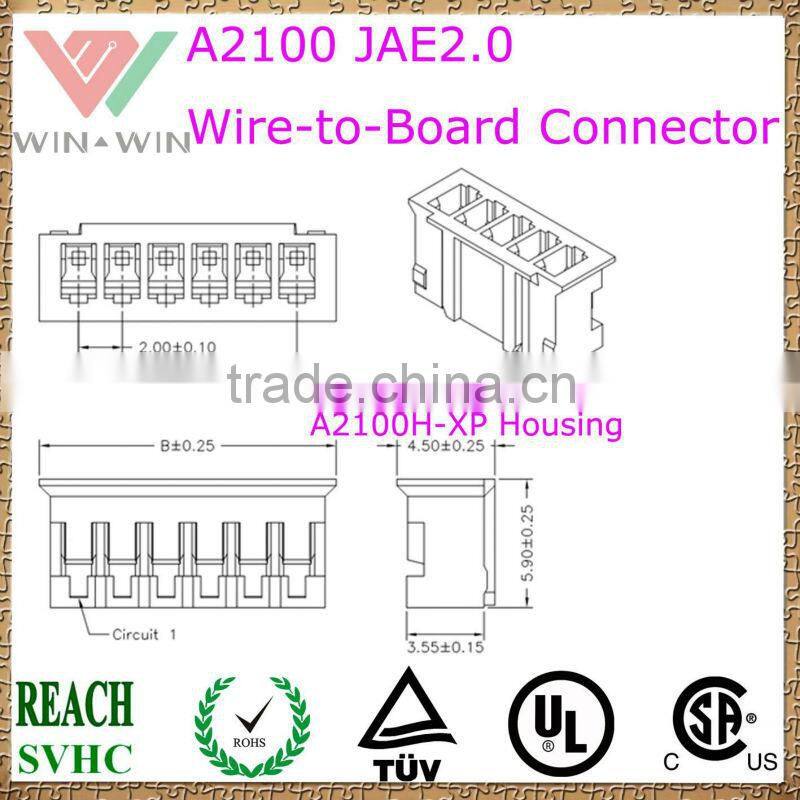

3. 2.0mm pitch Electronic wire to board connector A2100 JAE2.0 A2100H-XP housing spec drawing for your nice reference:

*Circuits: 2P-15P

*Insulator Material: Nylon66, UL94V-0

*Packaging: 1000PCS/Bag

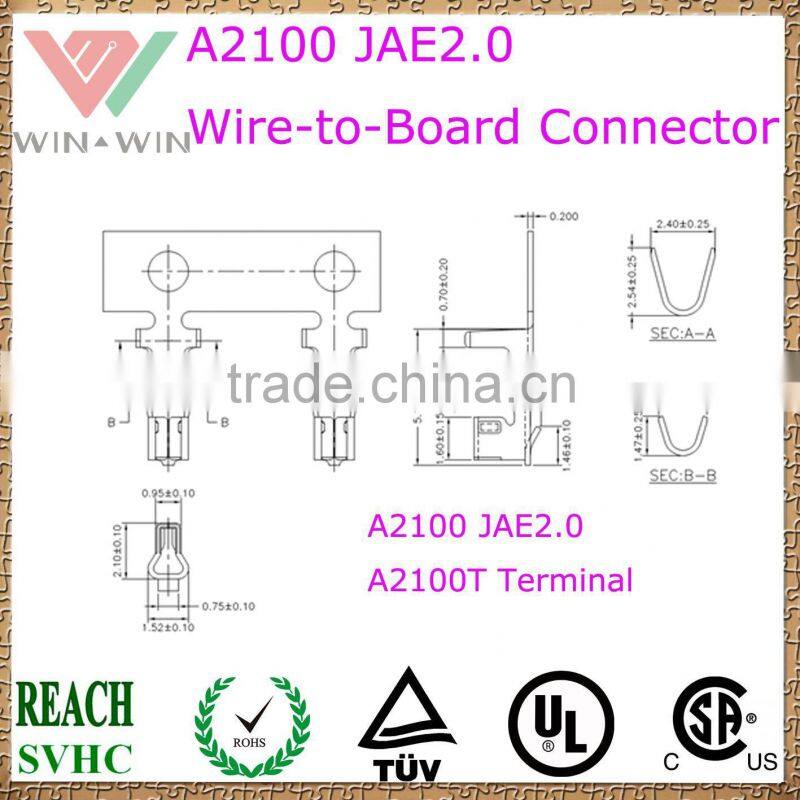

4. A2100 JAE2.0 A2100T Terminal spec drawing for your nice reference:

*Contact Material and Finish: Phosphor Bronze and Tin Plated

*Applicable wire: AWG#28 to #24 (OD: 1.5mm)

*Packaging: 10,000PCS/Reel

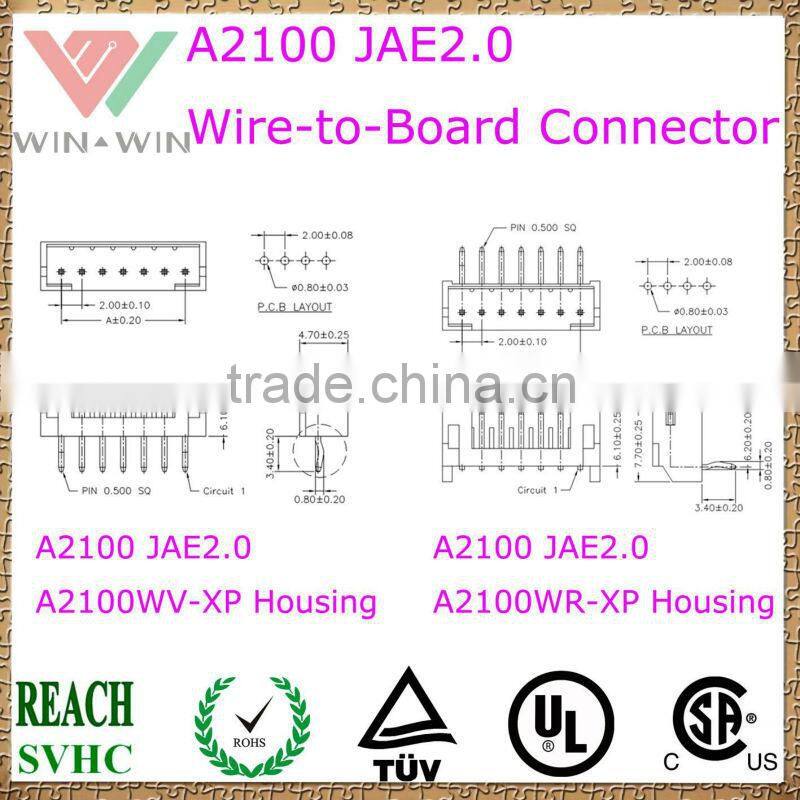

5. 2.0mm pitch Electronic wire to board connector A2100 JAE2.0 A2100WV-XP & A2100WR-XP Housing spec drawing for your nice reference:

*Circuits: 2P-15P

*Insulator Material: Nylon66, UL94V-0

*Contact Material: Brass and Tin Plated

*Packaging: 1000PCS/Bag

6. Great A2100 JAE2.0 Electronic Wire to Board connector’s application:

A2100 JAE 2.0mm pitch electronic Wire to Board connectors are reliable wire-to-board connectors, used for such electrical and electronic equipment as home appliances, vending machines and office machines etc.
