2.5mm Pitch A2506 MX5264 Electronic Wire to Board Connector

Specifications

2.5mm Pitch A2506 MX5264 Electronic Wire to Board Connector

1. Great 2.5mm Pitch A2506 MX5264 Electronic Wire to Board Connector’s Features:

*Easy contact insertion:

Contacts can be inserted into the housing easily and smoothly.

*Connections:

Connectors can be used for wire-to-board connection very easily.

2. Great A2506 MX5264 Electronic Wire to Board Connector’s specifications:

*Current rating: 3A AC DC

*Voltage rating: 250V AC, DC

*Temperature range: -25°C ~ +85°C

*Contact resistance: ≤20m Ω

*Insulation resistance: ≥1000MΩ

*Withstanding Voltage: 1000V AC/min

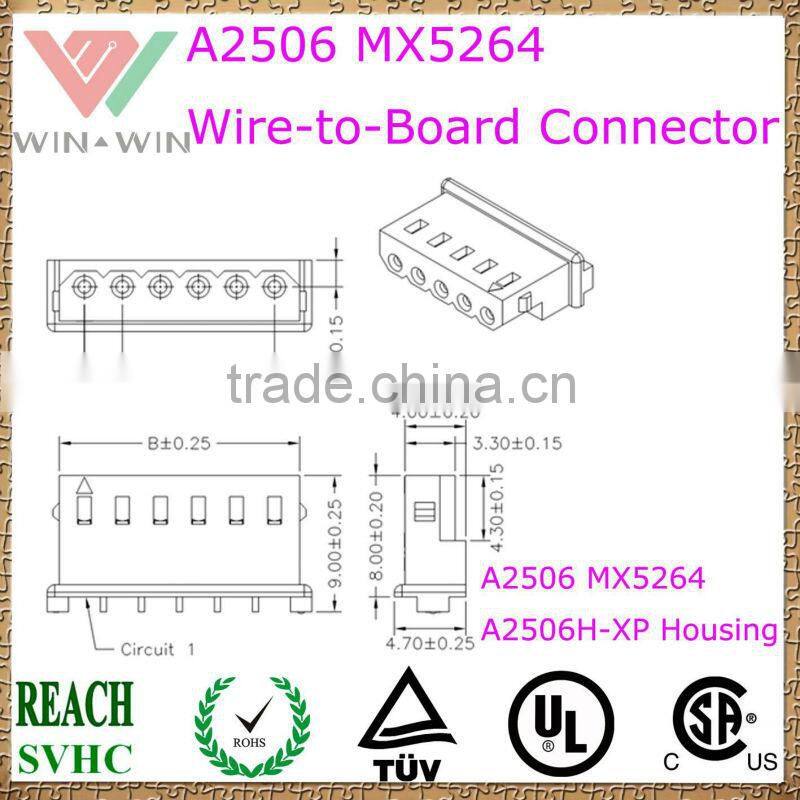

3. 2.5mm pitch Electronic wire to board connector A2506 MX5264 A2506H-XP housing spec drawing for your nice reference:

*Circuits: 2P-16P

*Insulator Material: Nylon66, UL94V-0

*Packaging: 1000PCS/Bag

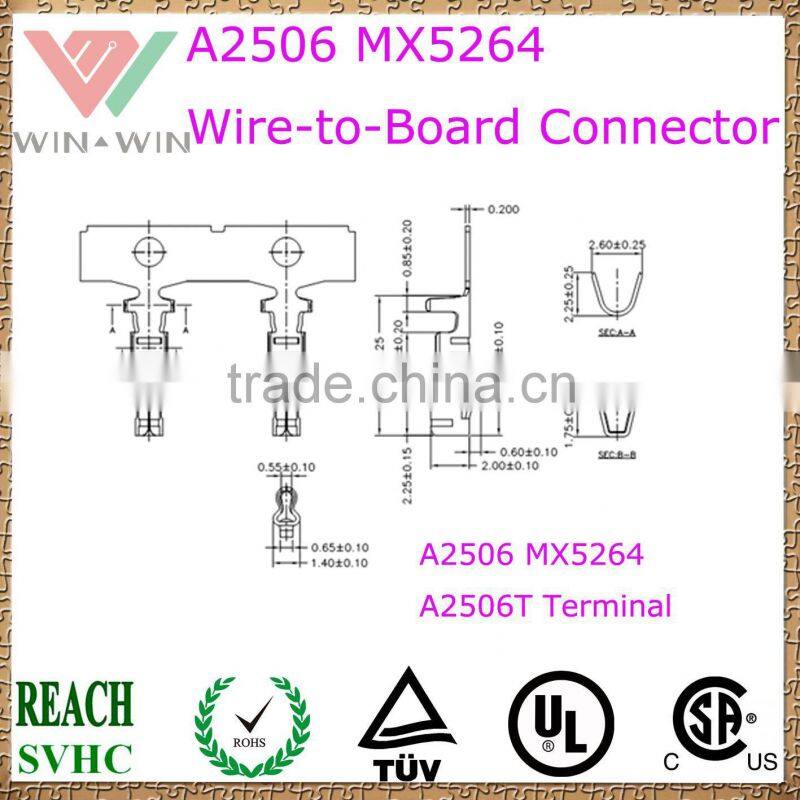

4. A2506 MX5264 A2501T Terminal spec drawing for your nice reference:

*Contact Material and Finish: Phosphor Bronze and Tin Plated

*Applicable wire: AWG#28 to #22 (OD: 1.90mm)

*Packaging: 10,000PCS/Reel

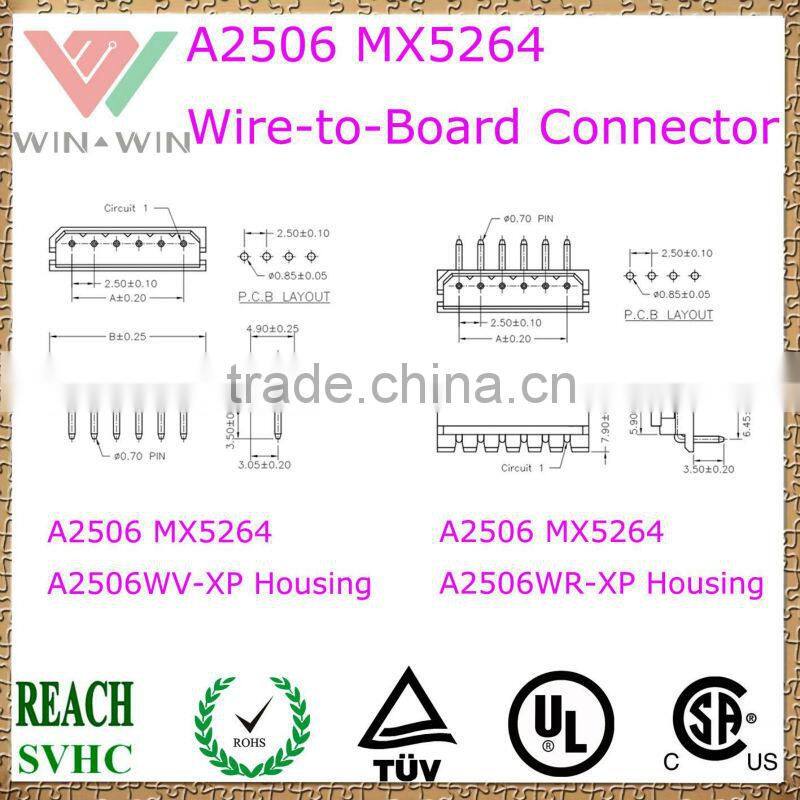

5. 2.5mm pitch Electronic wire to board connector A2506 MX5264 A2506WV-XP & A2506WR-XP Housing spec drawing for your nice reference:

*Circuits: 2P-16P

*Insulator Material: Nylon66, UL94V-0

*Contact Material: Brass and Tin Plated

*Packaging: 1000PCS/Bag

6. Great A2506 MX5264 Electronic Wire to Board connector’s application:

A2506 MX5264 2.5mm pitch electronic Wire to Board connectors are reliable wire-to-board connectors, used for such electrical and electronic equipment as home appliances, vending machines and office machines etc.

7. ***Flexible MOQ Of the great electronic Wire-to-Board Connector***

We'd like to grow with our partners. And long term relation is we expect. We totally understand that the clients need to order the ph connector, PH JST Connector, AMP Connector, HRS Connector, JAE Connector, Molex Connector, Sur Connector & Piercing connector with both Wire-to-Board connectors, Wire-to-Wire Connector & Board-to-Board connectors for replacement in a small quantity at the beginning, especially for the terminals & housings connectors.

To show our sincerity, we can accept small order in a small quantity for your evaluation. And there are great discount for big orders definitely.

8. ***Competitive Price and Promptly Delivery. ***

With good and stable relationship with the upstream suppliers, the capability of design and made the mold by ourselves, and the skilled & experienced workers, it make sure that we can provide the competitive price and finish the orders on time for the clients.
