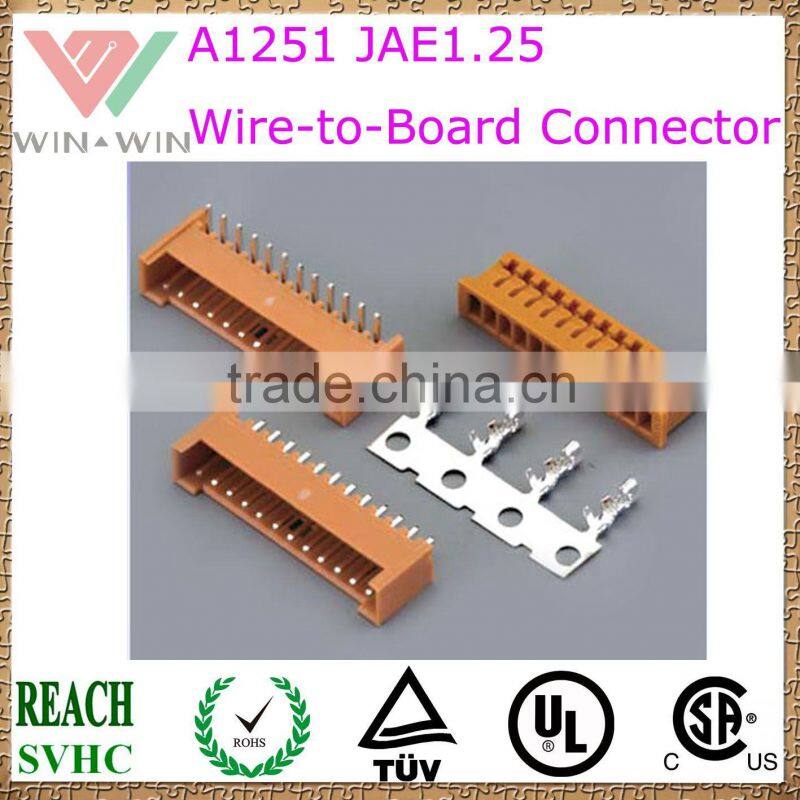

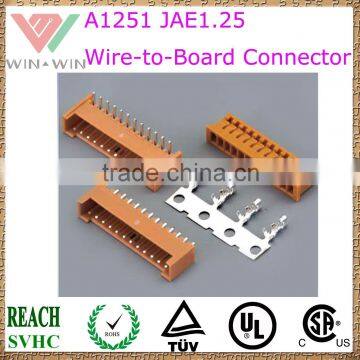

1.25mm Pitch A1251 JAE1.25 Electronic Wire to Board Connector

Specifications

1.25mm pitch A1251 JAE1.25 Electronic Wire to Board Connector

1. Great 1.25mm pitch A1251 JAE1.25 Electronic Wire to Board Connector’s Features:

*Easy contact insertion:

Contacts can be inserted into the housing easily and smoothly.

*Connections:

Connectors can be used for wire-to-board connection very easily.

2. Great A1251 JAE1.25 Electronic Wire to Board Connector’s specifications:

*Current rating: 1A AC DC

*Voltage rating: 200V AC, DC

*Temperature range: -25°C ~ +85°C

*Contact resistance: ≤20m Ω

*Insulation resistance: ≥100MΩ

*Withstanding Voltage: 500V AC/min

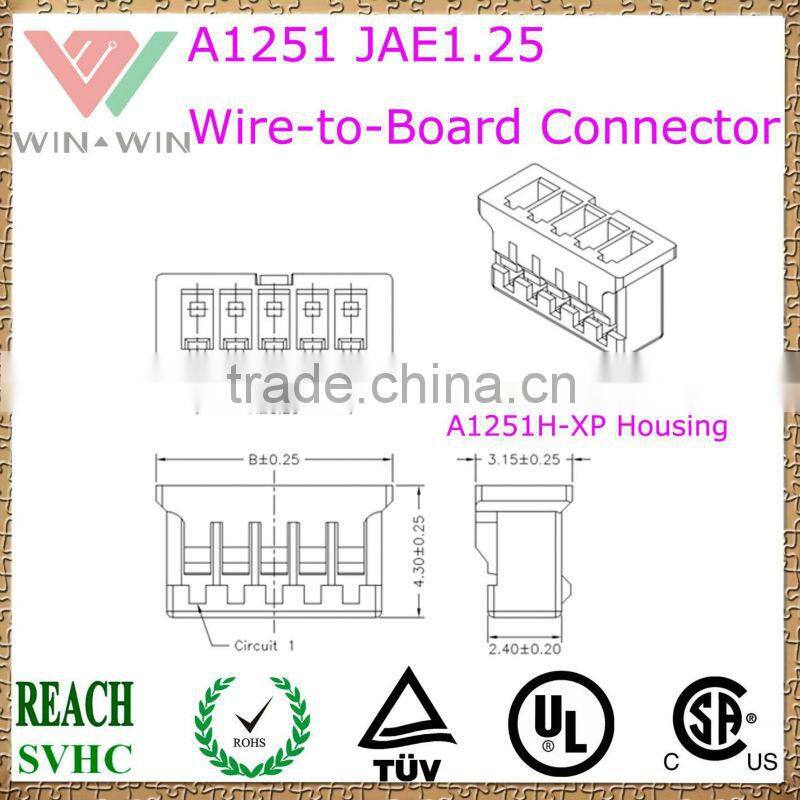

3. 1.25mm pitch Electronic wire to board connector A1251 JAE1.25 A1251H-XP housing spec drawing for your nice reference:

*Circuits:2-15P

*Insulator Material: Nylon66, UL94V-0

*Packaging: 1000PCS/Bag

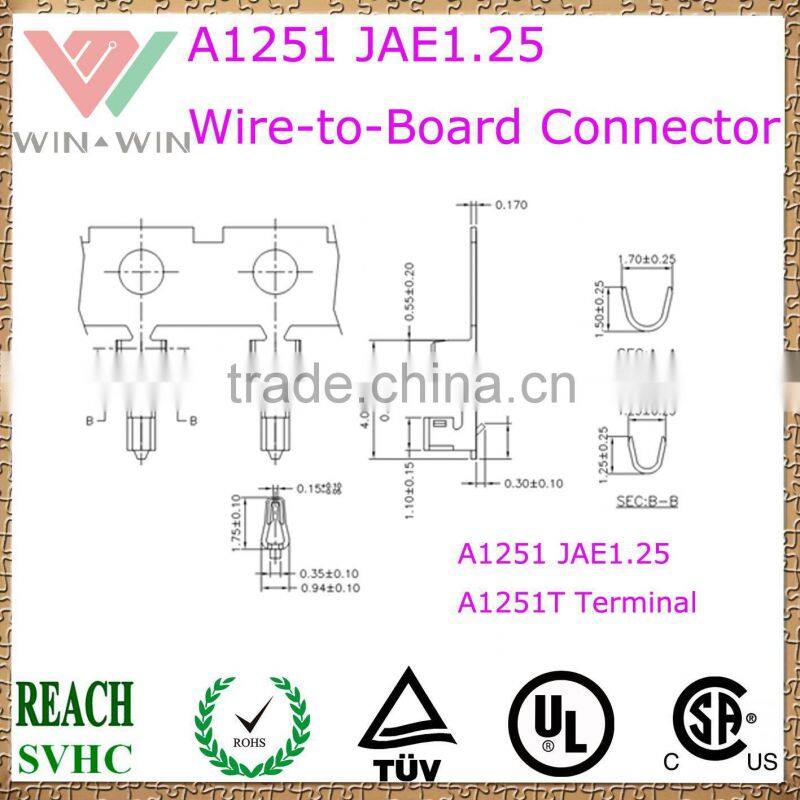

4. A1251 JAE1.25 A1251T Terminal spec drawing for your nice reference:

*Contact Material and Finish: Phosphor Bronze and Tin Plated

*Applicable wire: AWG#32 to #28 (OD: 1.0mm)

*Packaging: 15,000PCS/Reel

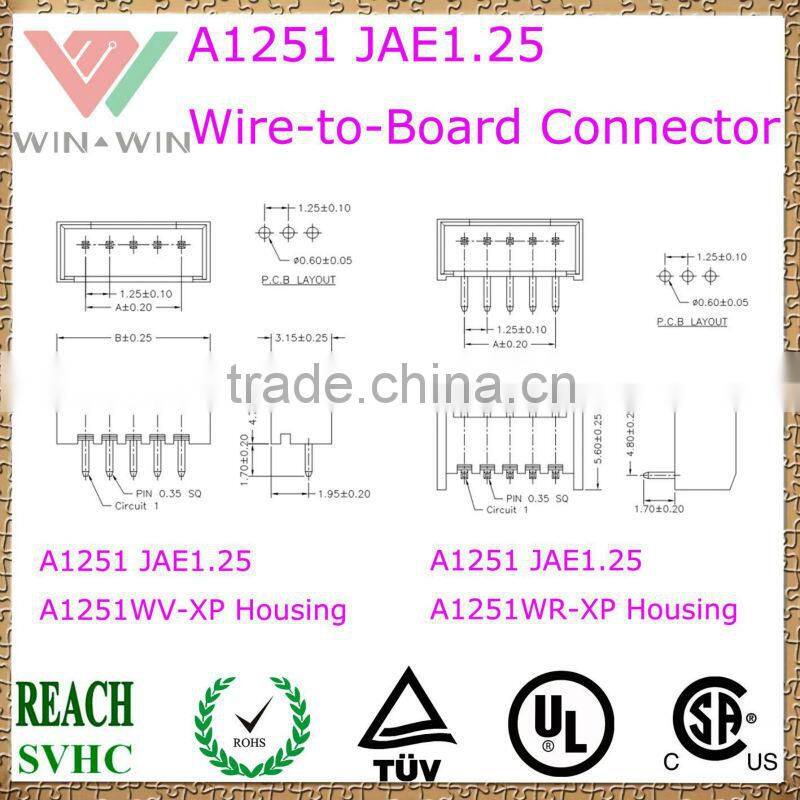

5. A1251 JAE1.25 A1251WV-XP &  A1251WR-XP Housing spec drawing for your nice reference:

*Circuits: 2-15P

*Insulator Material: Nylon66,UL94V-0

*Contact Material and Finish: Brass and Tin plated

*Packaging: 1000PCS/Bag

6. Great A1251 JAE1.25 Electronic Wire to Board connector’s application:

A1251 JAE1.25 1.25mm pitch electronic Wire to Board connectors are reliable wire-to-board connectors, used for such electrical and electronic equipment as home appliances, vending machines and office machines etc.
